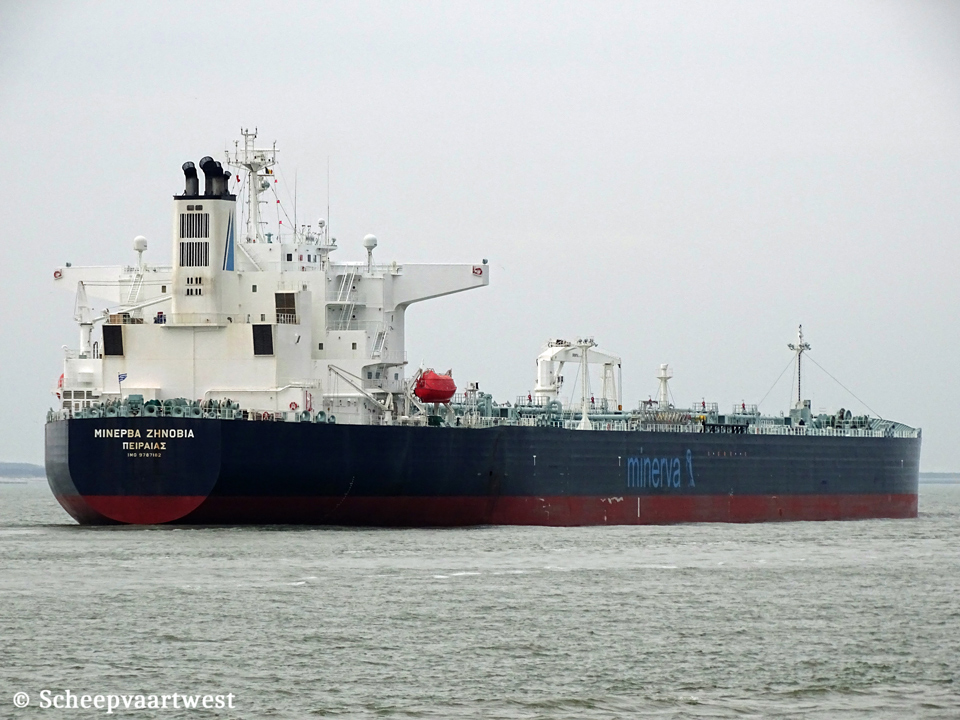

Westerschelde 08 February 2020 |
|
Name |
MINERVA ZENOBIA |
|
Hellenic name |
MINEPBA ZHNOBIA |
|
Type |
Crude oil tanker - Aframax |
|
IMO-number |
9787182 |
|
Call sign |
SVDA2 |
|
Flag |
Hellenic republic |
|
Port of registry |
Piraeus |
|
GT |
63.485 t Suez: 64.536,37 t |
|
DWT |
114.661 t |
|
NT |
35.025 t Suez: 60.143,19 t Panama: 52.149,15 t |
|
Displacement |
135.007 t |
|
Length |
250,00 m overall 241,00 m between perpendiculars |
|
Breadth |
44,00 m moulded |
|
Draught |
Summer: 14,84 m |
|
Freeboard |
6.417 mm |
|
Depth |
21,20 m moulded |
|
Speed |
Service: 14,4 knots Max: 15,6 knots |
|
Built |
2018 |
|
Keel laid |
18/12/2015 |
|
Launch date |
17/12/2017 |
|
Delivery date |
28/06/2018 |
|
Builder |
SSK Sasebo Heavy Industries Co.,Ltd. Tategami-Cho 1, Sasebo City, 857-8501 Japan |
|
Yard number |
845 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Continuous decks |
1 |
|
Main engine |
1x Mitsui/MAN-B&W 6G60ME-C9 - 2 stroke single acting 6 cylinder 600 x 2.790 mm combustion engine 11.730 kW / 15.948 hp at 88,0 rpm Manufacturer: Mitsui Engineering & Shipbuilding C Ltd - Japan |
|
Propellers |
1x Fixed pitch propeller - aft at 88,0 rpm Manufacturer: Nakashima Propeller Co., Ltd. |
|
Boilers |
2x Auxiliary boiler - 17,7 MPa Manufacturer: Mitsubishi Hitachi Power Systems, Ltd., Boiler 1x Exhaust Gas Economizer - 21,6 MPa Manufacturer: Osaka Boiler Mfg. Co., Ltd. |
|
Generators |
3x Daihatsu 6DE-20 - 4 stroke 6 cylinder 205 x 300 mm diesel engines each 1.090 kW connected with NTAKL-VE generators each 1.020 kW Manufacturer: Nishishiba Electric Co. |
|
Cargo tank capacity 98% |
125.068 m³ |
|
Slop tank capacity 98% |
5.262,6 m³ |
|
Number of pumps |
3x Cargo pumps 3.000 m³/h 1x Stripping pump 480 m³/h |
|
Tank capacities |
Fuel oil: 2.510,90 m³ m³ Diesel oil: 1.326,30 m³ Fresh water: 512,90 m³ Ballast: 41.982,60 m³ Lub oil: 180,70 m³ |
|
Lifting equipment |
1x Engine parts handling crane - SWL 4,5 t 1x Provision crane - SWL 0,9 t Manufacturer: Mansei Inc. 1x Engine room crane - SWL 4,5 t Manufacturer: Sekigahara Seisakusho Ltd. 1x Hose Handling Crane with personnel transfer system - SWL 15,0 t Manufacturer: Oriental Prec & Eng'g Co. |
|
Crew |
24 |
|
Manager |
Minerva Marine Inc. 141-143, Vouliagmenis Avenue Voula, 166 73 Athens Greece |
|
Registered owner |
Jiro Shipping SA. |
|
Latest data adjustment |
22 June 2021 |
