Westerschelde 24 June 2019 |
|
Name |

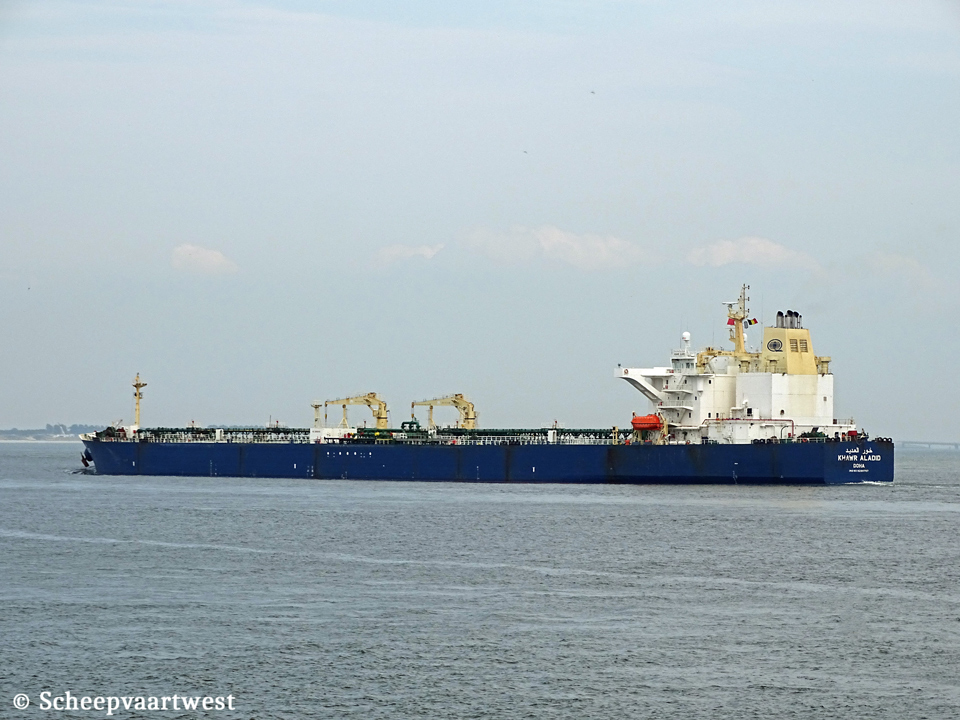

KHAWR ALADID |
|
Type |
Oil product tanker |
|
IMO-number |
9299757 |
|
Call sign |
A7NB |
|
Flag |
Qatar |
|
Port of registry |
Doha |
|
GT |
57.243 t |
|
DWT |
Summer: 106.002 t |
|
NT |
32.763 t |
|
Length |
244,26 m overall 234,00 m between perpendiculars |
|
Breadth |
42,03 m extreme |
|
Draught |
Summer: 14,92 m |
|
Depth |
21,45 m |
|
Speed |
14,5 knots |
|
Built |
2006 |
|
Keel laid |
30/12/2004 |
|
Launch date |
08/03/2006 |
|
Date of completion |
14/06/2006 |
|
Builder |
Hyundai Heavy Industries Co., Ltd. 1 Jeonha-dong, Dong-gu Ulsan South Korea |
|
Yard number |
1642 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x MAN-B&W/HHI 6S60MC-C - 2 stroke 6 cylinder 600 x 2.400 mm combustion engine 13.548 kW / 18.420 hp at 105,0 rpm |
|
Propellers |
1x Fixed pitch mono-block propeller Builder: Hyundai Heavy Ind. Co. Ltd. |
|
Boilers |
2x Auxiliary boiler, oil/gas fired Mission OL 1x Auxiliary boiler, exhaust gas heated Mission XW Builder: Aalborg Industries A/S |
|
Generators |
3x MAN-B&W7L23/30H - 4 stroke 7 cylinder 225 x 300 mm diesel engines each 1.120 kW connected with generators 1.050 ekW |
|
Emergency generator |
1x Sisu 634 diesel generatorset 150 kW Builder: AGCO Sisu Power, GenPowex |
|
Number of pumps |
3x Cargo pumps each 3.300 m³/h |
|
Tank capacities |
Ballast: 61.126,9 m³ |
|
Anchor equipment |
Length: 715,00 m Diameter: 87 mm |
|
Crew size |
30 |
|
Manager |
Milaha Ship Management W.L.L. Qatar Navigation, Q.P.S.C. East Industrial Road Umm Al Saneem Area Street No. 523, Zone 56 Doha Qatar |
|
Registered owner |
Qatar Shipping Company W.L.L. |
|
Latest data adjustment |
12 July 2021 |
