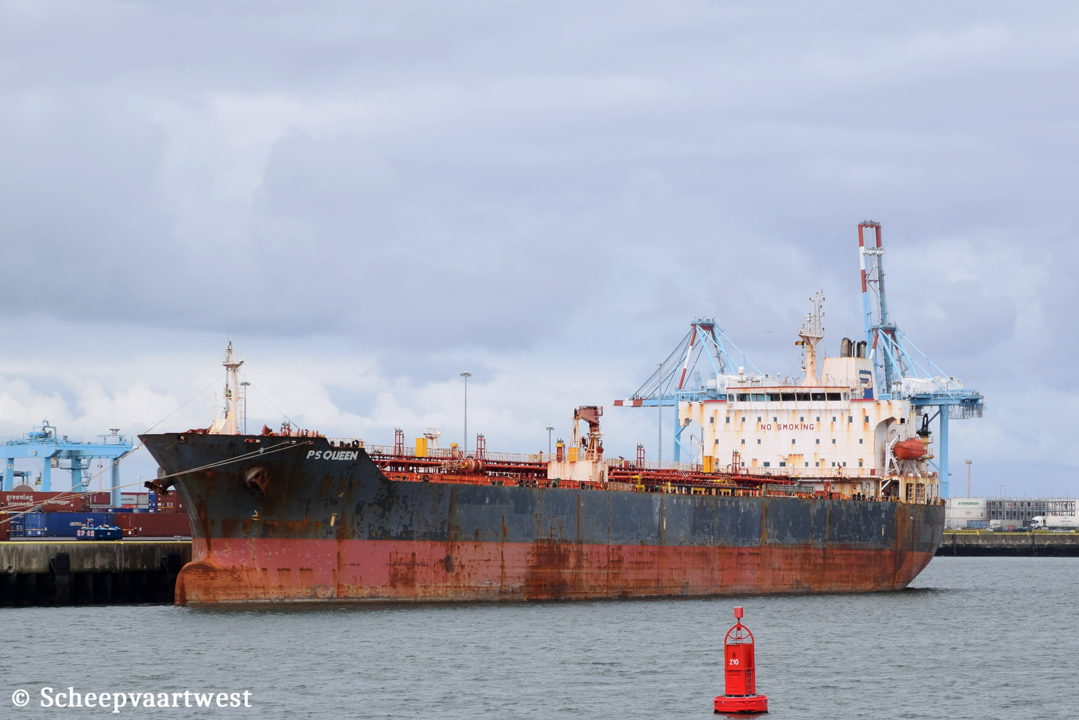

Zeebrugge 01 September 2021 |

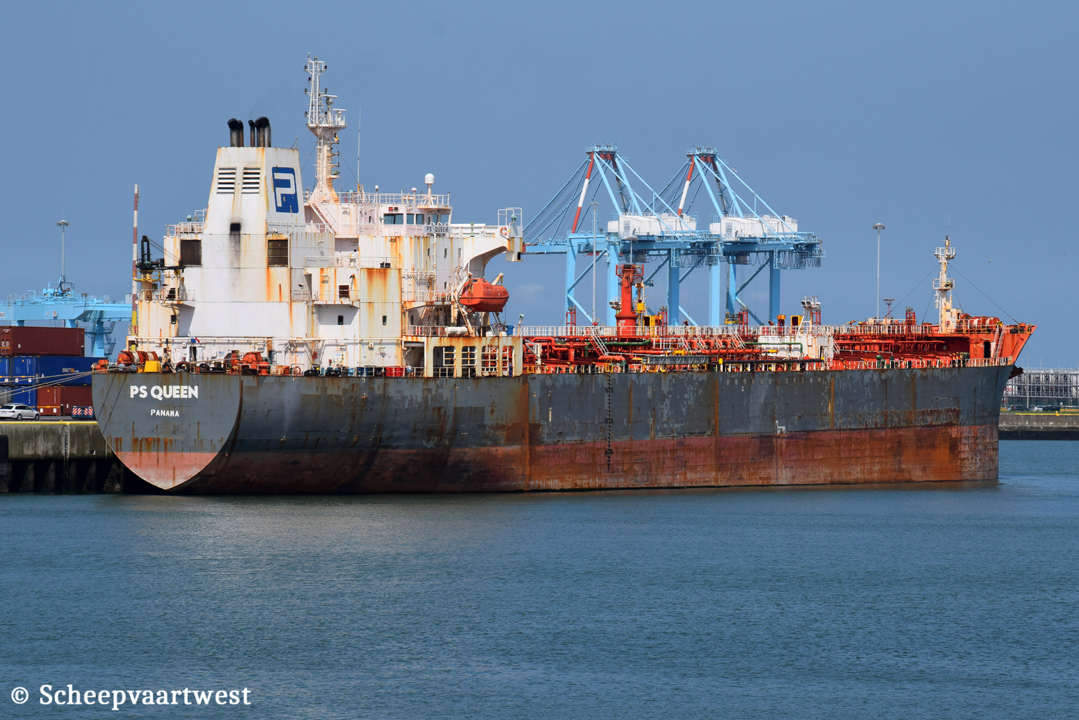

Zeebrugge 11/08/21 |
Name |
PS QUEEN |
Previous names |
2006 - 09/2009 Overseas Orion 09/2009 - 2016 Orion 2016 - 2021 PTI Orion |
Type |
Tanker for oil and chemicals |
IMO-number |
9358319 |
Classification |
DNV GL |
Call sign |
3EHL3 |
Flag |
Republic of Panama |
Port of registry |
Panama City |
Previous flags |
2006 - 2021 Hong Kong, China - call sign: VRBZ2 |
GT |
30.068 t Suez: 30.437 t |
DWT |
51.218 t |
NT |
13.602 t Suez: 25.529 t |
Length |
183,06 m overall 173,90 m between perpendiculars |
Breadth |
32,21 m extreme |
Draught |
Summer: 13,13 m |
Keel to mast end |
47,78 m |
Depth |
19,11 m |
Speed |
14,2 knots |
Built |
2006 |
Keel laid |
02/05/2006 |
Launch date |
15/07/2006 |
Date of completion |
13/09/2006 |
Builder |
STX Offshore & Shipbuilding Co., Ltd. Jinhae South Korea |
Yard number |
2023 |
Hull material |
Steel |
Main engine |
1x MAN- B&W/STX 6S50MC-C - 2 stroke 6 cylinder 500 x 2.000 mm combustion engine 9.488 kW / 12.900 hp at 127,0 rpm |
Propellers |
1x Fixed pitch mono-block propeller |
Boilers |
1x Auxiliary boiler, oil/gas fired 1x Auxiliary boiler, exhaust gas heated Builder: KangRim Industries |
Generators |
3x STX/MAN-B&W 6L23/30H main diesel generatorsets each 900 kW |
Emergency generator |
1x Cummins/Stamford 6CT 8.3-D(M) diesel generatorset Builder: Cummins Engine Company Limited, Darlington - United Kingdom |
Number of tanks |
12 |
Cargo tank capacity |
Liquid: 52.123,5 m³ |
Number of slop tanks |
2 |
Slop tank capacity |
1.410,9 m³ |
Number of pumps |
12x Cargo pimps each 600 m³/h |
Tank capacities |
Ballast: 24.155,50 m³ |
Anchor equipment |
Length: 624,90 m Diameter: 73 mm |
Crew |
21 |
ISM & commercial manager |
Prive Shipping Denizcilik Ticaret A.S. Torun Center, Buyukdere Caddesi 74D/24, Fulya Mah, Sisli, 34394 Istanbul Turkey |
Registered owner |
SLO2021 SA Care of Prive Shipping Denizcilik Ticaret AS , Torun Center, Buyukdere Caddesi 74D/24, Fulya Mah, Sisli, 34394 Istanbul Turkey |
Latest data adjustment |
08 September 2020 |
