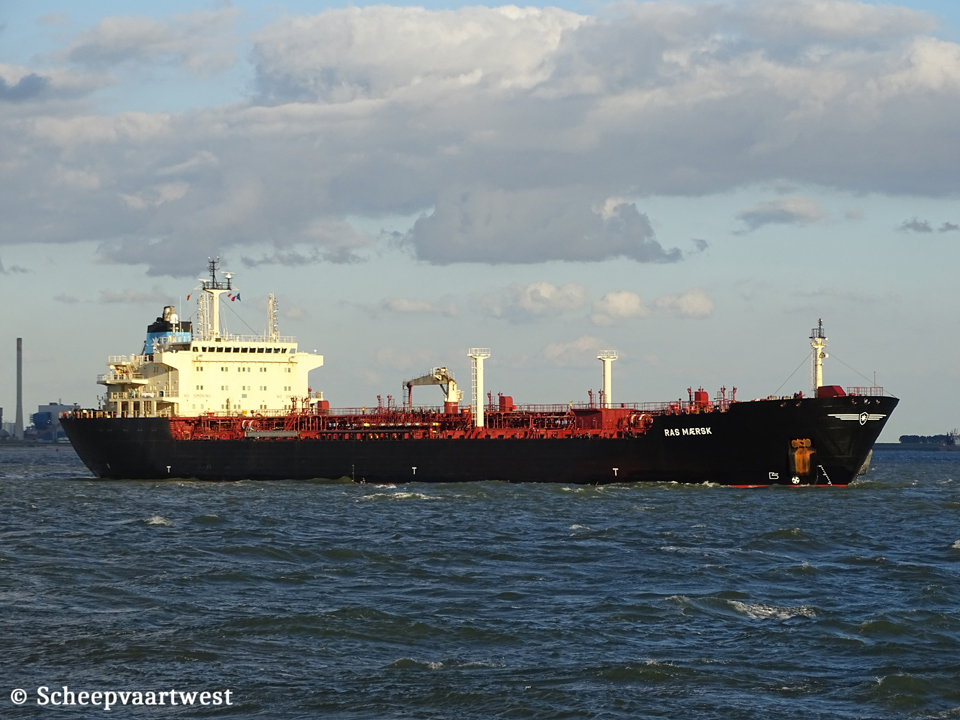

Ras Maersk IMO 9236999 01

Westerschelde 07 September 2018



Name

RAS MAERSK

Type

Oil product tanker

IMO-number

9236999

Call sign

OXBL2

Flag

Denmark

Port of registry

Hundested

GT

22.184 t

DWT

Summer: 34.999 t

NT

9.438 t

Length

171,20 m overall

163,68 m between perpendiculars

Breadth

27,43 m extreme

Draught

Summer: 11,82 m

Depth

17,32 m

Speed

Max: 15,5 knots

Built

2003

Date of completion

30/05/2003

Builder

Guangzhou Shipyard International Co. Ltd.

Guangzhou

China

Yard number

0130003

Hull material

Steel

Hull type

Double hull

Main engine

1x MAN-B&W 5S50MC-C - 5 cylinder combustion engine 7.721 kW / 9.724 bhp at 127,0 rpm
Manufacturer: Dalian Marine Diesel

Generators

3x 7L23/30 - 4 stroke 7 cylinder 225 x 300 mm diesel generatorsets each Mcr 967 kW

Emergency generator

1x Sisu 612DSDG - 4 stroke 6 cylinder 108 x 134 diel generatorset Mcr 142 kW

Bow thruster

1x 865 kW, forward

1x 865 kW, aft

Number of tanks

12

Cargo tank capacity

Liquid: 36.767 m³

Number of slop tanks

2

Number of pumps

10x Cargo pumps each 500 m³/h

2x Cargo pumps each 300 m³/h

Manager

Maersk Tankers A/S

Esplanaden 50

1263 Copenhagen

Denmark

Registered owner

Maersk Product Tankers A/S

Holmbladsgade 133

2300 København S

Denmark

Latest data adjustment

22 August 2021
