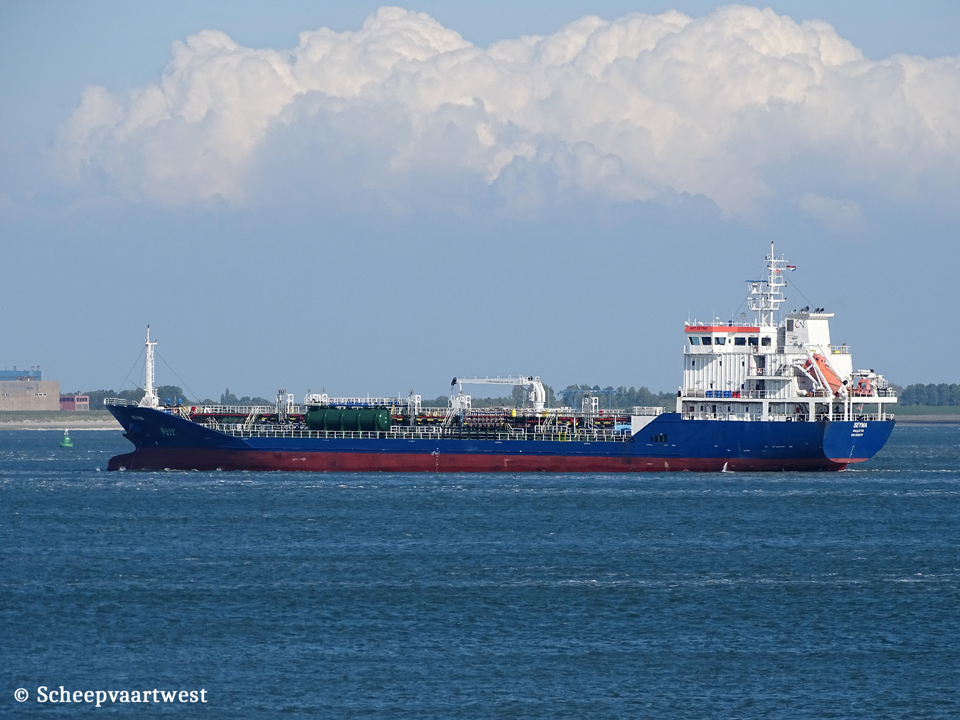

Westerschelde 11 May 2019 |
|
Name |
SEYMA |
|
Location |
Westerschelde 11 May 2019 |
|
Type |
Oil tanker / Chemical tanker |
|
IMO-number |
9596777 |
|
Call sign |
9HA3396 |
|
Flag |
Malta |
|
Port of registry |
Valletta |
|
GT |
4.378 t registered |
|
DWT |
Summer: 6.342,7 t |
|
NT |
2.062 t registered |
|
Length |
121,62 m overall 112,17 m between perpendiculars |
|
Breadth |
16,00 m |
|
Draught |
Summer: 6,33 m |
|
Freeboard |
1.681 mm |
|
Depth |
7,80 m |
|
Speed |
Economic: 11,0 knots Service: 11,5 knots |
|
Built |
2013 |
|
Date of completion |
06/12/2013 |
|
Builder |
Denta Denizcilik Ticaret Sanayi Ltd. Sti. - Altinova Yard Istanbul Turkey |
|
Yard number |
02 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Watertight compartments |
9 |
|
Continuous decks |
1 |
|
Main engine |
1x Hyundai 8H25/33P - 4 stroke single acting 8 cylinder 250 x 330 mm combustion engine 2.321 kW / 3.156 hp at 900 rpm Build: 22/10/2008 Builder: Hyundai Heavy Industries Co. Ltd., Ulsan - South Korea |
|
Propellers |
1x Controllable pitch propeller- aft at 139,0 rpm |
|
Boilers |
1x CHR Garioni Naval 44,00 m² - 10,0 bar 2x CHO Garioni Naval 37,00 m² - 10,0 bar |
|
Generators |
3x Main diesel generatorsets each 602 kVA - 482 kW - 700 hp |
|
Emergency generator |
1x Diesel generatorset 204 kVA - 163 kW - 255 hp |
|
Bow thruster |
1x Tunnel thruster 471kW / 641 bhp, forward |
|
Number of tanks |
12 + 2 slop tanks |
|
Cargo tank capacity 98% |
7.232,82 m³ |
|
Number of pumps |
12x Cargo pumps each 200 m³/h |
|
Tank capacities |
Fuel: 346,9 m³ |
|
Lifting equipment |
1x Gurdesan for cargo operations - SWL 3,0 t 1x For service - SWL 2,0 t |
|
Crew size |
16 |
|
Commercial manager |
Zela Mariline Ltd. 99, Triq l-Arcisqof Valletta, VLT 1446 Malta. |
|
ISM manager |
Atlantik Denizcilik Ticaret ve Sanayi A.S. Kat 11, Selenium Plaza, Hakki Yeten Caddesi 10C, Dikilitas Mah, Besiktas, 34349 Istanbul Turkey |
|
Registered owner |
Seyma Denizcilik Demir Celik SAN. ve TIC. A.S. Daire 7, Kat 1, Sasmaz Sitesi, Degirmen Sokak, Kozyatagi Mah, 9, Kadikoy Istanbul Turkey |
|
Latest data adjustment |
16 November 2021 |
