Westerschelde 15 June 2020 |
Name |

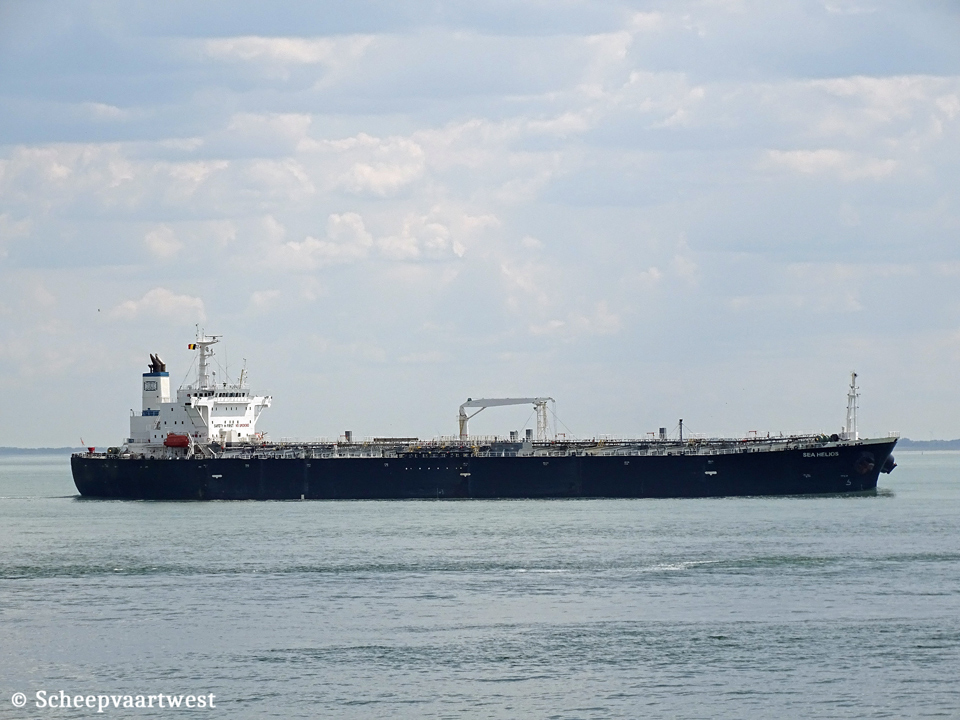

SEA HELIOS |
Previous names |
2004 - 04/2011 Kudu 04/2011 - 01/2013 Avonden |
Type |
Oil product tanker |
IMO-number |
9279719 |
Call sign |
9HA3224 |
Flag |
Malta |
Port of registry |
Valletta |
Previous flags |
2005 - 2016 Philippines - Call sign: DYNI |
GT |
28.069 t |
DWT |
Summer: 45.948 t |
NT |
11.553 t |
Displacement |
54.870 t |
Length |
179,88 m overall 172,00 m between perpendiculars |
Breadth |
32,23 m overall |
Draught |
Summer: 12,02 m |
Keel to mast end |
46,27 m |
Freeboard |
6.714 mm |
Depth |
18,70 m moulded |
Speed |
Max: 15,1 knots |
Built |
2004 |
Keel laid |
19/06/2002 |
Delivery date |
30/03/2004 |
Builder |
Shin Kurushima Dockyard Co., Ltd. 945 Ko, Shin-Machi Ohnishi-Cho, Imabari City, 799-2203 Japan |
Yard number |
S5195 |
Hull material |
Steel |
Hull type |
Double hull |
Main engine |
1x MAN-B&W 6S50MC-C - 2 stroke 6 cylinder 500 x 1.900 mm combustion engine 9.480 kW / 12.890 hp at 127,0 rpm Manufacturer: Mitsui Engineering & Shipbuilding Co. Ltd. |
Propellers |
1x Fixed pitch propeller |
Boilers |
1x Auxiliary boiler - 9,8 MPa 1x Waste Heat Boiler (Economizer) - 12,8 MPa Manufacturer: Tortoise Engineering Co. Ltd. |
Generators |
3x Main diesel generatorsets each 720 kW Manufacturer: Taiyo Electric Co. Ltd. |
Number of tanks |
17 |
Cargo tank capacity |
51.789,29 m³ |
Number of pumps |
4x Cargo pumps each 1.000 m³/h |
Tank capacities |
Ballast: 20.183,74 m³ Fresh water: 345,70 m³ Lub oil: 157,43 m³ Fuel oil: 1.923,84 m³ |
Lifting equipment |
1x Engine room overhead crane - SWL 4,0 t 1x Hose handling jib crane - SWL 10,0 t 1x Provision crane - SWL 4,0 t |
ISM & commercial manager |
Sea World Management & Trading Inc. J Laliotis Building, 8, Poseidonos Avenue Kallithea, 176 74 Athens Greece |
Registered owner |
Helios Shipping Co Ltd. Care of Sea World Management & Trading Inc. J Laliotis Building, 8, Poseidonos Avenue Kallithea, 176 74 Athens Greece |
Latest data adjustment |
20 February 2022 |
