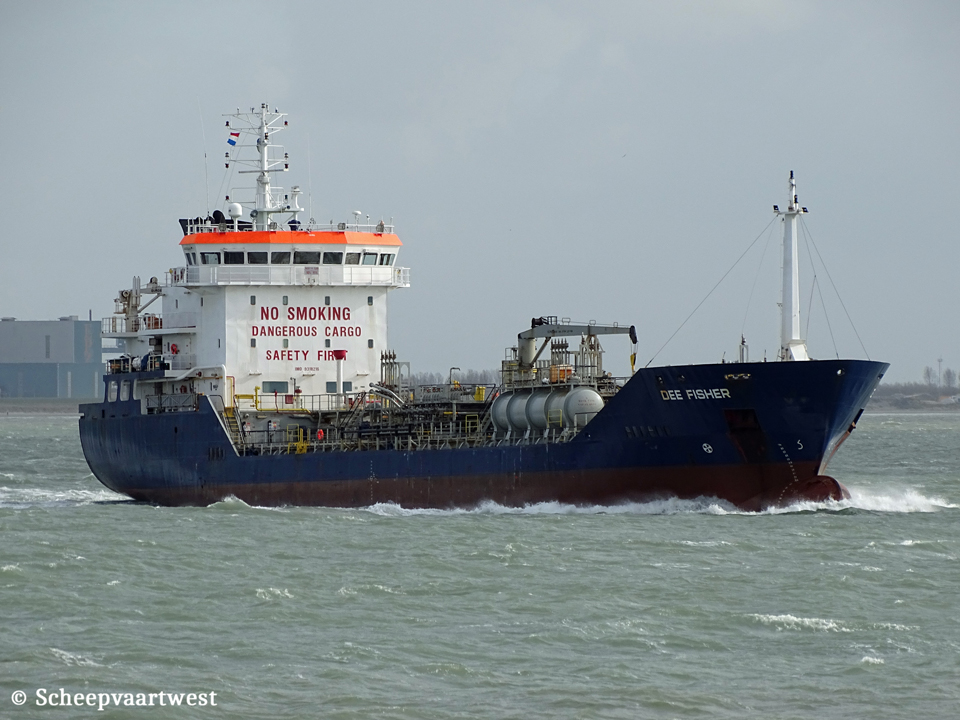

| Westerschelde 19 February 2020 |
|
Name |
DEE FISHER |
|
Previous names |
2006 - 11/2007 Lider Yaman 11/2007 - 27/2007 Brovig Viento 27/2007 - 12/2007 Lider Yaman 12/2007 - 05/2014 Brovig Vindur 05/2014 - 06/2018 Key Fjord |
|
Type |
Oil tanker / Chemical tanker |
|
IMO-number |
9318216 |
|
Call sign |
ZDIJ3 |
|
Flag |
Gibraltar |
|
Port of registry |
Gibraltar |
|
Previous flags |
06/2006 - 12/2007 Turkey |
|
GT |
3.178 t |
|
DWT |
Summer: 4.653 t |
|
NT |
1.448 t |
|
Length |
99,80 m overall 93,41 m between perpendiculars |
|
Breadth |
15,00 m |
|
Draught |
6,05 m |
|
Keel to mast end |
30,20 m |
|
Freeboard |
1.410 mm |
|
Depth |
7,45 m |
|
Speed |
15,0 knots |
|
Built |
2006 |
|
Keel laid |
04/06/2004 |
|
Launch date |
11/06/2005 |
|
Date of completion |
16/06/2006 |
|
Builder |
Gisan Gemi Insa San. VE TIC. A.S. (Gisan Shipbuilding & Shipping) Istanbul Turkey |
|
Yard number |
35 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Continuous decks |
1 |
|
Main engine |
1x MAN-B&W 8L27/38 - 4 stroke 8 cylinder 270 x 380 mm diesel engine 2.720 kW / 3.696 bhp at 800 rpm Built: 07/01/2004 Builder: MAN-B&W Diesel A/S Alpha Diesel, Frederikshavn - Denmark |
|
Propellers |
1x Controllable pitch propeller |
|
Boilers |
1x CHO Garioni Naval S.R.L. 18,30 m² - 6,0 bar 2x CHO Garioni Naval S.R.L. 47,30 m² - 10,0 bar 1x CHR Garioni Naval S.R.L. 34,50 m² - 10,0 bar |
|
Electric installations |
Power voltage: 400 V Lighting voltage: 220 V Frequency: 50 Hz |
|
Shaft generator |
1x 400 kW |
|
Generators |
3x Main diesel generatorsets each 390 kVA - 312 kW - 469 hp |
|
Bow thruster |
1x 254 kW, forward |
|
Number of tanks |
12 |
|
Cargo tank capacity |
Tank 1P: 273 m³ Tank 1S: 277 m³ Tank 2P: 458 m³ Tank 2S: 454 m³ Tank 3P: 381 m³ Tank 3S: 384 m³ Tank 4P: 472 m³ Tank 4S: 469 m³ Tank 5P: 469 m³ Tank 5S: 472 m³ Tank 6P: 403 m³ Tank 6S: 401 m³ |
|
Number of deck tanks |
2 Capacity: each 41 m³ |
|
Number of slop tanks |
1 Capacity: 162 m³ |
|
Total tank capacity 98% |
5.157 m³ incl. slop tanks |
|
Number of pumps |
13x Cargo pumps each 2.00 m³/h |
|
Tank capacities |
Fuel oil: 269 m³ |
|
Crew size |
19 |
|
ISM & commercial manager |
James Fisher Shipping Services Fisher House,Michaelson Road Barrow-in-Furness, LA14 1HR United Kingdom |
|
Registered owner |
James Fisher Everard Ltd. Fisher House,Michaelson Road Barrow-in-Furness, LA14 1HR United Kingdom |
|
Latest data adjustment |
19 March 2022 |
