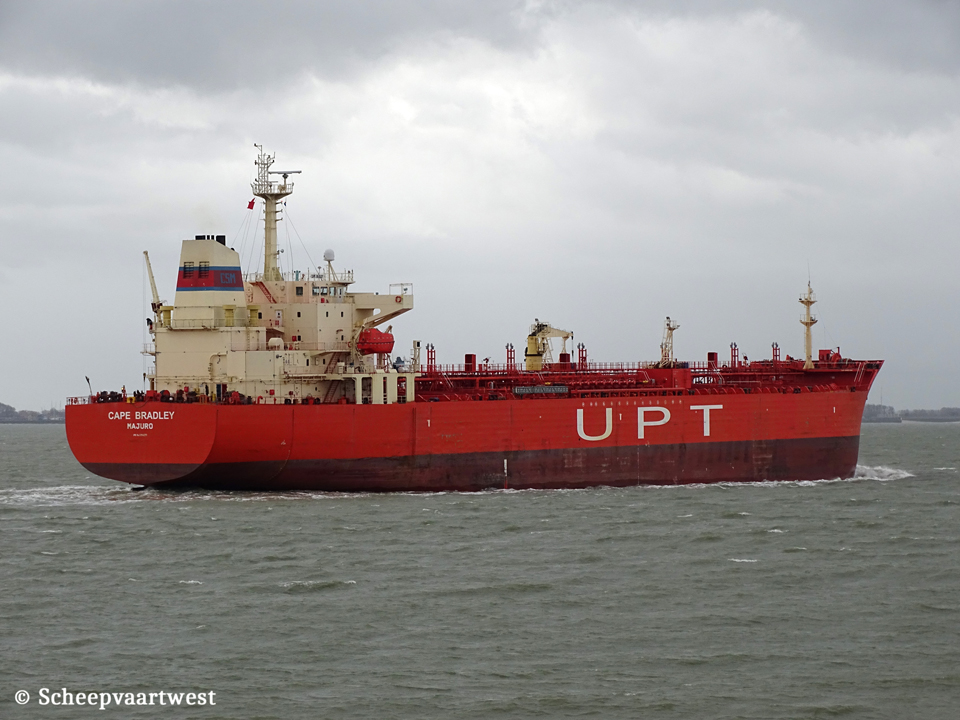

| Westerschelde 13 April 2018 |
 |
 |
 |
 |
|||

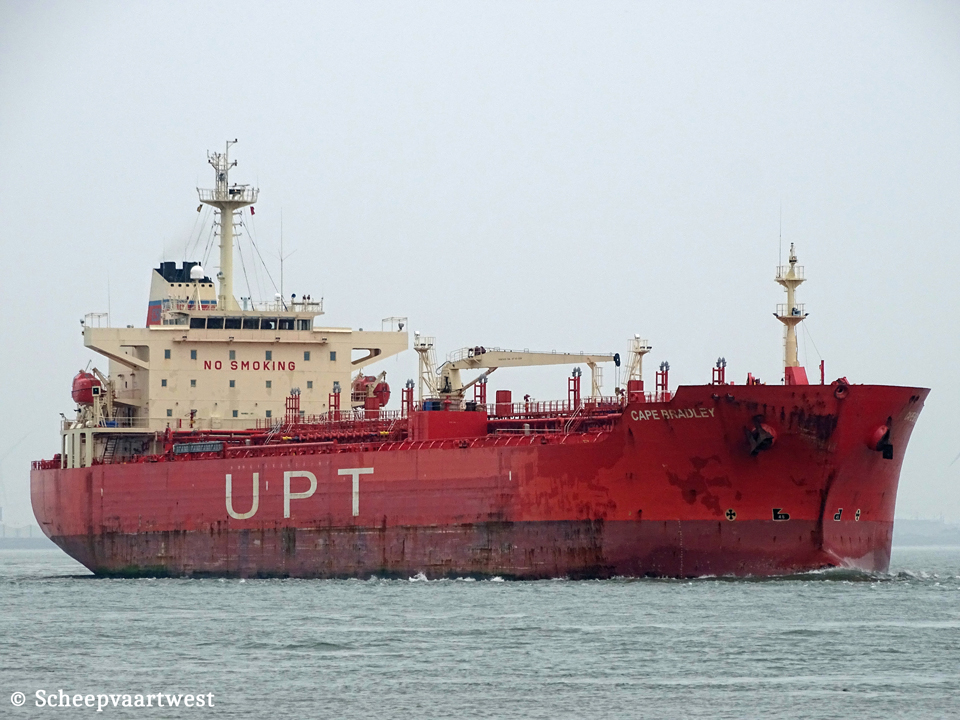

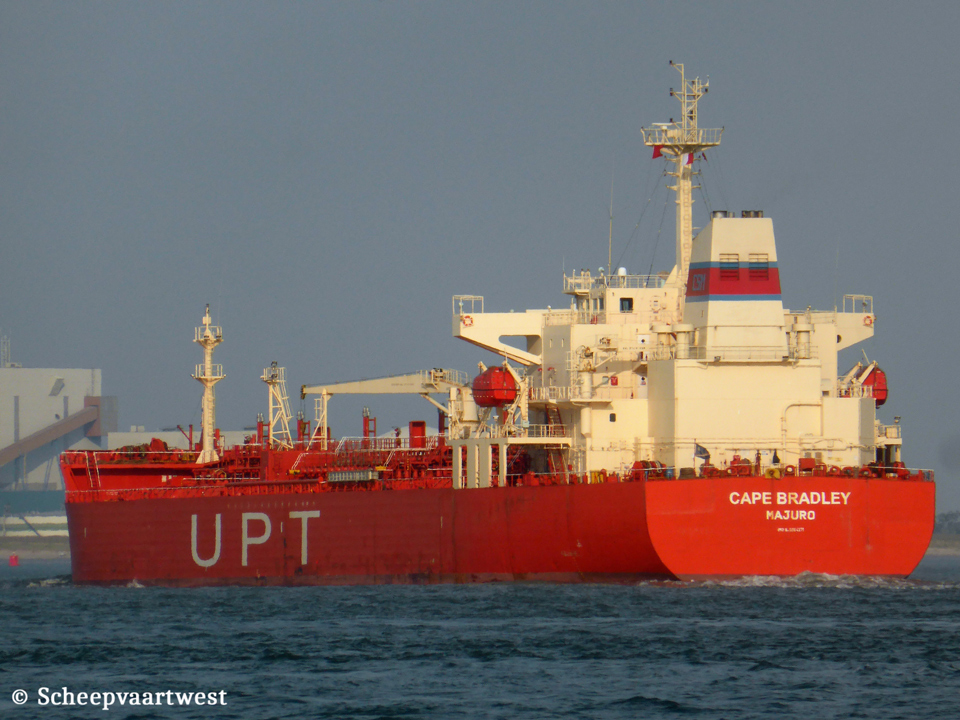

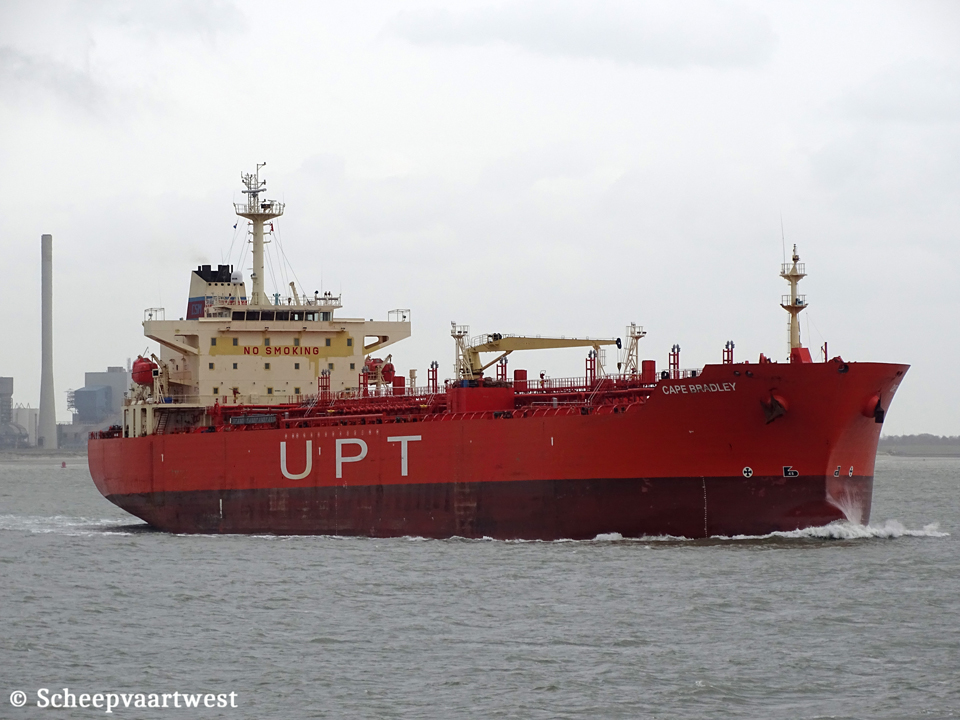

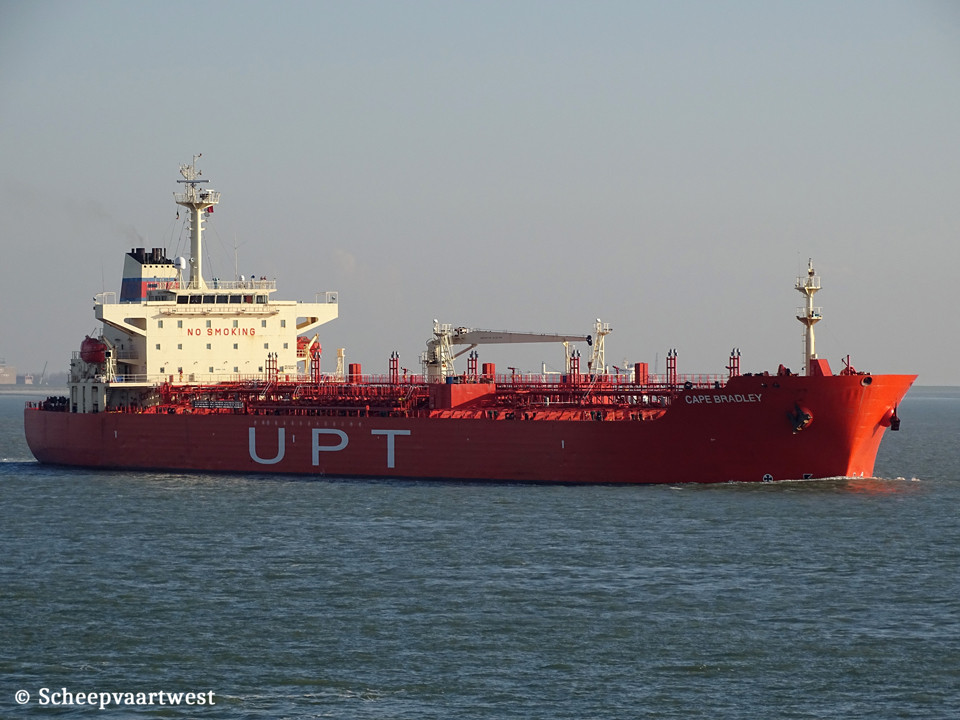

| Westerschelde 01/03/20 | Westerschelde 01/03/20 | Westerschelde 20/11/19 | Westerschelde 03/07/15 | |||
|
Name |
CAPE BRADLEY |
|
Previous names |
2004 - 2005 J Shartava |
|
Type |
Chemical tanker/Oil tanker |
|
IMO-number |
9264271 |
|
Call sign |
V7FK7 |
|
Flag |
Marshall Islands |
|
Port of registry |
Majuro |
|
GT |
25.108 t |
|
DWT |
39.999 t |
|
NT |
8.346 t Suez: 23.100 t Panama: 20.892 m |
|
Displacement |
43.777 t |
|
Length |
176,00 m overall 168,00 m between perpendiculars |
|
Breadth |
31,00 m extreme |
|
Draught |
Summer: 11,12 knots |
|
Keel to mast end |
45,80 m |
|
Air draft |
37,12 m |
|
Freeboard |
Summer: 6.950 mm Winter: 7.170 mm |
|
Depth |
17,00 m |
|
Speed |
Max: 15,0 knots |
|
Built |
2004 |
|
Keel laid |
09/06/2003 |
|
Launch date |
07/01/2004 |
|
Date of completion |
26/02/2004 |
|
Builder |
Hyundai Mipo Dockyard Co., Ltd. Ulsan South Korea |
|
Yard number |
0143 |
|
Hull material |
Shipbuilding steel (Standard) |
|
Hull type |
Double hull Double bottom - continuous from peak to peak bulkhead |
|
Main engine |
1x MAN-B&W 6S50 MC - 2 stroke 6 cylinder 500 x 1.910 mm combustion engine 8.562 kW / 11.641 hp at 127,0 rpm |
|
Propellers |
1x Fixed propeller |
|
Boilers |
1x Auxiliary boiler, exhaust gas heated, Aalborg AV-4 1x Auxiliary boiler, oil/gas fired, Aalborg Mission OL Large |
|
Generators |
3x MAN B&W 6 L23/30 main diesel generatorsets |
|
Emergency generator |
1x SISU 634DSBIG diesel generatorset |
|
Bow thruster |
1x KT-88B3F - 900 kW, forward |
|
Cargo tank capacity 98% |
42.681 m³ |
|
Slop tank capacity 98% |
2.052 m³ |
|
Total tank capacity 98% |
44.733 m³ |
|
Number of pumps |
12x Cargo pumps each 500 m³/h 2x Cargo pumps each 200 m³/h |
|
Manifolds |
Bow to centre manifolds : 89,93 m |
|
Tank capacities |
Ballast: 20.711,5 m³ |
|
Anchor equipment |
Length: 632,50 m Diameter: 70 mm |
|
Lifting equipment |
1x Crane - SWL 10,0 t |
|
Manager |
Columbia Shipmanagement (Deutschland) GmbH Große Elbstraße 275 22767 Hamburg Germany |
|
Operator |
UPT United Product Tankers GmbH & Co. KG Große Elbstr. 275 22767 Hamburg Germany |
|
Registered owner |
Cape Bradley Navigation Co., Ltd. Columbia Shipmanagement (Deutschland) GmbH Große Elbstraße 275 22767 Hamburg Germany |
|
Renamed |
2023 PM Bradley Republic of Panama, Panama City - Call sign: 3E4082 Owner: Pulsar Investments Co. LLC Manager: Columbia Shipmanagement (Deutschland) GmbH, Hamburg - Germany |
|
Latest data adjustment |
05 April 2022 |
