| Westerschelde 25 November 2020 |
|
Name |

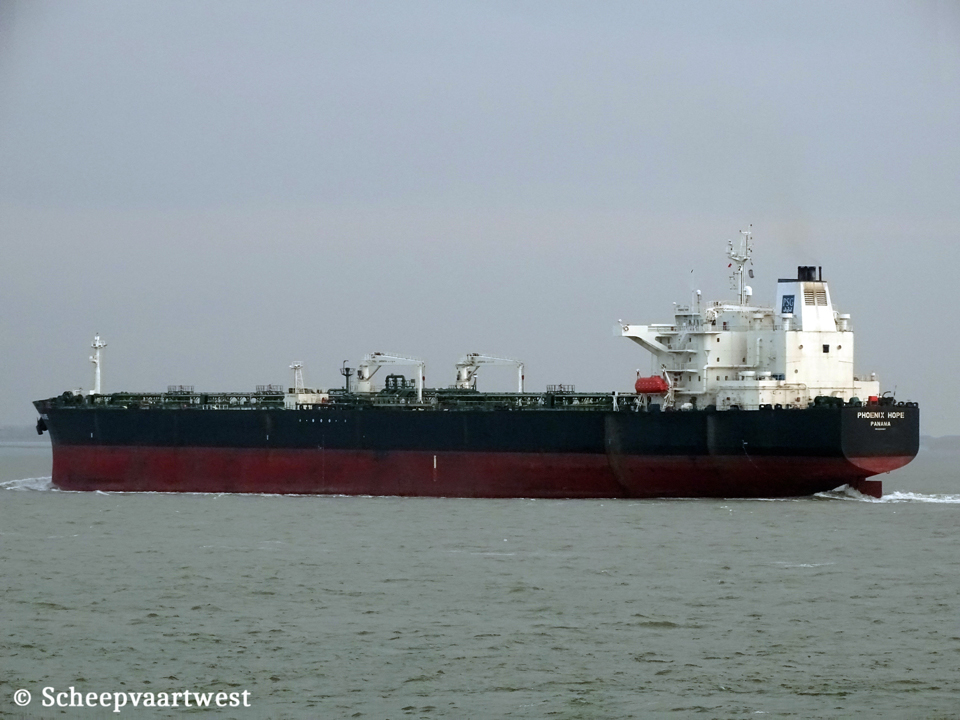

PHOENIX H |
|
Type |
Crude and oil products carrier - Aframax |
|
IMO-number |
9390587 |
|
Call sign |
3FWW7 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
57.142 t |
|
DWT |
105.585 t |
|
NT |
32.732 t |
|
Displacement |
122.943 t |
|
Length |
244,18 m overall 234,00 m between perpendiculars |
|
Breadth |
42,00 m moulded |
|
Draught |
Summer: 14,95 m |
|
Freeboard |
6.116 mm |
|
Depth |
21,00 m moulded |
|
Speed |
14,5 knots |
|
Built |
2008 |
|
Keel laid |
02/06/2008 |
|
Launch date |
10/09/2008 |
|
Delivery date |
20/11/2008 |
|
Builder |
Hyundai Heavy Ind. Co., Ltd. Ulsan South Korea |
|
Yard number |
1929 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x 6S60MC-C7 - 6 cylinder 600 x 2.400 mm combustion engine 13.560 kW / 18.440 bhp at 105,0 rpm |
|
Propellers |
1 |
|
Boilers |
1x Auxiliary water tube boiler (Starboard) - 18,0 MPa 1x Auxiliary water tube boiler (Port) - 18,0 MPa Manufacturer: Aalborg Industries Ltd. 1x Exhaust Gas Economizer Manufacturer: Kangrim Heavy Industries Co., Ltd. |
|
Generators |
3x Main diesel generatorsets each 710 kW |
|
Cargo tank capacity 98% |
115.778 m³ |
|
Slop tank capacity 98% |
2.452 m³ |
|
Tank capacities |
Lube oil: 146,80 m³ Fresh water: 335,00 m³ Fuel oil: 3.105,20 m³ Ballast: 37.850,70 m³ Diesel oil: 230,70 m³ |
|
Lifting equipment |
1x Engine room overhead crane - SWL 4,0 t Manufacturer: Dongnam Marine Crane Co., Ltd. 1x Port cargo hose handling crane - SWL 15,0 t 1x Port provision crane - SWL 4,0 t 1x Starboard cargo hose handling crane - SWL 15,0 t 1x Starboard provision crane - SWL 2,0 t Manufacturer: Oriental Precision & Engineering Co., Ltd. |
|
Manager |
V Ships UK Ltd. |
|
Operator |
Northern Marine Management |
|
Registered owner |
Phoenix Hope Inc. |
|
Latest data adjustment |
08 May 2022 |
