Name |

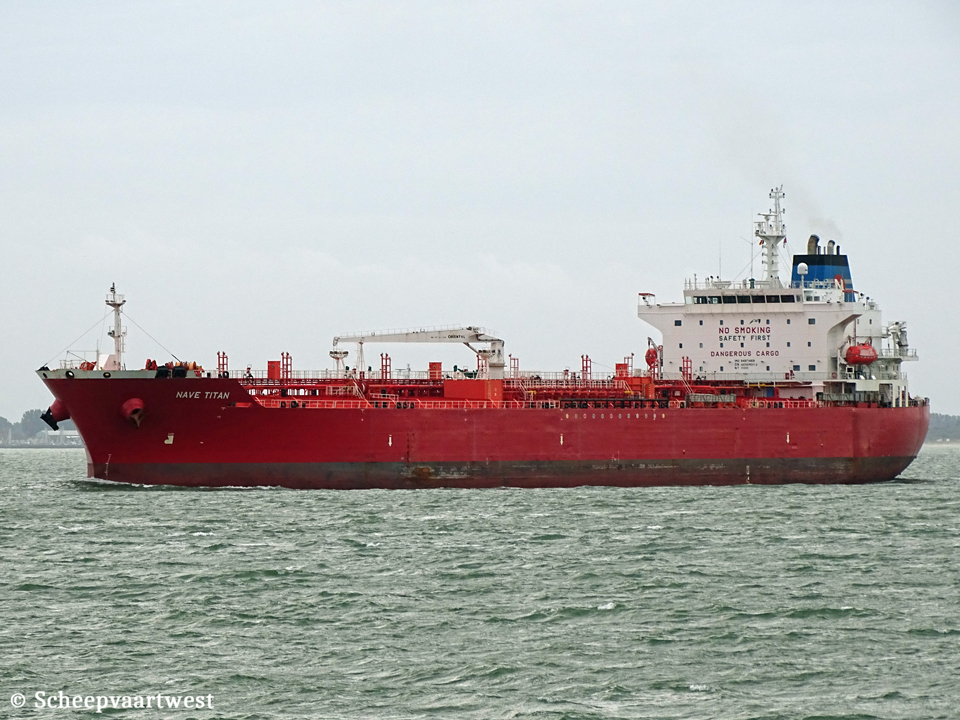

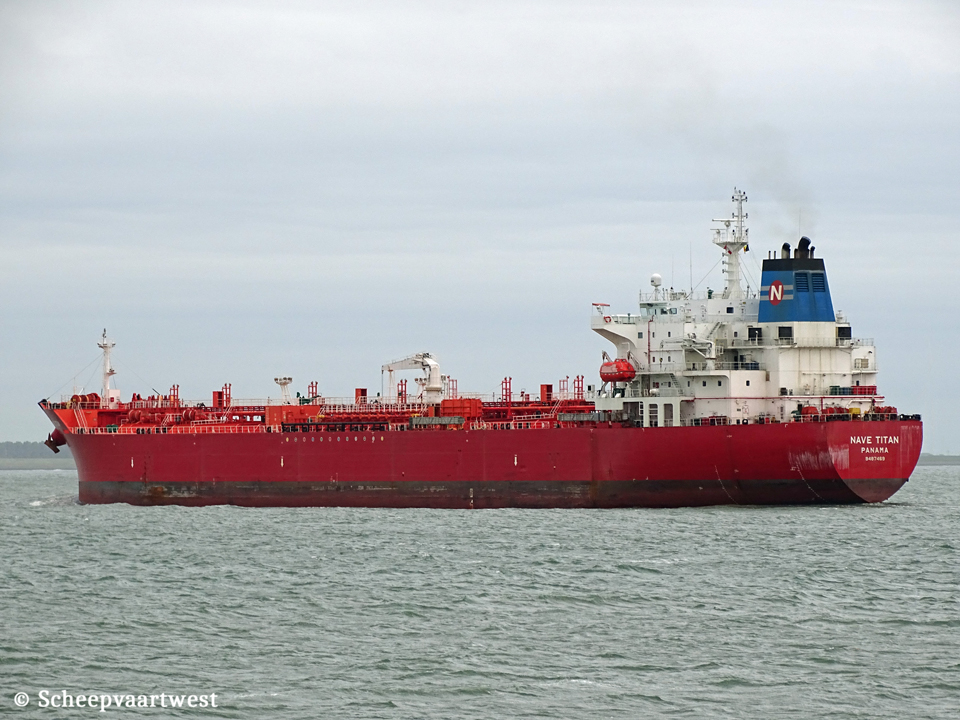

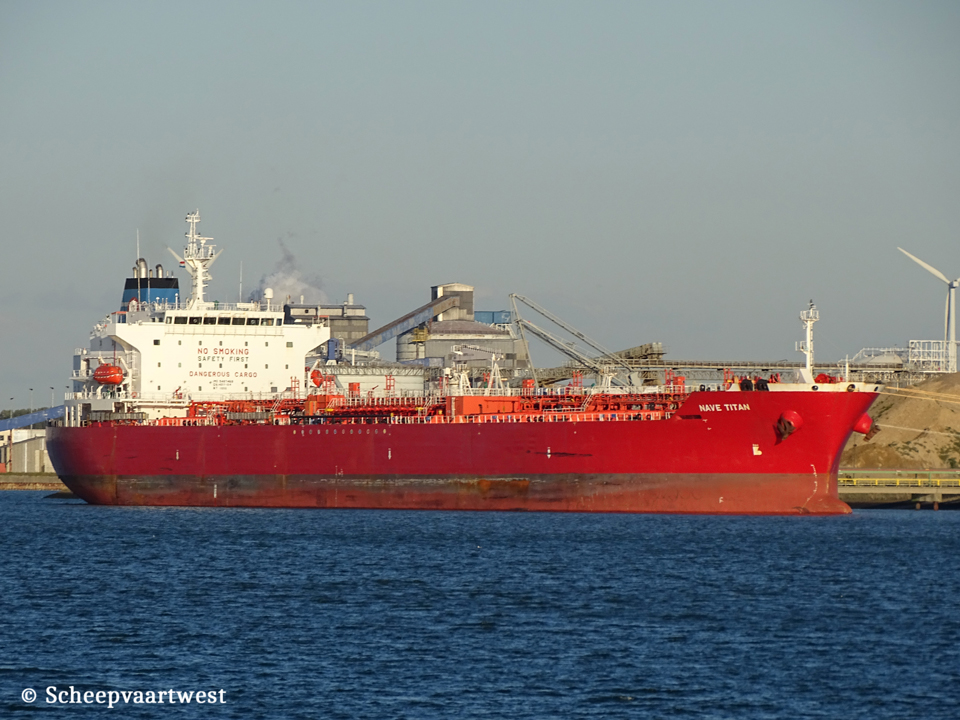

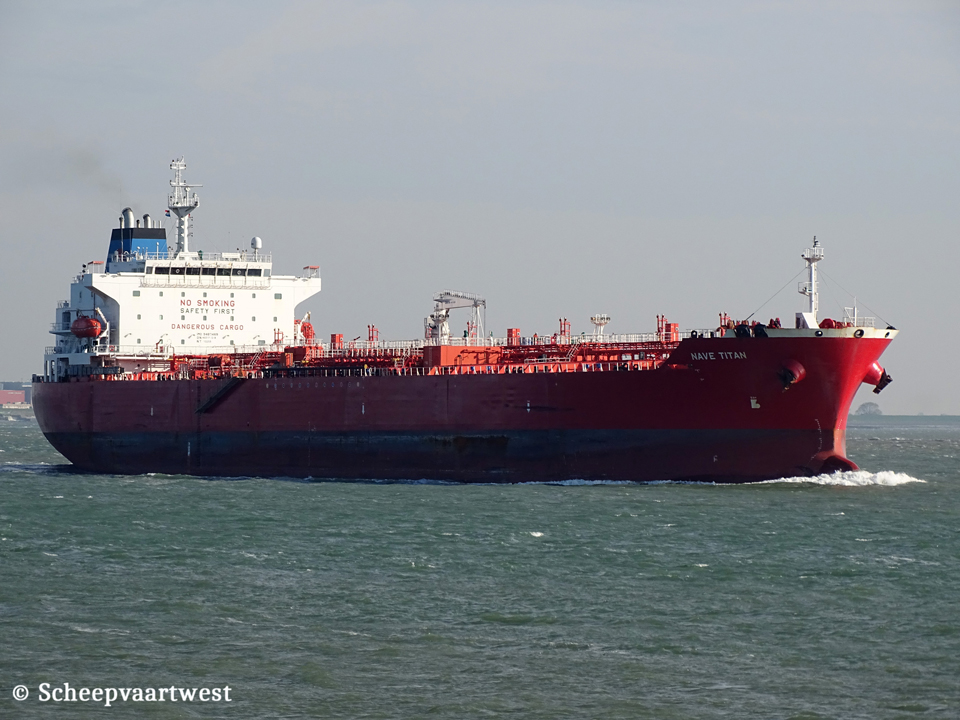

NAVE TITAN |
|
Type |
Chemical / Oil products tanker |
|
IMO-number |
9487469 |
|
Call sign |
3FKP |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GRT |
30.052 t |
|
DWT |
49.996 t |
|
NRT |
13.255 t |
|
Length |
183,10 m overall |
|
Breadth |
32,20 m moulded |
|
Draught |
Summer: 13,08 m |
|
Moulded L x B x D |
174,00 x 32,20 x 19,10 m |
|
Registered L x B x D |
174,54 x 32,20 x 19,10 m |
|
Keel to mast end |
47,90 m |
|
Freeboard |
Summer: 6.053 mm |
|
Depth |
19,10 m moulded |
|
Speed |
Max: 15,9 knots |
|
Built |
2013 |
|
Keel laid |
28/12/2011 |
|
Launch date |
09/04/2013 |
|
Date of completion |
10/06/2013 |
|
Builder |
Dae Sun Shipbuilding & Engineering Co., Ltd. Pusan South Korea |
|
Yard number |
SB508 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x STX/MAN-B&W 6S50MC-C8 - 2 stroke single acting 6 cylinder 500 x 2.000 mm combustion engine 9.960 kW / 13.542 hp at 127,0 rpm Manufacturer: STX Engine Co., Ltd. |
|
Propeller shaft |
1x Oil lubrication shaft without monitoring device Diameter: 480 mm |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Auxiliary vertical boiler - 0,9 MPa Evaporation: 21,30 t/h Manufacturer: Aalborg Industries A.S. |
|
Generators |
4x Generatorsets total 3.563 kVA |
|
Number of tanks |
12 + 2 slop tanks |
|
Cargo tank capacity 98% |
Liquid: 52.953,5 m³ |
|
Number of pumps |
12x Cargo pumps each 600 m³/h |
|
Tank capacities |
Fuel oil: 2.322 m³ Fresh water: 272 m³ |
|
ISM & commercial manager |
Navios Tankers Management Inc. 85, Akti Miaouli 185 38 Piraeus Greece |
|
Registered owner |
Sifnos Shipping Corporation Care of Navios Tankers Management Inc. 85, Akti Miaouli 185 38 Piraeus Greece |
|
Latest data adjustment |
24 July 2024 |
