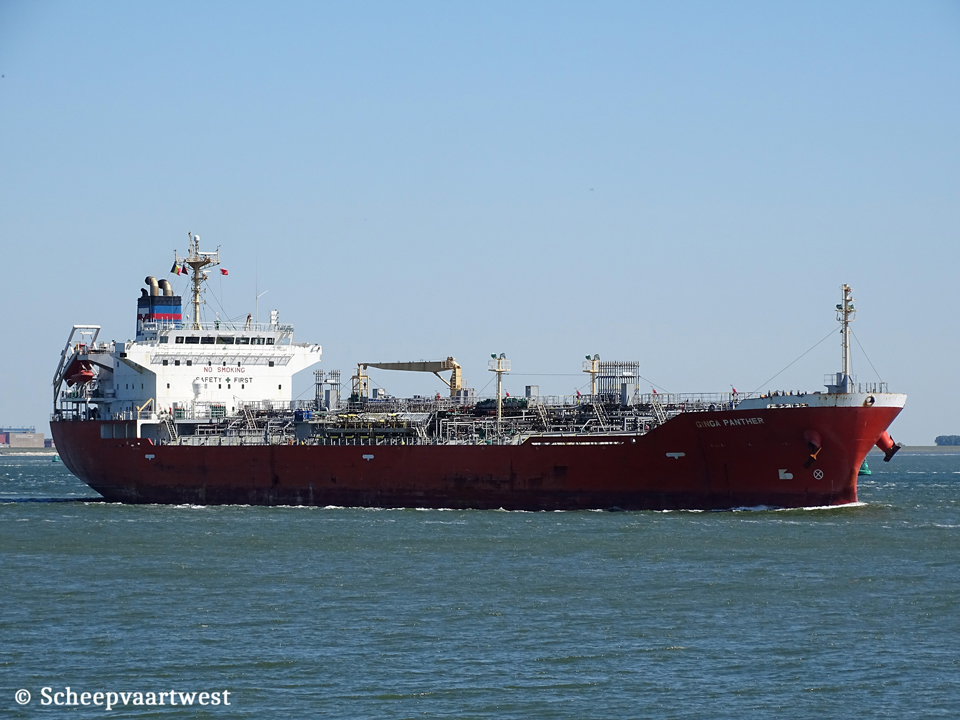

| Westerschelde 05 may 2020 |
|
Name |
GINGA PANTHER |
|
Previous names |
2007 - 2012 Ginga P |
|
Type |
Oil/Molasses/Chemical |
|
IMO-number |
9379985 |
|
Call sign |
3EKQ6 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GRT |
16.222 t |
|
DWT |
Summer: 26.083 t |
|
NRT |
7.683 t Panama: 13.583 t Suez: 14.649,8 t |
|
Length |
159,98 m overall |
|
Breadth |
26,80 m moulded |
|
Draught |
Summer: 10,08 m |
|
Moulded L x B x D |
154,00 x 26,80 x 14,20 m |
|
Registered L x B x D |
154,31 x 26,80 x 14,20 m |
|
Keel to mast end |
40,63 m |
|
Freeboard |
Summer: 4.165 mm |
|
Depth |
14,20 m moulded |
|
Speed |
Service: 14,0 knots Max: 16,0 knots |
|
Built |
2007 |
|
Keel laid |
13/10/2006 |
|
Launch date |
24/01/2007 |
|
Date of completion |
07/06/2007 |
|
Builder |
Shin Kurushima Dockyard Co., Ltd. Hiroshima Works, Akitsu Japan |
|
Yard number |
5428 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x Mitsubishi 6UEC52LA - 2 stroke single acting 6 cylinder 520 x 1.600 mm combustion engine Mcr 7.080 kW / 9.627 hp at 123,0 rpm Manufacturer: Kobe Diesel Co., Ltd. |
|
Propeller shaft |
1x Oil lubrication shaft without monitoring device Diameter: 445 mm |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Auxiliary vertical cylindrical water tube - 0,88 MPa Evaporation: 16,02 t/h Manufacturer: Tortoise Engineering Co., Ltd. |
|
Generators |
3x Main diesel generatorsets each 680 kW / 850 kVA at 720 rpm |
|
Bow thruster |
1x Electric motor driven controllable pitch propeller 800 kW |
|
Number of tanks |
28 |
|
Cargo tank capacity |
Liquid: 29.591,08 m³ |
|
Number of pumps |
16x Cargo pumps each 330 m³/h 12x Cargo pumps each 200 m³/h 2x Hydraulic motor driven, vertical centrifugal ballast pumps each 400 m³/h |
|
Tank capacities |
Fuel oil: 1.248 m³ Diesel oil: 85 m³ Fresh water: 266 m³ Water ballast: 10.813 m³ |
|
Anchor equipment |
Officer: 8 Crew: 14 Other: 3 Total: 25 |
|
Commerical manager |
MOL Chemical Tankers Pte. Ltd. 15-01, UIC Building, 5, Shenton Way Singapore 068808 Republic of Singapore |
|
ISM manager |
Unix Line Pte. Ltd. 15-01, UIC Building, 5, Shenton Way Singapore 068808 Republic of Singapore |
|
Registered owner |
MOL Chemical Tankers Pte. Ltd. 15-01, UIC Building, 5, Shenton Way Singapore 068808 Republic of Singapore |
|
Latest data adjustment |
06 June 2020 |
