| Westerschelde 01 September 2020 |
|
Name |

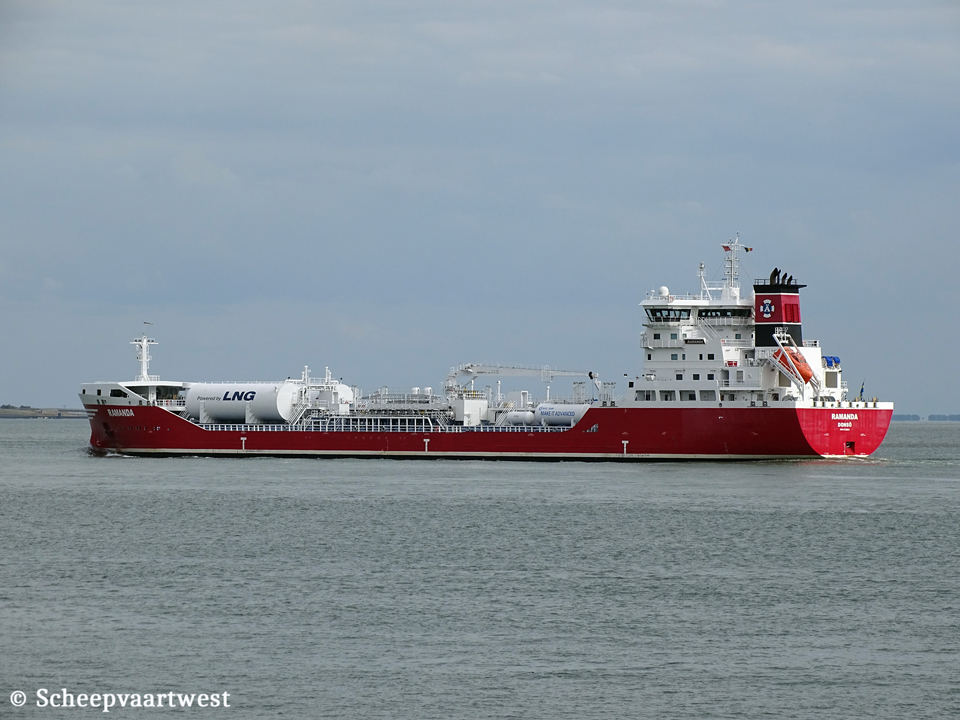

RAMANDA |
|
Type |
Oil tanker / Chemical tanker |
|
IMO-number |
9739812 |
|
Call sign |
SGRY |
|
Flag |
Sweden |
|
Port of registry |
Donsø |
|
GRT |
12.770 t |
|
DWT |
Summer: 17.994 t |
|
NRT |
5.838 t |
|
Length |
149,90 m overall 146,64 m between perpendiculars |
|
Breadth |
22,80 m |
|
Draught |
Summer: 9,36 m |
|
Keel to mast end |
40,30 m |
|
Freeboard |
2.752 mm |
|
Depth |
12,10 m |
|
Speed |
Service: 14,5 knots Max: 16,7 knots |
|
Built |
2018 |
|
Date of completion |
25/07/2018 |
|
Builder |
China Merchants Jinling Shipyard (Yangzhou) Dingheng Co.,Ltd. Yangzhou China |
|
Yard number |
AD0027 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Continuous decks |
1 |
|
Main engine |
Power by LNG 1x Wärtsilä 9L34DF - 4 stroke 9 cylinder 200 x 280 mm combustion engine 4.500 kW / 6.114 hp at 750 rpm Build: 30/09/2017 Builder: Wärtsilä Finland OY |
|
Propellers |
1x Screw propeller controllable pitch aft at 750 rpm |
|
Boilers |
1x CHF 64,00 m² - 8,0 bar 1x CHM 235,00 m² - 8,0 bar Manufacturer: Aalborg, Alfa Laval |
|
Shaft generator |
1x 1.800 kW |
|
Generators |
1x Wärtsilä 9L20 diesel generatorset 2.000 kVA - 1.600 kW - 2.262 hp 1x Wärtsilä 4L20 diesel generatorset 856 kVA - 685 kW - 980 hp |
|
Emergency generator |
1x 250 kVA - 200 kW - 345 hp |
|
Bow thruster |
1x Brunvoll 850 kW |
|
Number of cargo tank |
12 + 2 deck tanks |
|
Cargo tank capacity 98% |
No 1 S / P: 664 / 672 m³ No 2 S / P: 1.909 / 1.904 m³ No 3 S / P: 1.755 / 1.759 m³ No 4 S / P: 2.101 / 2.091m³ No 5 S / P: 2.090 / 2.094 m³ No 6 S / P: 1.589 / 1.588 m³ Total 100%: 20.216 m³ Total 98%: 19.812 m³ |
|
Deck drain tank |
P/S: 63 / 63 m³ |
|
Segregations: |
6 |
|
Number of pumps |
12x Svanehöj cargo pumps each 300 m³/h 2x Svanehöj ballast pumps each 500 m³/h |
|
Tank capacities |
Fuel: 675,3 m³ Ballast: 7.494 m³ LNG: 619 m³ HFO: 522 m³ Gas oil: 153 m³ Fres water 40 m³ Fresh water technical: 297 m³ |
|
Commercial manager |
Furetank Chartering Korsholmebacke 1 430 82 Donsö Sweden |
|
Registered owner |
Rederi AB Älvtank Donsö hamnväg 27 430 82 Donsö Sweden |
|
Latest data adjustment |
10 June 2022 |
