Westerschelde 04 July 2019 |
Name |

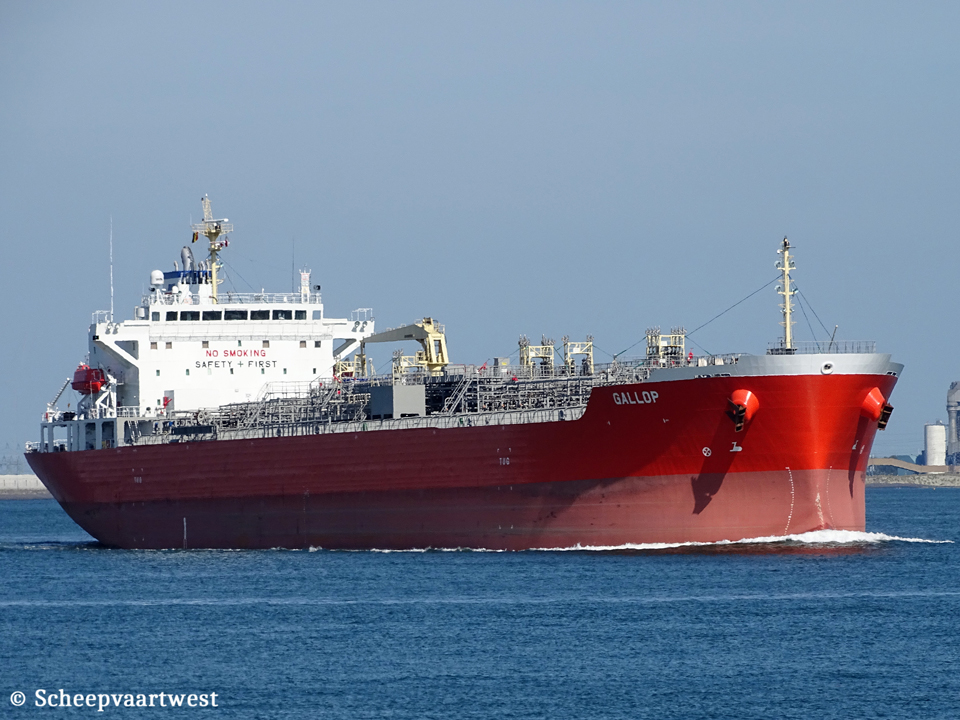

GALLOP |
Type |
Chemical/Oil products tanker |
IMO-number |
9799678 |
Call sign |
9V5486 |
Flag |
Republic of Singapore |
Port of registry |
Singapore City |
GRT |
22.988 t Suez: 23.532 t |
DWT |
Summer: 37.250 t |
NRT |
9.866 t Panama: 19.148 t Suez: 20.864 t |
Length |
180,15 m overall |
Breadth |
28,20 m moulded |
Draught |
Summer: 11,37 m |
Moulded L x B x D |
174,15 x 28,20 x 16,30 m |
Registered L x B x D |
174,34 x 28,20 x 16,30 m |
Keel to mast end |
40,20 m |
Freeboard |
Summer: 4.964 mm |
Depth |
16,30 m moulded |
Speed |
Service: 14,0 knots Max: 15,28 knots |
Built |
2019 |
Keel laid |
02/12/1015 |
Launch date |
22/09/2018 |
Date of completion |
15/01/2019 |
Builder |
Kitanihon Shipbuilding Co. Ltd. Japan |
Yard number |
652 |
Hull material |
Steel |
Hull type |
Double hull |
Main engine |
1x Makita/MAN-B&W 6S46ME-B8 - 2 stroke single acting 6 cylinder 460 x 1.932 mm combustion engine Mcr 6.100 kW / 8.294 hp at 110,0 rpm Nsr: 5.250 kW at 105,0 rpm Manufacturer: Makita Corporation |
Propeller shaft |
1x Oil lubrication shaft with monitoring device Diameter: 460 mm |
Propellers |
1x Fixed pitch propeller |
Boilers |
1x Auxiliary vertical water tube boiler - 0,93 MPa Evaporation: 18,98 t/h Manufacturer: Tortoise Engineering Co., Ltd. |
Generators |
3x Main diesel generatorsets each 850 kVA at 720 rpm |
Bow thruster |
1x 868 kW |
Number of tanks |
28 |
Caro tank capacity |
Liquid: 39.251,14 m³ |
Number of pumps |
10x Cargo pumps each 330 m³/h 18x Cargo pumps each 220 m³/h 2x Hydraulic driven, Vertical centrifugal ballast pumps each 500 m³/h |
Tank capacities |
Fuel oil: 2.180,40 m³ Diesel oil: 155,68 m³ Fresh water: 592,90 m³ Ballast: 14.276,50 m³ |
Accommodation |
Officer: 8 Crew: 15 Other: 7 Total: 30 |
Commerical manager |
MOL Chemical Tankers Pte Ltd. 15-01, UIC Building, 5, Shenton Way, Singapore 068808 Republic of Singapore |
ISM manager |
Unix Line Pte. Ltd. 15-01, UIC Building, 5, Shenton Way, Singapore 068808 Republic of Singapore |
Owner |
Victoria Navigation Pte. Ltd. Care of MOL Chemical Tankers Pte Ltd. 15-01, UIC Building, 5, Shenton Way, Singapore 068808 Republic of Singapore |
Latest data adjustment |
05 July 2022 |
