| Westerschelde 23 November 2018 |
|
Name |

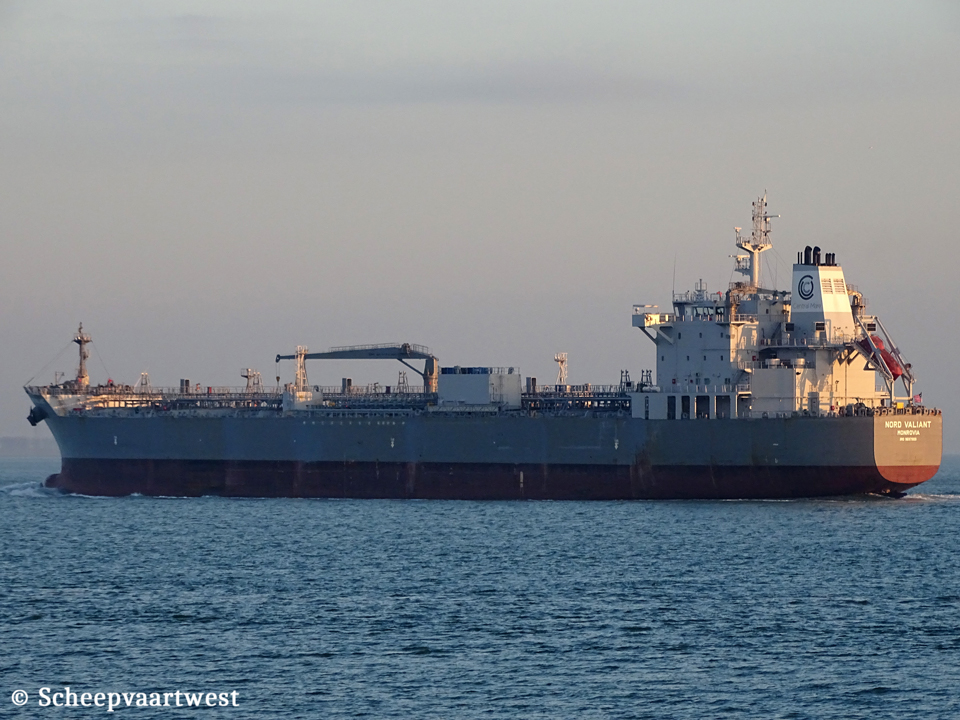

NORD VALIANT |
|
Previous names |
07/201 - 08/2016 Ecoship |
|
Type |
Oil and chemical carrier |
|
IMO-number |
9697909 |
|
Call sign |
D5HN8 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
GT |
29.429 t Suez: 30.844,10 t |
|
DWT |
49.737 t |
|
NT |
13.742 t Suez: 26.364,88 t Panama: 24.436 t |
|
Displacement |
60.512 t |
|
Length |
183,06 m overall 174,00 m between perpendiculars |
|
Breadth |
32,00 m moulded |
|
Draught |
Summer: 13,32 m |
|
Keel to mast end |
49,84 m |
|
Freeboard |
5.812 mm |
|
Depth |
19,10 m moulded |
|
Speed |
15,0 knots |
|
Built |
2016 |
|
Keel laid |
16/12/2015 |
|
Launch date |
05/05/2016 |
|
Delivery date |
10/08/2016 |
|
Builder |
Hyundai Mipo Dockyard Co. Ltd. #1 My Giang, Ninh Phuoc Ninh Hoa Khanh Hoa Vinashin Vietnam |
|
Yard number |
S417 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x Hyundai/MAN-B&W 6G50ME-B9.3 - 2 stroke 6 cylinder 500 x 2.500 mm combustion engine 8.620 kW / 11.720 hp at 92,8 rpm Manufacturer: HHI Engine & Machinery Div. |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Auxiliary boiler - 8,8 MPa 1x Composite boiler - 8,8 MPa Manufacturer: Kangrim Heavy Industries Co., Ltd. |
|
Generators |
3x Main diesel generatorsets each 1.100 kW Manufacturer: HHI Electro Electric System |
|
Number of tanks |
14 + 2 slop tanks |
|
Cargo tank capacity |
53.898,6 m³ |
|
Number of pumps |
12x Cargo pimps each 600 m³/h |
|
Tank capacities |
Fresh water: 273,90 m³ Fuel oil: 1.421,10 m³ Hydraulic oil: 17,90 m³ Lube oil: 74,60 m³ Ballast: 22.825,50 m³ Diesel oil: 216,40 m³ |
|
Lifting equipment |
1x Engine room crane - SWL 4,0 t 1x Hose handling crane - SWL 10,0 t 1x Provision crane port - SWL 4,0 t 1x Provision crane starboard - SWL 4,0 t Manufacturer: Dongnam Marine Crane Co., Ltd. |
|
Crew size |
30 |
|
Commercial manager |
Central Shipping Monaco Sam Palais de la Scala, 1, avenue Henry-Dunant 98000 Monte Carlo Monaco |
|
ISM manager |
Central Mare Inc. 1, Vasilissis Sofias & Megalou Alexandrou Streets, Marousi, 151 24 Athens Greece |
|
Registered owner |
Xiang T89 Hk International Care of Central Shipping Monaco SAM Palais de la Scala, 1, avenue Henry-Dunant 98000 Monte Carlo Monaco |
|
Renamed |
2021 Dee4 Larch Denmark,Skovshoved - Call sign: OZFD2 Owner: Dee4 Vesselco 7 K/S, Copenhagen - Denmark Manager: Synergy Marine Pte Ltd., Chennai - India |
|
Latest data adjustment |
15 July 2022 |
