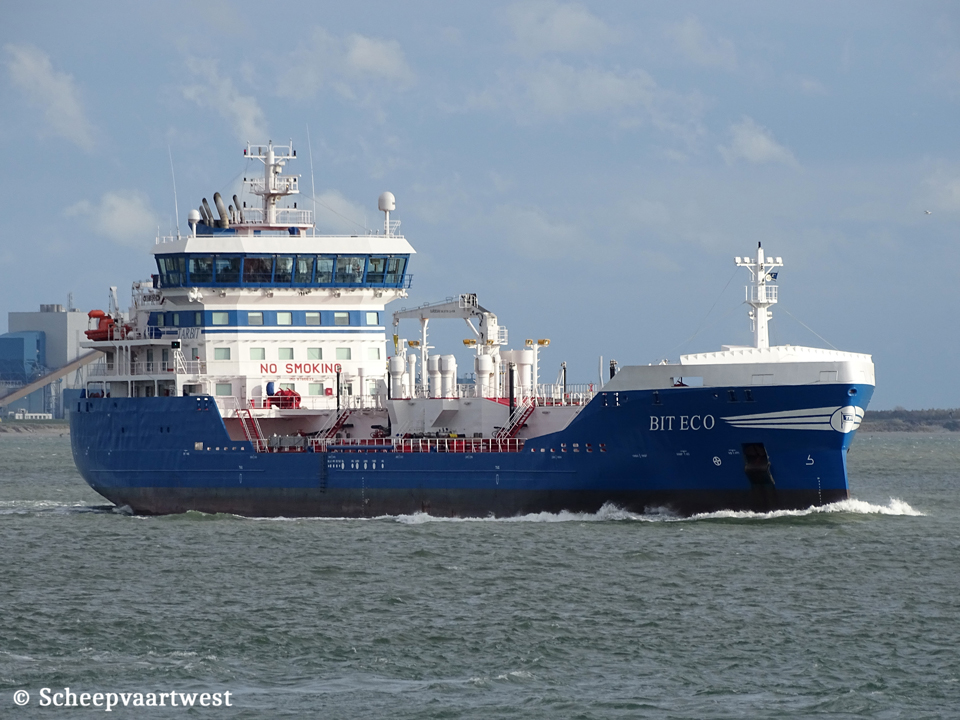

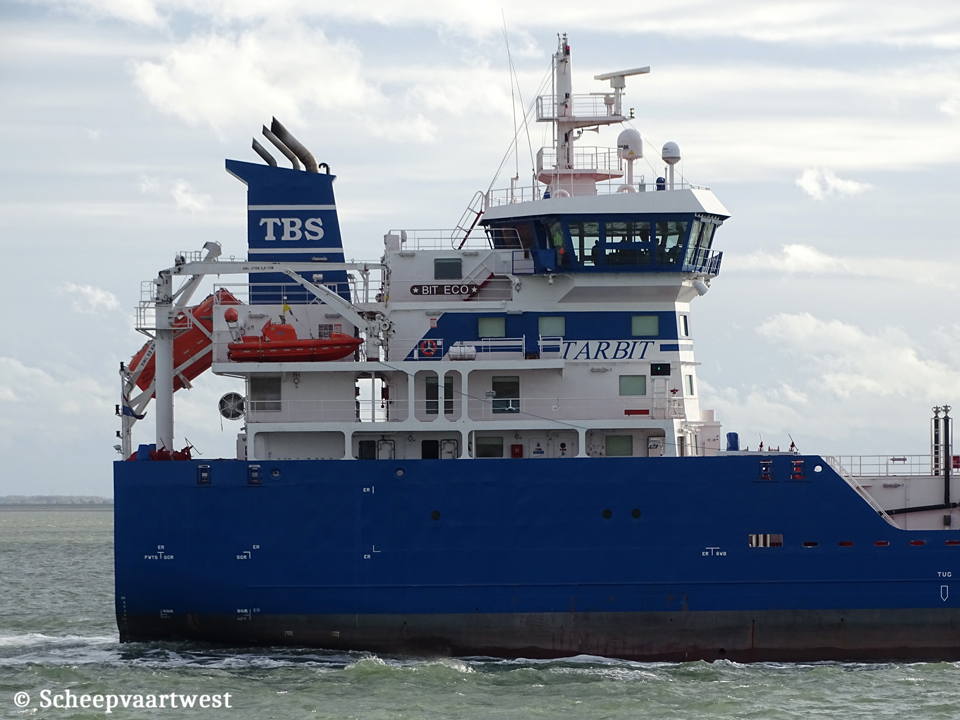

| Westerschelde 11 November 2018 |
 |
| Westerschelde 11/11/18 |
|
Name |
BIT ECO |
|
Type |
Oil tanker / Asphalt carrier / Chemical tanker |
|
IMO-number |
9786633 |
|
Call sign |
PCUE |
|
Flag |
The Netherlands |
|
Port of registry |
Dordrecht |
|
GT |
7.447 t |
|
DWT |
9.921 t |
|
NT |
2.234 t |
|
Length |
119,90 m overall 116,20 m between perpendiculars |
|
Breadth |
19,40 m moulded |
|
Draught |
8,30 m |
|
Keel to mast end |
34,00 m |
|
Freeboard |
2.510 mm |
|
Depth |
10,80 m |
|
Speed |
Service: 13,0 knots Max: 17,6 knots |
|
Built |
2017 |
|
Launch date |
18/01/2017 |
|
Date of completion |
04/10/2017 |
|
Builder |
RMK Marine Gemi Yapim San. Ve Deniz Tas. Islt. A.S. Istanbul Turkey |
|
Yard number |
105 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Continuous decks |
1 |
|
Main engine |
1x Wärtsilä 6L32E - 4 stroke single acting 6 cylinder 320 x 400 mm combustion engine 3.480 kW / 4.728 bhp at 750 rpm Builder: Wärtsilä Finland Oy, Vaasa/Vasa - Finland |
|
Propellers |
1x Screw propeller controllable pitch |
|
Boilers |
2x CHR Gesab (Shaoxing) Emi 35,48 m² - 10,0 bar 2x CHO Gesab (Shaoxing) Emi 73,20 m² - 10,0 bar 1x CHR Gesab (Shaoxing) E 87,26 m² - 10,0 bar |
|
Generators |
1x Wärtsilä 4L20 main diesel generatorsets 806 kVA - 645 kW - 924 hp 1x Wärtsilä 6L20 main diesel generatorsets 1.219 kVA - 975 kW - 1.393 hp |
|
Emergency generator |
1x Diesel generatorsets 275 kVA - 220 kW - 365 hp |
|
Bow thruster |
1x Brunvoll 800 kW |
|
Number of tanks |
9 4x 2 wing tanks 1x 1 centre tanks |
|
Cargo tank capacity 98% |
Tank 1: 670,60 m³ Tank 2: 675,40 m³ Tank 3: 968,60 m³ Tank 4: 970,00 m³ Tank 5: 821,90 m³ Tank 6: 826,80 m³ Tank 7: 860,30 m³ Tank 8: 961,80 m³ Tank 9: 674,40 m³ Liquid: 7.325,8 m³ |
|
Number of pumps |
3x Leistritz cargo pumps each 400 m³/h |
|
Manifolds |
Bow to centre manifold: 60,20 m |
|
Max temp |
250°C |
|
Tank capacities |
Fuel: 596,5 m³ |
|
Lifting equipment |
1x Crane - SWL 10,0 t |
|
Commercial manager
|
Tarbit Tankers BV Wolwevershaven 30 3311 AW Dordrecht The Netherlands |
|
ISM manager |
Tarbit Tankers Services BV Wolwevershaven 30 3311 AW Dordrecht The Netherlands |
|
Owner |
Theodora Tankers BV, Dordrecht - The Netherlands Care of Tarbit Tankers BV Wolwevershaven 30 3311 AW Dordrecht The Netherlands |
|
Latest data adjustment |
26 August 2022 |
