| Westerschelde 11 November 2020 |
|
Name |

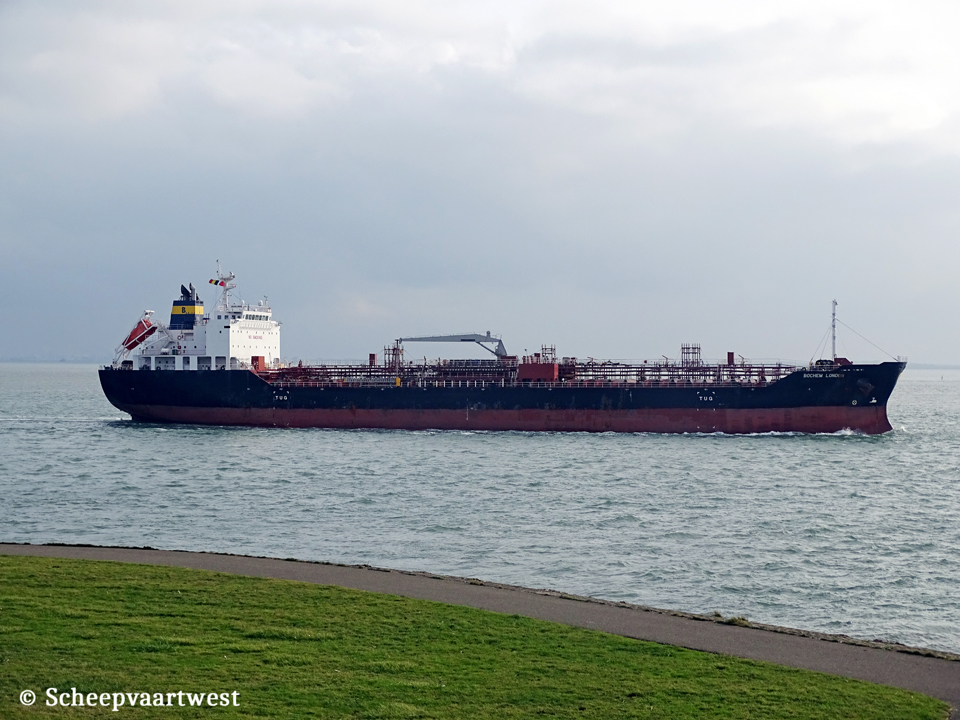

BOCHEM LONDON |
|
Type |
Oil and chemical carrier |
|
IMO-number |
9743849 |
|
Call sign |
VRQF6 |
|
Flag |
Hong Kong - China |
|
Port of registry |
Hong Kong |
|
GT |
12.136 t Suez: 12.917,25 t |
|
DWT |
19.983 t |
|
NT |
6.270 t Panama: 10.204 t Suez: 11.190,70 t |
|
Displacement |
25.921 t |
|
Length |
145,21 m overall 139,00 m between perpendiculars |
|
Breadth |
24,20 m moulded |
|
Draught |
Summer: 9,78 m |
|
Keel to mast end |
37,15 m |
|
Freeboard |
3.445 mm |
|
Depth |
13,20 m moulded |
|
Speed |
Service: 14,5 knots Max: 17,0 knots |
|
Built |
2016 |
|
Keel laid |
15/10/2015 |
|
Launch date |
28/08/2016 |
|
Delivery date |
28/11/2016 |
|
Builder |
Kitanihon Ship Building Co., Ltd. 1-25 Koyo 3-Chome Hachinohe City Aomori Pref., 031-0801 Japan |
|
Yard number |
633 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x Mitsubishi 5UEC45LSE-1 - 5 cylinder 450 x 1.840 mm combustion engine Mcr 4.900 kW / 6.662 hp at 124,0 rpm Manufacturer: Akasaka Diesels Ltd. |
|
Propellers |
1x Fixed pitch propeller Manufacturer: Nakashima Propeller Co., Ltd. |
|
Boilers |
1x Auxiliary oil fired boiler - 9,0 MPa 1x Exhaust gas economizer - 14,0 MPa Manufacturer: Miura Co., Ltd. |
|
Generators |
3x Main diesel generatorsets each 600 kW Manufacturer: Nishishiba Electric Co., Ltd. |
|
Bow thruster |
1x 700 kW |
|
Number of tanks |
20 |
|
Cargo tank capacity |
22.325,33 m³ |
|
Number of pumps |
20x Cargo pumps each 250 m³/h |
|
Tank capacities |
Fresh water: 895,36 m³ Fuel oil: 989,61 m³ Lub oil: 110,51 m³ Ballast: 7.122,74 m³ Diesel oil: 181,00 m³ |
|
Lifting equipment |
1x Hose handling crane - SWL 10,0 t 1x Provision davit - SWL 1,2 t Manufacturer: Kyoritsu Kikai Co., Ltd. |
|
Crew |
24 |
|
Commercial manager |
CMB NV De Gerlachekaai 20 2000 Antwerpen Belgium |
|
ISM manager |
Anglo-Eastern Shipmanagement 16-02, Southpoint, 200, Cantonment Road Singapore 089763 Republic of Singapore |
|
Registered owner |
Blue Wave Line SA Care of Doun Kisen Co Ltd (Doun Kisen KK) , 1307-8, Namikata, Namikata-cho, Imabari-shi, Ehime-ken, 799-2101 Japan |
|
Latest data adjustment |
15 November 2022 |
