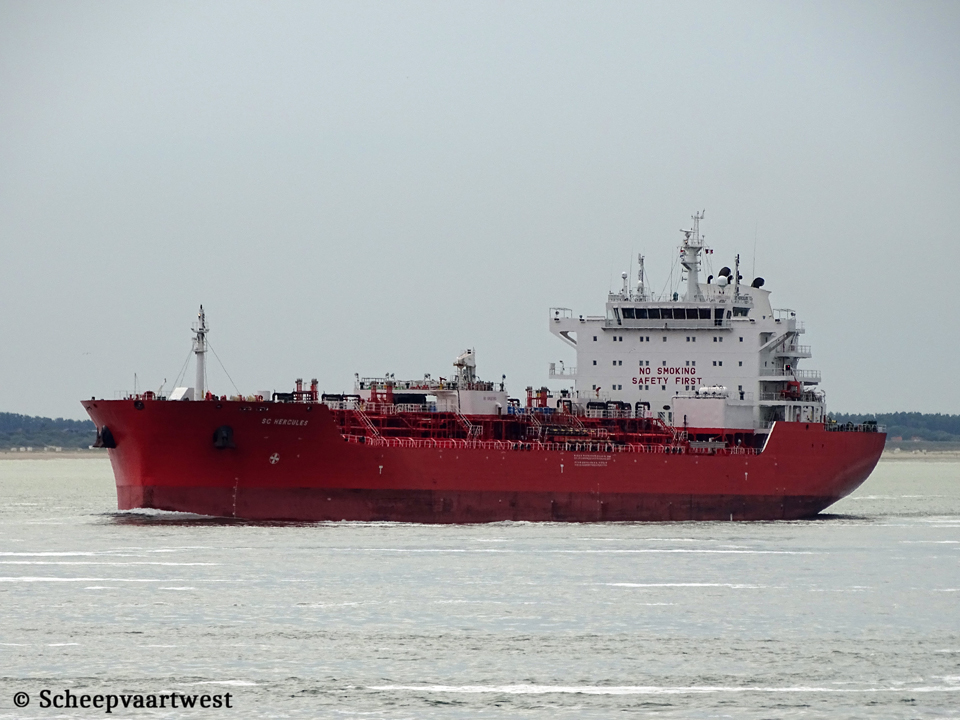

| Westerschelde 27 May 2018 |
|
Name |
SC HERCULES |
|
Type |
Chemical tanker |
|
IMO-number |
9752046 |
|
Flag |
Hong Kong - China |
|
Port of registry |
Hong Kong |
|
GT |
26.364 t Suez: 27.703,42 t |
|
DWT |
40.847,3 t |
|
NT |
11.405 t Panama: 22.066 t Suez: 24.081,99 t |
|
Displacement |
52.046,7 t |
|
Lightship |
11.146 t |
|
Length |
182,72 m overall 177,31 m between perpendiculars |
|
Breadth |
32,01 m moulded |
|
Draught |
Summer: 11,10 m |
|
Keel to mast end |
46,58 m |
|
Forecastle |
18,40 m |
|
Poop |
39,20 m |
|
Deckhouse |
29,60 m |
|
Freeboard |
4.623 mm |
|
Depth |
15,71 m moulded |
|
Speed |
Service: 12,0 knots Max: 150 knots |
|
Built |
2017 |
|
Keel laid |
22/12/2015 |
|
Launch date |
30/11/2016 |
|
Date of completion |
19/07/2017 |
|
Builder |
Jiangsu Hantong Wing Heavy Industry Co. Ltd. Follow River's Indsutrial Area Ligang Town, Tongzhou City, Nantong, 226361 China |
|
Yard number |
HT-CT38-005 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Watertight bulkheads |
17 |
|
Continuous decks |
1x Upper deck |
|
Main engine |
1x Hyundai/MAN-B&W 6S50ME-B9.5 - 2 stroke 6 cylinder 500 x 1.810 mm combustion engine Mcr 7.610 kW / 10.347 hp at 104,0 rpm Builder: Hyundai Heavy Industries Co., Ltd. |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
2x Auxiliary oil fired boiler - 8,5 bar Manufacturer: Miura Co., Ltd. - Japan 1x Auxiliary composite boiler - 8,0 bar Manufacturer: Jiangyin Sanjie Industry Co., Ltd. |
|
Generators |
3x Main diesel generatorsets each 1.250 kW |
|
Bow thruster |
1x 1.084 kW |
|
Number of cargo tanks |
30 |
|
Cargo tank capacity 100% |
43.847,3 m³ |
|
Number of pumps |
14x Cargo pumps each 330 m³/h 16x Cargo pumps each 220 m³/h |
|
Number of tanks |
Ballast: 13 Fuel oil: 12 Lubricating oil: 7 Fresh water: 6 Sludge: 5 Waste water: 3 Diesel oil: 3 Chain: 2 Sewage: 1 Hydraulic oil: 1 |
|
Tank capacities 100% |
Cargo oil: 43.847,3 m³ Diesel oil: 92,40 m³ Freshwater: 1.308,2 m³ Fuel oil: 1.950,8 m³ Lube oil: 152,2 m³ Tank ballast: 15.448,15 m³ |
|
Lifting equipment |
1x Hose handling crane - SWL 10,0 t 1x Provision monorail crane - SWL 4,0 t 1 x Engine room overhead crane - SWL 4,0 t |
|
Crew |
27 |
|
Registered owner |
FPG Shipholding Panama 37 SA |
|
Renamed |
09/2018 Bow Hercules Norway, Bergen - Call sign: LAXU5 Owner: FPG Shipholding Panama 37 SA Manager: Odfjell Management AS, Bergen - Norway |
|
Latest data adjustment |
11 December 2022 |
