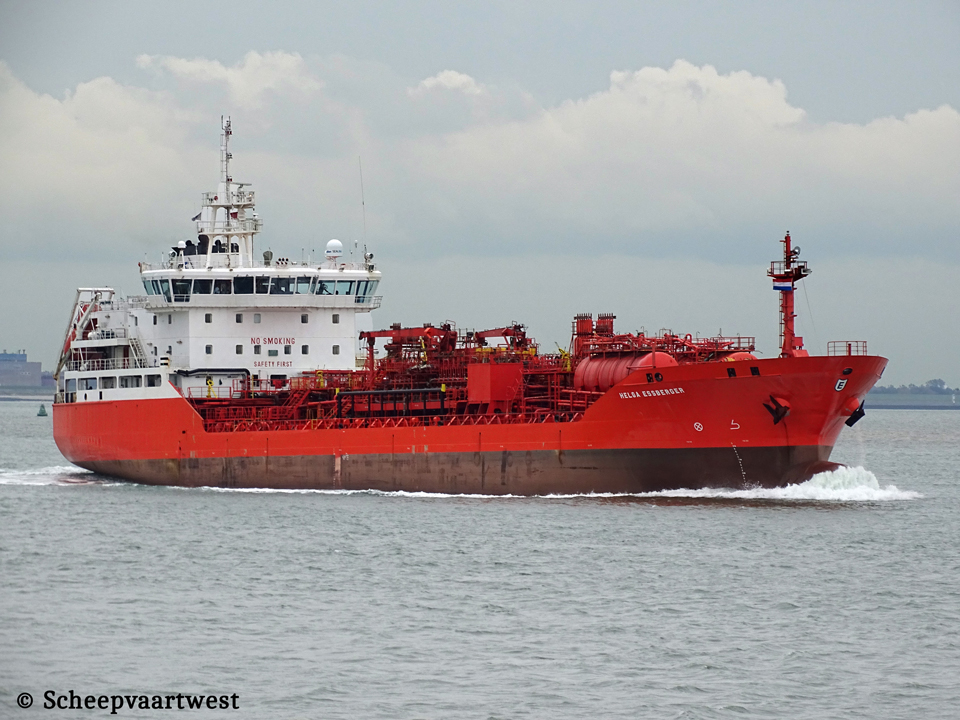

| Westerschelde 15 October 2019 |
|
Name |
HELGA ESSBERGER |
|
Previous names |
1999 - 10/2005 Isola Amaranto 2005 - 04/2008 Euro Amaranto 04/2008 - 2018 Crystal Amaranto |
|
Type |
Tank for oil & chemicals |
|
IMO-number |
9172155 |
|
Call sign |
CQAK2 |
|
Flag |
Portugal |
|
Port of registry |
Madeira |
|
Previous flags |
1999 - 2010 United Kingdom - Call sign: MNDP2 2010 - 2018 Malta, Valletta - Call sign: 9HA2160 |
|
GT |
6.785 Suez: 7.100 Panama: 5.850 |
|
DWT |
9.931 t |
|
NT |
3.500 |
|
Length |
126,76 m overall 117,20 m between perpendiculars |
|
Breadth |
19,70 m extreme |
|
Draught |
Summer: 7,74 m |
|
Keel to top of the mast |
37,50 m |
|
Depth |
9,80 m |
|
Speed |
Max.: 15,4 knots Service: 12,7 knots |
|
Built |
1999 |
|
Keel laid |
15/01/1998 |
|
Launch date |
01/09/1998 |
|
Date of completion |
20/01/1999 |
|
Builder |
Azimut Benetti Livorno Livorno Italy |
|
Yard number |
164 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Continuous decks |
1 |
|
Main engine |
1x Wärtsilä 8L38 - 4 stroke 8 cylinder 380 x 475 mm combustion engine 5.280 / 7.179 hp kW at 600 rpm |
|
Propellers |
1x Controllable pitch propeller |
|
Shaft generator |
1x 950 kW |
|
Generators |
3x Main diesel generatorsets each 775 kW |
|
Emergency generator |
1x Diesel generatorset 350 kW |
|
Bow thruster |
1x 780 bhp / 550 kW |
|
Number of cargo tanks |
22 + 2 deck tanks |
|
Total tank capacity 98% |
10.893 m³ - whereof 2 deck tanks each 125 m³ |
|
Segregations |
24 |
|
Number of pumps |
22x Deepwell cargo pump each 200 m³/h 2xDeepwell cargo pump each 100 m³/h |
|
Manifolds |
Centre manifold to deck: 3,60 m Centre manifold to stern: 68,76 m Centre manifold to bow: 58,00 m Centre manifold to rail: 4,40 m |
|
Tank capacities |
Fuel oil: 479,5 m³ Diesel oil: 105,5 m³ |
|
Lifting equipment |
2x Hose handling cranes - SWL 5,0 t 1x Hose handling crane - SWL 2,0 t |
|
ISM & commercial manager |
Essberger JT GmbH Palmaille 45 22767 Hamburg Germany |
|
Registered owner |
Helga Essberger Tankreederei GmbH & Co KG Care of John T Essberger GmbH & Co KG Palmaille 45 22767 Hamburg Germany |
|
Latest data adjustment |
23 December 2022 |
