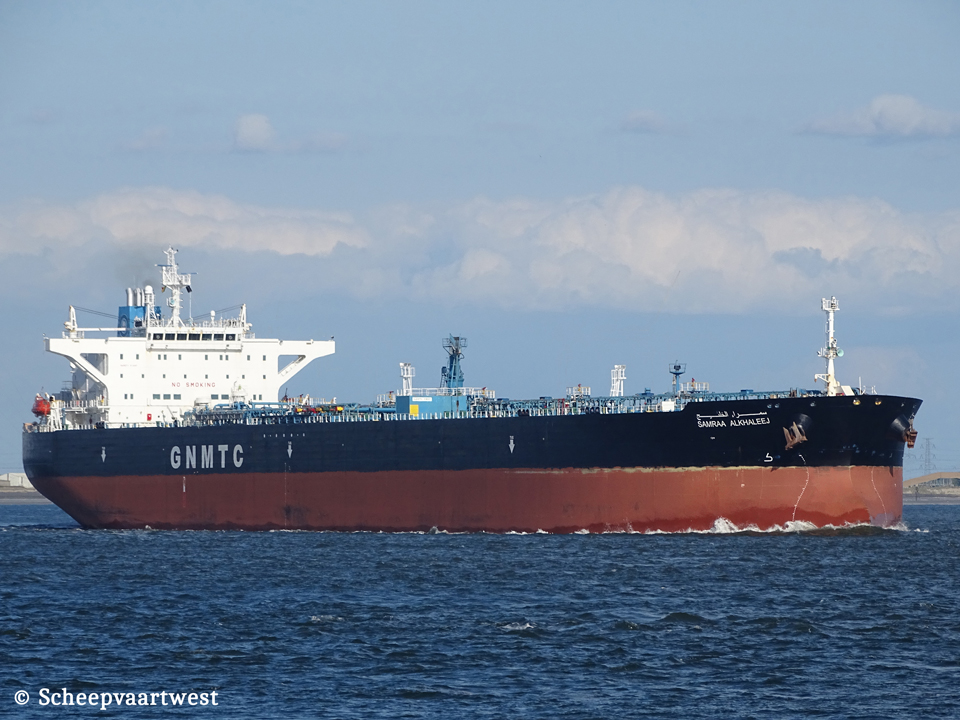

Samraa Alkhaleej IMO 9331141 01
Westerschelde 23 April 2017


Name

SAMRAA ALKHALEEJ

Previous names

2006 - 01/2009 Spike

Type

Crude oil tanker - Aframax

IMO-number

9331141

Call sign

5AXG

Flag

Libya

Port of registry

Misurata

Previous flags

2006 - 2009 Malta, Valletta - Call sign: 9HOK8

GT

61.348 t

DWT

114.858 t

NT

35.445 t

Length

248,99 m overall

240,70 m between perpendicular

Breadth

43,84 m extreme

43,00 m moulded

Draught

13,60 m

Air draft

41,55 m

Deckhouse

8,80 m

Freeboard

Summer: 6.118 mm

Depth

21,30 m moulded

Speed

Service: 14,7 knots

Built

2006

Date of completion

26/07/2006

Builder

Samsung Heavy Industries Co. Ltd., Koje Shipyard

South Korea

Yard number

1592

Hull material

Steel

Hull type

Double hull

Bulkheads

7

Continuous decks

1

Main engine

1x MAN- B&W/Doosan 7S60MC Mk VI - 7 cylinder combustion engine 13.060 kW / 17.514 bhp at 101,0 rpm

Propellers

1x Fixed pitch propeller

Generators

3x Yanmar 8N21L-SV main diesel generatorsets each 800 kW

Number of tanks

12

Cargo tank capacity

No.1 C.O.T(P) - 8.364,90 m³

No.1 C.O.T(S) - 8.364,90 m³

No.2 C.O.T(P) - 11.029,20 m³

No.2 C.O.T(S) - 11.029,20 m³

No.3 C.O.T(P) - 11.033,70 m³

No.3 C.O.T(S) - 11.033,70 m³

No.4 C.O.T(P) - 11.033,70 m³

No.4 C.O.T(S) - 11.033,70 m³

No.5 C.O.T(P) - 11.033,70 m³

No.5 C.O.T(S) - 11.033,70 m³

No.6 C.O.T(P) - 10.698,50 m³

No.6 C.O.T(S) - 10.698,50 m³

Total: 126.387,40 m³

Tank capacities

Ballast: 40.926 m³

Lifting equipment

1x Crane,- SWL 16,0 t

E/R overhead crane - SWL 3,2 t

Provision cane - SWL 2,0 t

Provision crane - SWL 4,0 t

Manager

Executive Shipmanagement

Hong Kong

China

Registered owner

Philadelphia Navigation Ltd.

Care Of General National Maritime Transport Co (GNMTC)

Mahlet Alwahda Alarabia

Gergarish Road, Abu Nawas

Tripoli

Libya

Previous names & owners

2006 - 01/2009 Spike - Spike Shipping Ltd. - Malta

Renamed

01/2023 Vela Rain

Cook Islands, Avatiu - Call sign: E5U4617

Owner: Shivshai Marine Ltd.

Operator: Radiating World Shipping Services LLC

Latest data adjustment

03 February 2023
