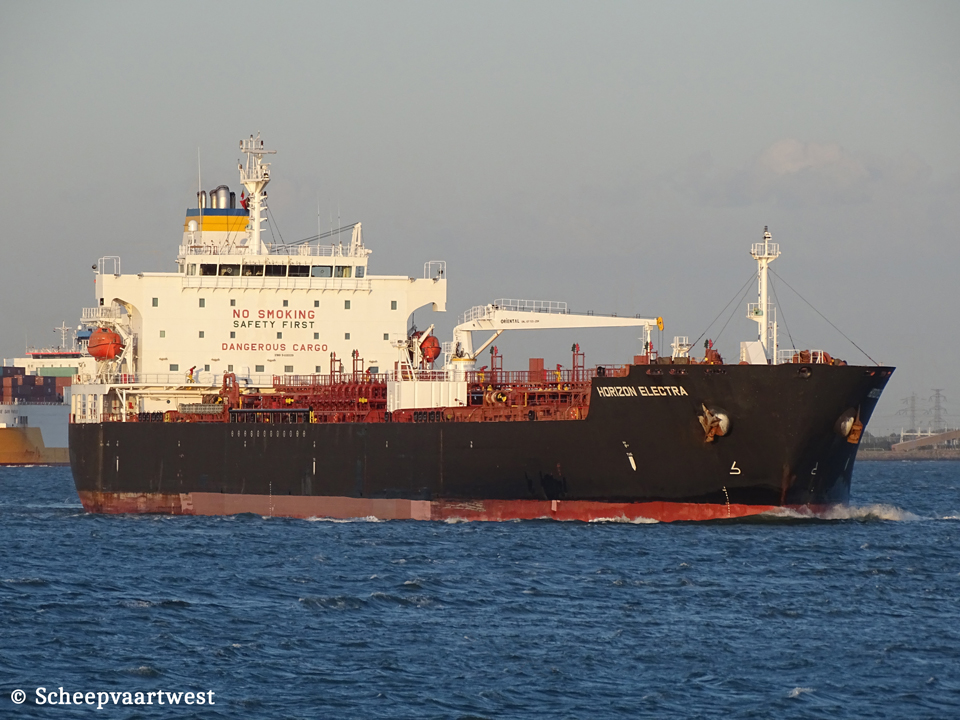

| Westerschelde 07 August 2019 |
|
Name |
HORIZON ELECTRA |
|
Previous names |
2008 - 2014 Horizon Electra 2014 - 2015 Harbour Star |
|
Type |
Chemical / Products tanker |
|
IMO-number |
9418119 |
|
Call sign |
V7FH4 |
|
Flag |
Marshall Islands |
|
Port of registry |
Majuro |
|
Previous flags |
2008 - 2014 Republic of Singapore, Singapore City - Call sign: 9VBM2 |
|
GRT |
29.734 t Suez: 31.136,11 t |
|
DWT |
Summer: 51.068,6 t Winter: 49.646,3 t |
|
NRT |
13.645 t Suez: 26.595,23 t Panama: 24.682 t |
|
Displacement |
Summer: 62.801,7 t Winter: 59.957,1 t |
|
Length |
183,00 m overall 173,90 m between perpendiculars |
|
Breadth |
32,23 m extreme |
|
Draught |
Summer: 13,15 m Winter: 12.88 m |
|
Keel to mast end |
45,80 m |
|
Air draft |
Lightship: 43,70 m Normal ballast: 38,94 m At loaded summer deadweight: 33,29 m |
|
Depth |
19,10 m moulded |
|
Speed |
14,8 knots |
|
Built |
2008 |
|
Keel laid |
07/11/2007 |
|
Date of completion |
25/02/2008 |
|
Builder |
STX Shipbuilding Co. Ltd. Jinhae South Korea |
|
Yard number |
2052 |
|
Hull material |
Steel - Part higher tensile steel |
|
Hull type |
Double hull |
|
Continuous decks |
1 |
|
Main engine |
1x MAN-B&W 6S50MC - 2 stroke 6 cylinder 500 x 2.000 mm combustion engine 9.480 kW / 12.889 hp at 127,0 rpm |
|
Propellers |
1x Fixed pitch propeller |
|
Number of tanks |
12 + 2 slop tanks |
|
Cargo tank capacity 98% |
COT 1 Port/Stbd: 6.149,712 m³ COT 2 Port/Stbd: 9.230,697 m³ COT 3 Port/Stbd: 9.411,991 m³ COT 4 Port/Stbd: 9.415,379 m³ COT 5 Port/Stbd: 9.402,987 m³ COT 6 Port/Stbd: 8.509,712 m³ Slops Port/Stbd: 1.401,831 m³ Total: 52.120,47 m³ |
|
Slop tank capacity 98% |
1.401,83 m³ |
|
Number of segregations |
7x Double valve incl slops |
|
Number of pumps |
12x Framo hydraulic driven deepwell cargo pumps each 600 m³/h 2x Framo hydraulic driven deepwell cargo pumps each 300 m³/h 2x Framo hydraulic driven centrifugal puimps each 750 m³/h |
|
Manifolds |
Bow to centre manifold: 91,18 m Stern to centre manifold: 91,82 m Distance bridge front to centre of manifold: 59,24 m Distance between cargo manifold centres: 2.000 mm Distance ships rail to manifold: 4.600 mm Distance manifold to ships side: 4.600 mm Top of rail to centre of manifold: 4?450 mm Distance main deck to centre of manifold: 2.100 mm |
|
Tank capacities |
IFO: 1.270,3 m³ MGO: 419 m³ |
|
Lifting equipment |
1x Crane - SWL 10,0 t Outreach of crane: 9,00 m |
|
Commercial manager |
Horizon Tankers Ltd. SA 24, Kaningos Street 185 34 Piraeus Greece |
|
ISM manager |
V Ships UK Ltd. 5th Floor, The Skypark, 8, Elliot Place Glasgow, G3 8EP United Kingdom |
|
Registered owner |
Glenbrook Navigation Ltd., Majuro - Marshall Islands Care of Horizon Tankers Ltd. SA 24, Kaningos Street 185 34 Piraeus Greece |
|
Latest data adjustment |
06 February 2023 |
