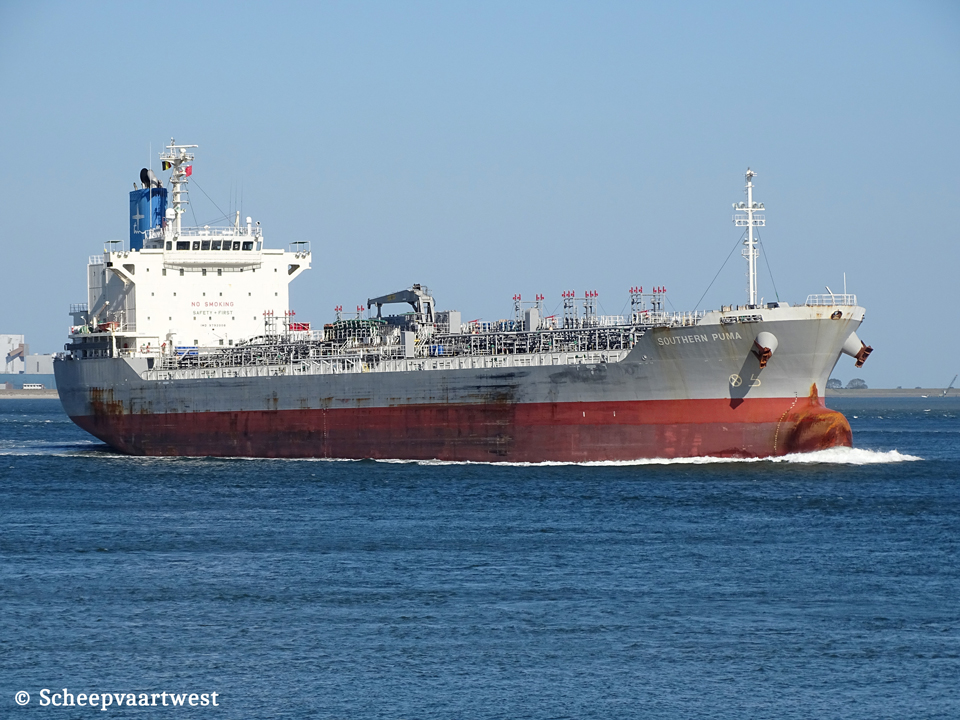

| Westerschelde 28 May 2020 |
|
Name |
SOUTHERN PUMA |
|
Type |
Chemical tanker |
|
IMO-number |
9792008 |
|
Call sign |
D5MM9 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
GRT |
14.965 t Suez: 15.768 t |
|
DWT |
Summer: 26.071 t |
|
NRT |
8.108 t Suez: 13.686 t Panama: 12.547 t |
|
Light ship |
7.115 t |
|
Length |
156,53 m overall |
|
Breadth |
25,00 m moulded |
|
Draught |
Summer: 10,61 m |
|
Moulded L x B x D |
149,00 x 25,00 x 14,00 m |
|
Registered L x B x D |
149,07 x 25,00 x 14,00 m |
|
Keel to mast end |
42,43 m |
|
Freeboard |
Summer: 3.417 mm |
|
Depth |
14,00 m moulded |
|
Speed |
Service: 13,5 knots Max: 15,2 knots |
|
Built |
2016 |
|
Keel laid |
28/10/2015 |
|
Launch date |
16/09/2016 |
|
Date of completion |
20/12/2016 |
|
Builder |
Asakawa Shipbuiding Co., Ltd. - Imabari Yard Japan |
|
Yard number |
617 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Continuous decks |
1 |
|
Main engine |
1x MAN-B&W/Hitachi 6S46ME-B8 - 2 stroke single acting 6 cylinder 460 x1.932 mm combustion engine Mcr 5.640 kW / 7.668 hp at 110, rpm Manufacturer: Hitachi Zosen Corporation Innoshima Works - Japan |
|
Propeller shaft |
1x Sea water lubrication shaft Diameter: 450 mm |
|
Propellers |
1x Fixed pitch propeller- aft at 110,0 rpm |
|
Boilers |
1x Auxiliary vertical boiler - 0,98 MPa Evaporation: 18,42 t/h Manufacturer: Miura Co., Ltd. |
|
Generators |
3x Yanmar 6EY18ALW - 4 stroke 6cylinder 180 x 280 mm diesel engines each Mcr 615 kW connected with generators each 550 kW |
|
Bow thruster |
1x Tunnel thruster 690 kW / 938 bhp, forward |
|
Number of tanks |
26 |
|
Cargo tank capacity 98% |
Liquid: 27.108 m³ |
|
Number of pumps |
16x Cargo pumps each 300 m³/h 8x Cargo pumps each 200 m³/h |
|
Manifolds |
Normal ballast waterline to manifold: 10,251 m Rail to manifold: 6,15 m Bow to centre of manifold: 78,76 m |
|
Tank capacities |
Fuel oil: 1.528,58 m³ Fresh water: 367,89 m³ Ballast: 8.300 m³ |
|
Lifting equipment |
1x Hose handling crane - SWL 15,0 t. |
|
Crew size |
19 |
|
Manager |
Sansho Kaiun Co., Ltd. Tatsumi Building, 8-7, Iidabashi 3-chome, Chiyoda-ku Tokyo, 102-0072 Japan |
|
Registered owner |
Southern Dragon Chemical SA |
|
Latest data adjustment |
18 February 2023 |
