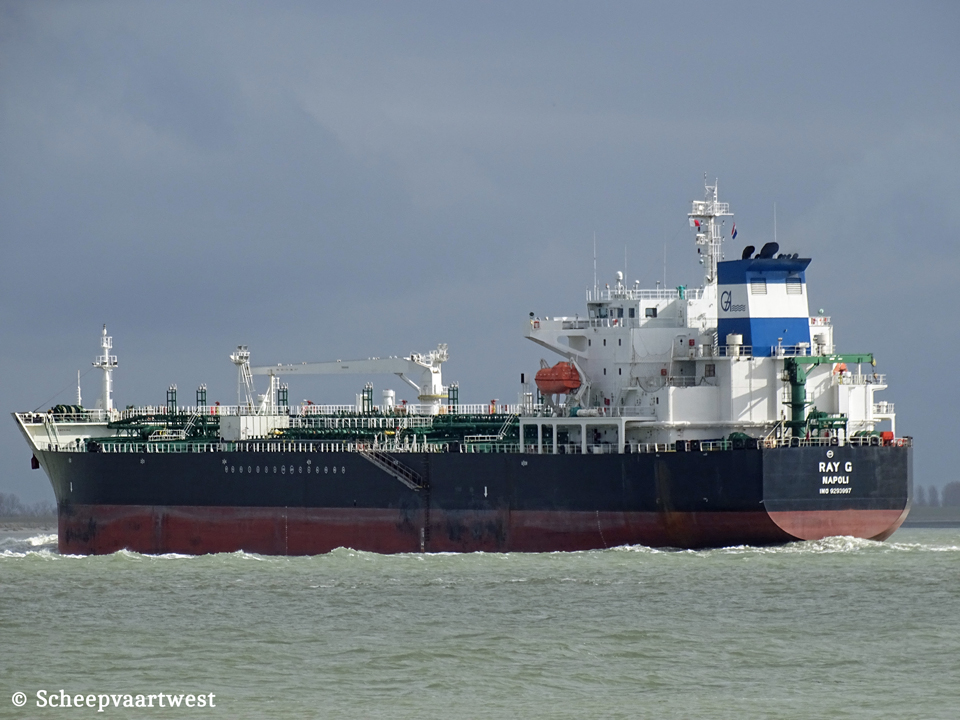

Ray G IMO 9293997 01
Westerschelde 04 March 2016


Name

RAY G

Type

Chemical/Oil products tanker

IMO-number

9293997

Call sign

IBXM

Flag

Italy

Port of registry

Napoli

GT

25.431 t

Suez: 26.845,84 t

DWT

Summer: 40.158 t

NT

10.019 t

Suez: 22.554,06 t

Displacement

49.258,43 t

Light weight

9.200 t

Length

175,98 m overall

168,00 m between perpendiculars

Breadth

31,00 m moulded

Draught

Summer: 11,12 m

Keel to mast end

43,53 m

Depth

17,20 m moulded

Speed

15,0 knots

Built

2006

Date of completion

27/01/2006

Builder

Shina Shipbuilding Co. Ltd.

Head Office 227, Donam-Dong Tongyeong Gyeongnam, 650-150

South Korea

Yard number

443

Hull material

Steel

Hull type

Double hull

Main engine

1x MAN-B&W/STX 7S50MC-C - 2 stroke 7 cylinder 500 x 2.000 mm combustion engine 11.060 kW at 127,0 rpm

Manufacturer: STX Engine Ltd.

Build: 18/08/2005

Propellers

1x Fixed pitch propeller

Boilers

1x Auxiliary oil fired water tube boiler Mission OL - 9,0 MPa

1x Composite oil fired water tube boiler Mission OC - 9,0 MPa

Generators

4x Main diesel generatorsets each 757 kW / 400 Volt 60 Hz

Number of tanks

12 + 2 slop tanks

Cargo tank capacity 100%

55.440,14 m³

Number of slop tanks

2

Number of pumps

12x Cargo pumps each 500 m³/h

Tank capacities

Ballast: 23.027,09 m³

Lub oil: 106,47 m³

Fresh water: 363,83 m³

Fuel oil: 1.549,48 m³

Diesel oil: 242,18 m³

Lifting equipment

1x Engine room crane - SWL 2,8 t

1x Hose handling - SWL 10,0 t

1x Hose handling/Provision crane - SWL 3,0 t

Manager

Gestioni Armatoriali SpA

Via Magazzini Posteriori 55 F-G

48122 Ravenna RA

Italy

Registered owner

Gestioni Armatoriali SpA

Via Magazzini Posteriori 55 F-G

48122 Ravenna RA

Italy

Renamed

2018 Astrea

Malta, Valletta - Call sign: 9HA493

Reg. owner: Sictus 10 Ltd., 185 38 Piraeus - Greece

Manager: Chandris Hellas Inc., 185 38 Piraeus - Greece

Latest data adjustment

04 May 2023
