| Westerschelde 11 May 2018 |
|
Name |

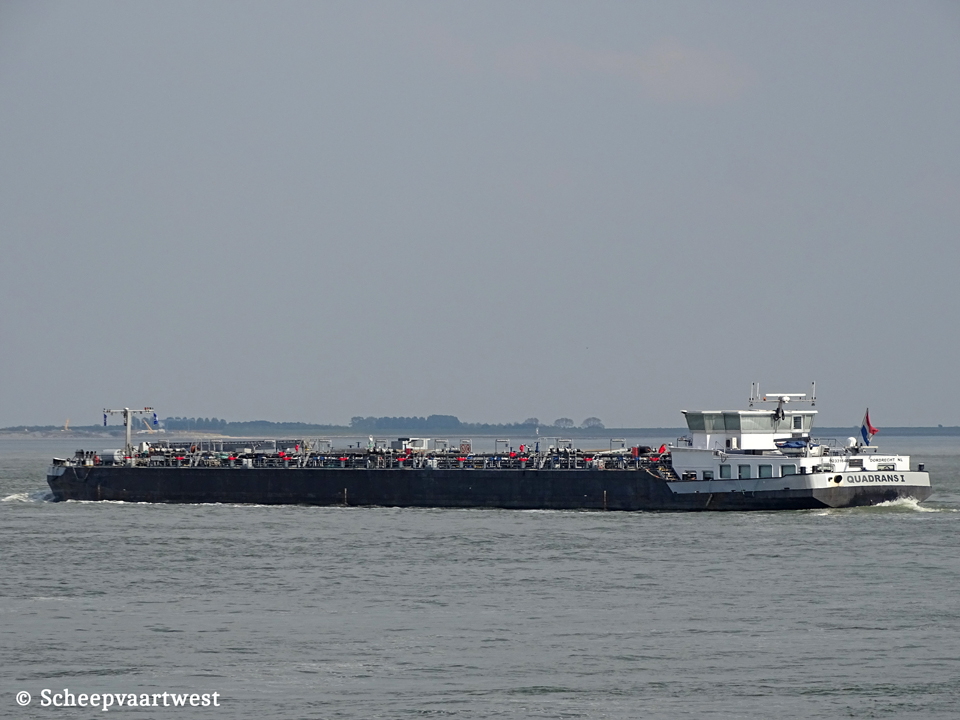

QUADRANS I |
|
Type |
Inland tanker |
|
ENI-number |
02331646 |
|
Call sign |
PB3004 |
|
Flag |
The Netherlands |
|
Port of registry |
Dordrecht |
|
Tonnage |
3.233 t |
|
Length |
110,00 m overall 106,22 m between perpendiculars |
|
Breadth |
11,45 m extreme |
|
Draught |
3,77 m |
|
Depth |
5,40 m moulded |
|
Built |
2009 |
|
Keel laid |
01/11/2007 |
|
Date of completion |
07/07/2009 |
|
Builder casco |
Dazheng Shipbuilding Co. Dalian China Yard number: BZ07-01-01 |
|
Builder completion |
Veka Werkendam The Netherlands |
|
Hull material |
Steel |
|
Continuous decks |
1 |
|
Main engine |
1x Caterpillar 3512 (C) DI-TA electronic combustion engine 1.349 kW / 1.836 hp at 1.600 rpm |
|
Propellers |
1x 5 blades - Diameter: 1.800 mm |
|
Generators |
1x Cummins QSK 19M diesel engine connected with Marathon 573 RSL 4034 generator 660 kVA 2x Perkins 4.4 TWGM diesel engines connected with Marathon 362 CSL 1606 generators each 85 kVA |
|
Bow thruster |
1x Cummins - Verhaar Omega-Jet 31130 - 750 hp at 1.800 rpm |
|
Cargo tank capacity |
3.800 m³ |
|
Number of pumps |
2x EPS500 screw spindle pumps each 500 m³/h connected with electric motors each 230 kW 2x EPS10 screw spindle pumps each 10 m³/h connected with electric motors each 7,5 kW |
|
Owner |
Quadrans Shipping BV Maxwellstraat 35 3316 GP Dordrecht The Netherlands |
|
Latest data adjustment |
16 May 2023 |
