| Westerschelde 31 July 2016 |
|
Name |

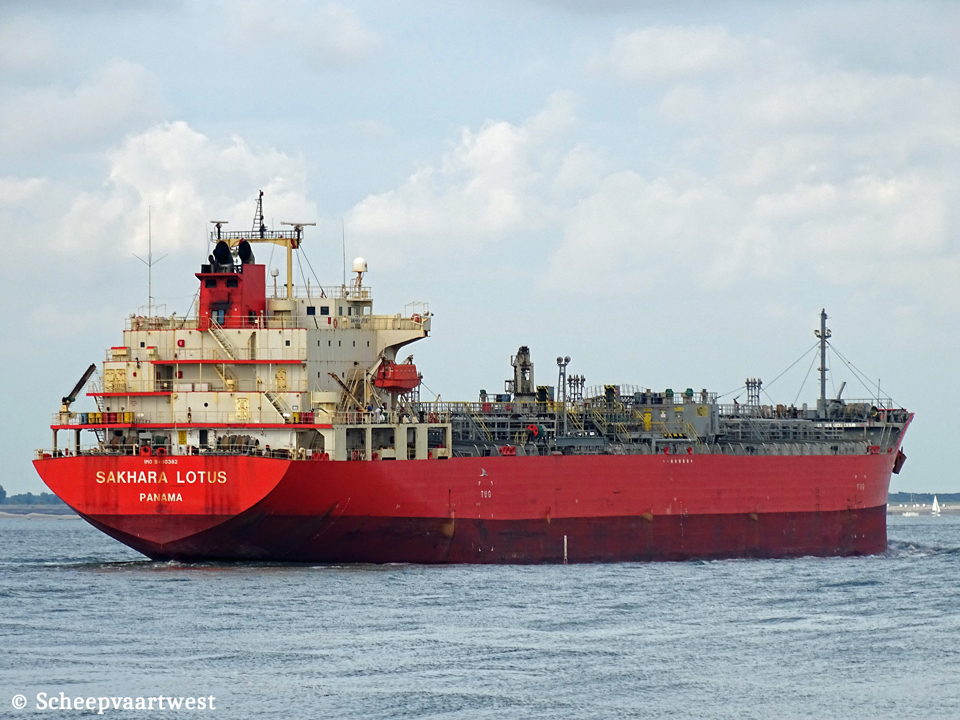

SAKHARA LOTUS |
|
Type |
Oil/Chemical carrier |
|
IMO-number |
9400382 |
|
Call sign |
3FAB7 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GRT |
19.572 t |
|
DWT |
Summer: 32.107 t Winter: 31.186 t |
|
NRT |
9.141 t Suez: 18.405 t Panama: 16.343 t |
|
Displacement |
Summer: 39.943 t Winter: 40.876 t |
|
Lightship |
7.836 t |
|
Length |
170,00 m overall |
|
Breadth |
26,00 m moulded |
|
Draught |
Summer: 10,92 m Winter: 10,69 m |
|
Moulded L x B x D |
162,00 x 26,60 x 16,00 m |
|
Registered L x B x D |
162,88 x 26,60 x 16,00 m |
|
Freeboard |
Summer: 5.114 mm Winter: 5.341 mm |
|
Depth |
16,00 m |
|
Speed |
Max: 15,8 knots |
|
Built |
2009 |
|
Keel laid |
25/11/2008 |
|
Launch date |
27/03/2009 |
|
Date of completion |
17/08/2009 |
|
Builder |
Kitanihon Shipbuilding Co., Ltd. Hachinohe Japan |
|
Yard number |
387 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x Akasaka/Mitsubishi - 2 stroke single acting 6 cylinder 500 x 1.950 mm combustion engine 8.670 kW at 127,0 rpm Manufacturer: Akasaka Diesels Ltd. - Japan |
|
Propeller shaft |
1x Oil lubrication shaft with monitoring device Diameter: 460 mm |
|
Propellers |
1 |
|
Boilers |
1x Auxiliary vertical boiler - 0,90 MPa Evaporation: 16;64 t/h Manufacturer: Miura Co., Ltd. |
|
Generators |
4x Generatorsets total 3.875 kVA |
|
Number of cargo tanks |
10 |
|
Cargo tank capacity 100% |
38.006,51 m³ |
|
Number of slop tanks |
2 |
|
Number of pumps |
10x Framo cargo pumps each 330 m³/h 2x Framo cargo pumps each 220 m³/h |
|
Tank capacities |
Ballast: 13.305 m³ Fuel oil: 1.835 m³ Fresh water: 420 m³ |
|
Crew size |
19 |
|
Manager |
Fleet Management Ltd Hong Kong |
|
Registered owner |
Shintoku Panama SA Republic of Panama |
|
Latest data adjustment |
21 May 2023 |
