| Westerschelde 13 August 2016 |
 |
|
| Westerschelde 14/05/17 | |
|
Name |

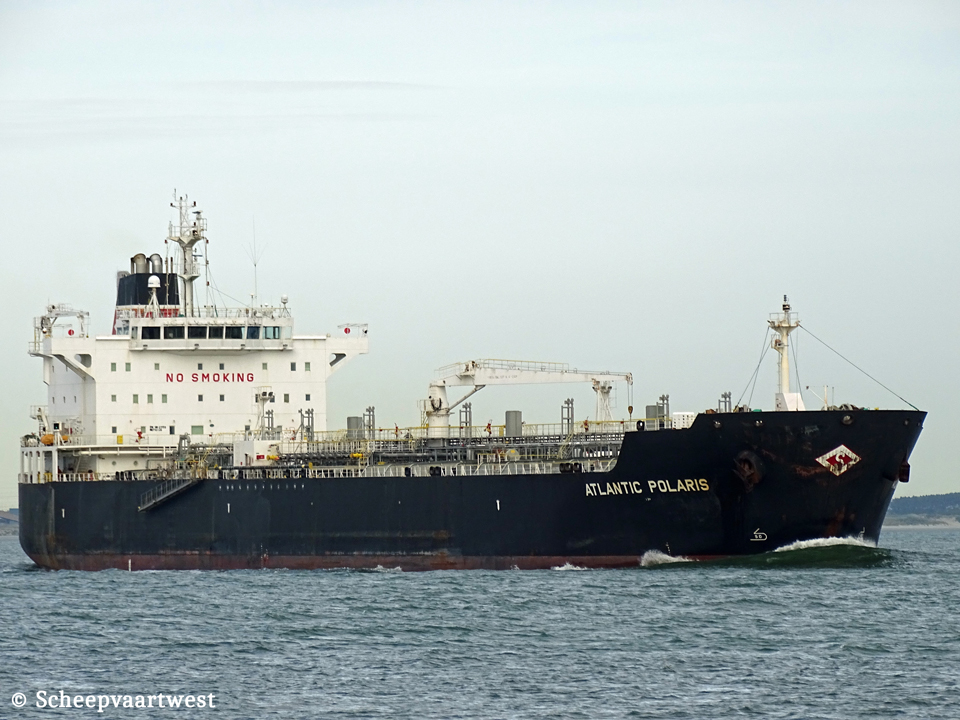

ATLANTIC POLARIS |
|
Type |
Chemical & oil tanker |
|
IMO-number |
9392779 |
|
Call sign |
VRFA2 |
|
Flag |
Hong Kong - China |
|
Port of registry |
Hong Hong |
|
GT |
29.307 t Suez: 30.897,57 t |
|
DWT |
49.999 t |
|
NT |
13.129 t Suez: 27.318,64 t Panama: 24.333 t |
|
Displacement |
59.151 t |
|
Length |
183,21 m overall 174,00 m between perpendiculars |
|
Breadth |
32,20 m moulded |
|
Draught |
Summer: 12,22 m |
|
Freeboard |
6.066 mm |
|
Depth |
18,80 m moulded |
|
Speed |
Max: 15,2 knots |
|
Built |
2009 |
|
Keel laid |
11/11/2008 |
|
Launch date |
12/01/2009 |
|
Delivery date |
16/03/2009 |
|
Builder |
Hyundai Mipo Dockyard Co. Ltd. 100 Bangeojinsunhwan-Doro Dong-Gu Ulsan South Korea |
|
Yard number |
2045 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Bulkheads |
Non tight: 1 Water tight: 7 Oil tight: 8 |
|
Continuous decks |
1 |
|
Main engine |
1x HHI/MAN-B&W 6S50MC-C - 2 stroke 6 cylinder 500 x 2.000 mm combustion engine Mcr 9.480 kW at 127,0 rpm Manufacturer: HHI - Engine & Machinery Division |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Water tube boiler - 9,0 MPa 1x Exhaust gas economizer - 7,0 MPa Manufacturer: Kangrim Heavy Industry Co., Ltd. |
|
Generators |
3x Main diesel generatorsets each 730 kW Manufacturer: HHI, Electro Electric Systems |
|
Number of cargo tanks |
12 |
|
Cargo tank capacity |
Seg#1: 6.763,8 m³ (1p/s) Seg#2: 9.138,8 m³ (2p/s) Seg#3: 9.317,6 m³ (3p/s) Seg#4: 9.317,6 m³ (4p/s) Seg#5: 9.300,8 m³ (5p/s) Seg#6: 8.068,2 m³ (6p/s) Seg#7: 1.174,8 m³ (slop p/s) Total: 51.907 m³ |
|
Number of slop tanks |
2 |
|
Slop tank capacity |
1.174,8 m³ |
|
Number of pumps |
12 Framo cargo pumps each 600 m³/h 2x Framo cargo pumps each 300 m³/h 2x Framo ballast pumps each 900 m³/h |
|
Maximum loading & discharging rate |
3.600 m³/h |
|
Tank capacities |
Ballast: 23.892,70 m³ Lub oil: 104,90 m³ Hydraulic oil: 17,90 m³ Fuel oil: 1.436,70 m³ Diesel oil: 261,70 m³ Fresh water: 292,80 m³ |
|
Lifting equipment |
1x Hose handling crane - SWL 10,0 t 1x Engine room crane - SWL 2,0 t 1x Provision crane - SWL 2,0 t |
|
Crew size |
25 |
|
ISM manager |
Univan Ship Management Ltd. 35th Floor, Citicorp Centre, 18, Whitfield Road, North Point Hong Kong - China |
|
Commercial manager |
Trafigura Maritime Logistics Pte Ltd. c/o Trafigura Maritime Ventures ltd, Greek branch 171 173 Vouliagmenis Ave. Glyfada 166 74 Athens Greece |
|
Registered owner |
Heroic Hologium Inc. Block 1, 15/F, Lippo Centre, 89 Queensway, Admiralty Hong Kong - China |
|
Latest data adjustment |
11 June 2023 |
