| Westerschelde 24 March 2019 |
|
Name |

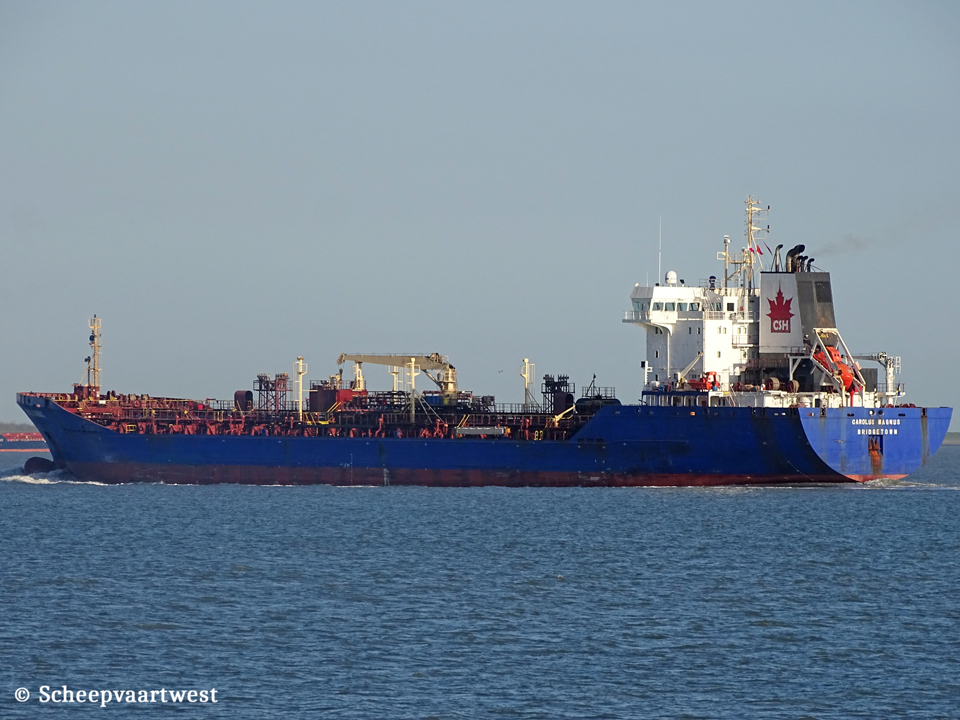

CAROLUS MAGNUS |
|
Previous names |
2007 Launch as: HLL Celltic 2007 - 2016 MCT Breithorn 2016 - 2017 SCT Breithorn |
|
Type |
Tanker of oil product and chemicals |
|
IMO-number |
9298375 |
|
Call sign |
8PAN5 |
|
Flag |
Barbados |
|
Port of registry |
Bridegetown |
|
Previous flags |
2007 - 2017 Switzerland, Basel - Call sign: HBHC |
|
GT |
12.776 t |
|
DWT |
Summer: 20.635,63 t |
|
NT |
6.673 t |
|
Length |
164,34 m overall 155,39 m between perpendiculars |
|
Breadth |
23,21 m extreme 23,00 m moulded |
|
Draught |
Max: 9,79 m |
|
Keel to mast end |
39,83 m |
|
Depth |
12,80 m moulded |
|
Speed |
Max: 15,5 knots |
|
Built |
2007 |
|
Keel laid |
29/12/2004 |
|
Launch date |
19/06/2007 |
|
Date of completion |
05/12/2007 |
|
Builder |
China Changjiang Shipping Group Qingshan Shipyard Wuhan China |
|
Yard number |
QS2003 0403 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x MAN-B&W/Yichang Marine Diesel 6S46MC-C - 2 stroke 6 cylinder 460 x 1.932 mm combustion engine 7.860 kW / 10.686 hp |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Thermal oil heater, exhaust heated EXV 7-32-36-57, 0-1200 SD 1x Thermal oil heater, oil fired V4-TFO-015 1x Thermal oil heater, oil fired V5-TFO-040 |
|
Generators |
1x MAN-B&W 5L23/30 H main diesel generatorset 600 kW 2x MAN-B&W 6L23/30 H main diesel generatorsets each 910 kW |
|
Emergency generator |
1x MAN D2866 TE 20 SHPD diesel generatorset |
|
Bow thruster |
749 kW |
|
Number of cargo tanks |
16 + 2 slop tanks |
|
Cargo tank capacity |
22.011 m³ |
|
Number of pumps |
6x Cargo pumps each 500 m³/h 10x Cargo pumps each 300 m³/h |
|
Tank capacities |
Ballast: 7.512,5 m³ |
|
Anchor equipment |
Length: 797,50 m Diameter: 58 mm |
|
Commercial manager |
CMI Canada Maritime Inc. 1109, autoroute Chomeday Ouest Laval QC H7W 5G3 Canada |
|
ISM manager |
Clearwater Ship Management BV Scheepvaartweg 9 3356 LL Papendrecht The Netherlands |
|
Registered owner |
Carolus Magnus Marine Corp. Care of CMI Canada Maritime Inc. 1109, autoroute Chomeday Ouest Laval QC H7W 5G3 Canada |
|
Latest data adjustment |
11 August 2023 |
