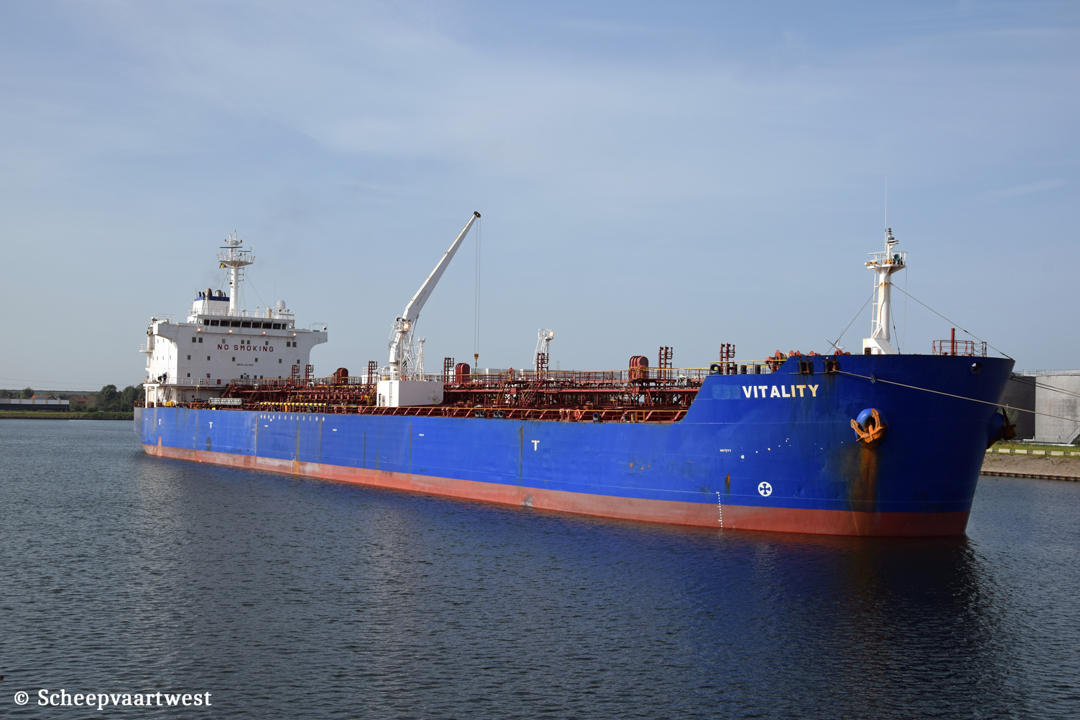

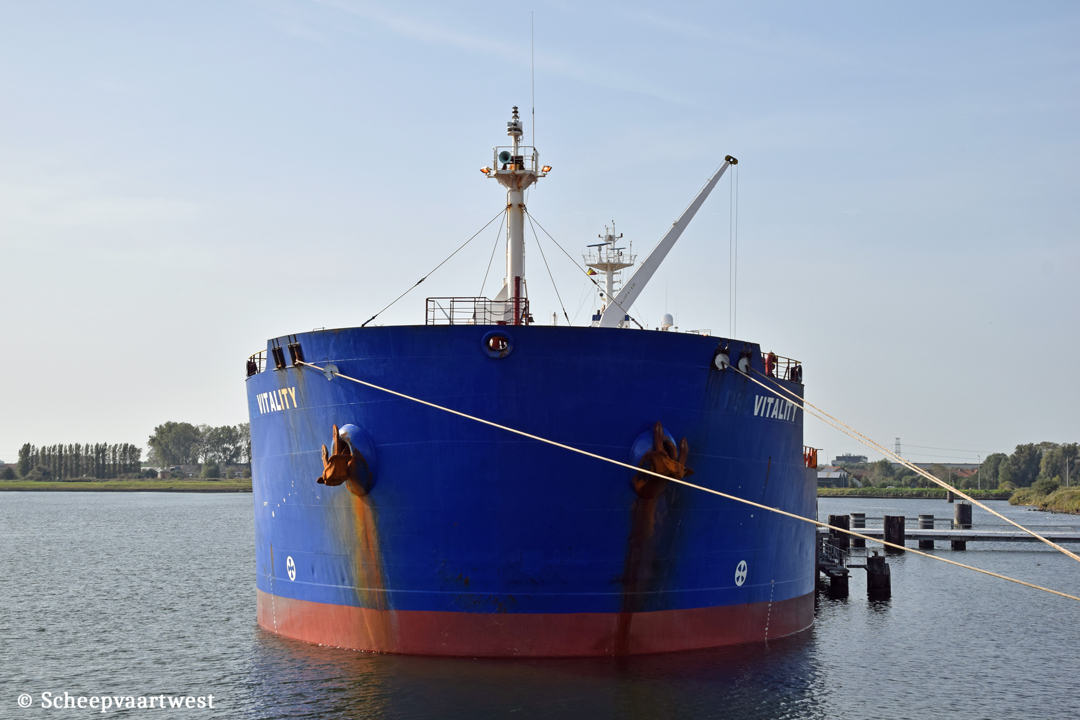

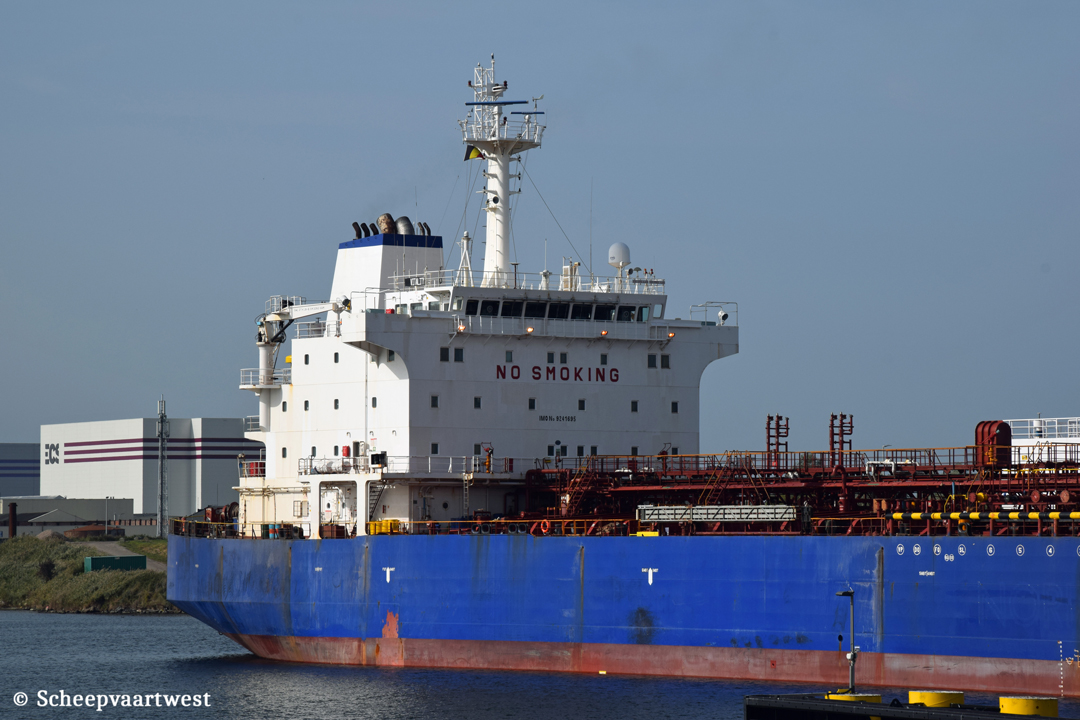

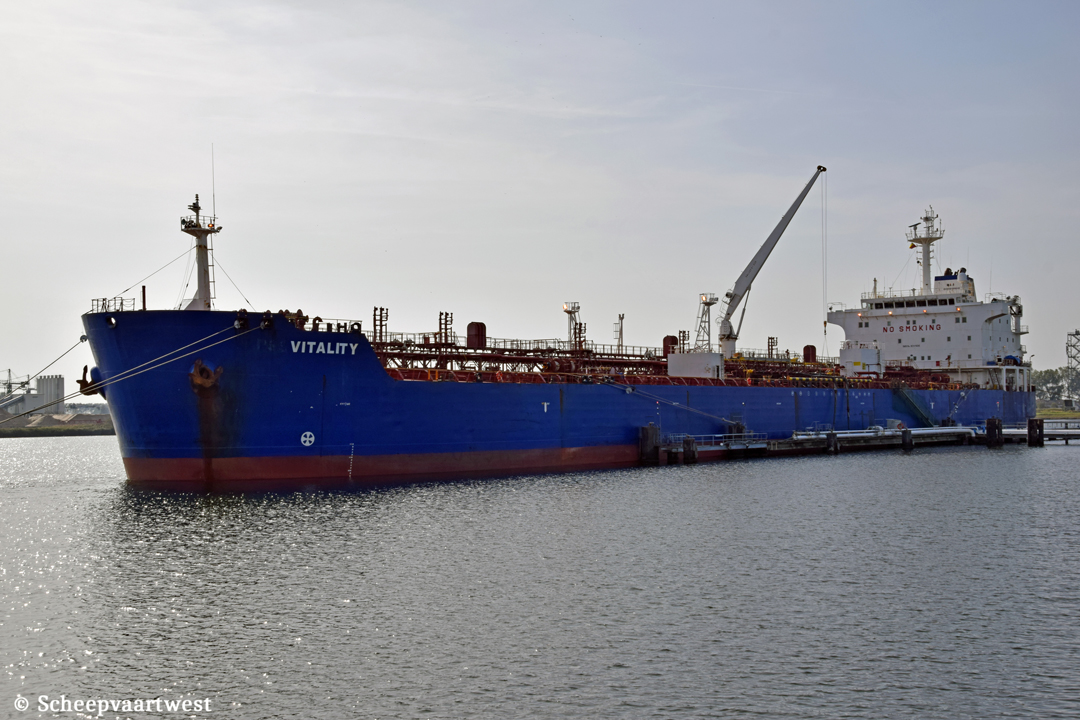

| Zeebrugge 08 October 2023 |
 |
 |
 |
||
| Zeebrugge 08/10/23 | Zeebrugge 08/10/23 | Zeebrugge 08/10/23 | ||
|
Name |
VITALITY |
|
Previous names |
2002 - 2022 Kerel 2022 - 2022 TSS Vitality 2022 - 2022 PSS Vitality |
|
Type |
Oil product tanker- Handysize |
|
IMO-number |
9241695 |
|
Call sign |
3E4004 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
Previous flags |
2002 - 2004 G.D. Luxembourg 2004 - 2022 Malta, Valletta - Call sign: 9HXJ7 |
|
GT |
23.232 t Suez: 24.43625 t |
|
DWT |
Summer: 37.297 t |
|
NT |
10.079 t Suez: 21.713,79 t Panama: 19.353 t |
|
Length |
182,55 m overall 173,63 m between perpendiculars |
|
Breadth |
27,34 m extreme |
|
Draught |
Summer: 11,21 m |
|
Keel to masthead |
46,10 m |
|
Air draft |
Lightship: 43,70 m Normal ballast: 39,34 m At loaded summer deadweight: 34,88 m |
|
Freeboard |
Summer: 5.514 mm Winter: 5.750 mm |
|
Depth |
16,70 m moulded |
|
Speed |
15,0 knots ballast 15,5 knots laden |
|
Built |
2002 |
|
Keel laid |
09/07/2001 |
|
Date of completion |
07/01/2002 |
|
Builder |
Hyundai Mipo Dockyard Co., Ltd. 100 Bangeojinsunhwan-Doro Dong-Gu Ulsan South Korera |
|
Yard number |
0013 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Watertight compartments |
8 |
|
Continuous decks |
1 |
|
Main engine |
1x Hyundai/MAN-B&W 6S50MC-C - 2 stroke 6 cylinder 500 x 2.000 mm combustion engine engine 9.480 kW / 12.880 hp at 127 rpm Built: 2001 Builder: Hyundai Heavy Ind Co., Ltd. - Engine & Mach Div. Ulsan - South Korea |
|
Propellers |
1x Screw propeller solid - aft at 127 rpm |
|
Boilers |
1x Steam boiler, oil fired - 9,0 bar Heating surface: 110,0 m² Manufacturer: Aalborg 1x Steam boiler, exhaust gas heated - 12,0 bar Heating surface: 418,00 m² Manufacturer: Kang Rim Heavy Ind. Co., Ltd. Pohang Factory |
|
Electric installations |
Power voltage: 450 V Lighting voltage: 220 V Frequency: 60 Hz |
|
Generators |
3x Hyundai/Himsen main diesel generatorsets each 925 kVA - 740 kW - 1.073 hp |
|
Emergency generator |
1x Diesel generatorset 225 kVA - 180 kW - 314 hp |
|
Compressed air receivers |
2x Receivers each 4.500 litres - 30,0 bar 1x Receiver 250 litres - 30,0 bar 1x Receiver 1500 litres - 7,0 bar 1x Receiver 150 litres - 7,0 bar |
|
Bow thruster |
1x 1.274 bhp / 950 kW |
|
Number of cargo tanks |
12x Each natural segregation with double valve |
|
Cargo tank capacity 98% |
Seg#1: 6.016,8 m³ (1w) Seg#2: 7.186,0 m³ (2w) Seg#3: 7.170,2 m³ (3w) Seg#4: 7.194,8 m³ (4w) Seg#5: 7.170,2 m³ (5w) Seg#6: 6.605,2 m³ (6w) Total: 41.343,2 m³ |
|
Number of slop tanks |
2 |
|
Slop tank capacity 98% |
964,6 m³ |
|
Number of pumps |
10x Deepwell cargo pumps each 500 m³/h 2x Deepwell cargo pumps each 450 m³/h 1x Deepwell cargo pump 70 m³/h 2x Ballast pumps each 750 m³/h |
|
Manifolds |
Bow to centre manifold: 91,55 m Stern to centre manifold: 91,00 m Distance bridge front to centre of manifold: 32,05 m Distance between cargo manifold centres: 2.000 mm Distance ships rail to manifold: 4.450 mm Distance manifold to ships side: 4.600 mm Top of rail to centre of manifold: 850 mm Distance main deck to centre of manifold: 2.100 mm |
|
Tank capacities |
Fuel oil: 1.154,1 m³ Diesel oil: 176,4 m³ Gas oil: 21,5 m³ Hydraulic oil: 37,20 m³ Lub oil: 85,70 m³ Ballast: 18.982,6 m³ Fresh water: 261,1 m³ |
|
Anchor equipment |
3x Anchors weight each 7.350 kg Length: 605,00 m |
|
Lifting equipment |
1x Engine room crane - SWL 2,0 t Manufacturer: Haean Machinery 1x Hose handling crane - SWL 10,0 t 1x Provision & Rescue boat crane - SWL 2,0 t 1x Provision crane - SWL 2,0 t Manufacturer: Dong Nam Enterprise |
|
Crew |
25 |
|
Manager |
Kaizen Ship Management India Private Limited 71/7, A-12, First Floor, Rama Road Indl. Area, Moti Nagar, New Delhi, Delhi 110015 India |
|
Registered owner |
Flyte Vitality SA |
|
Latest data adjustment |
13 October 2023 |
