| Westerschelde 05 May 2016 |
|
Name |

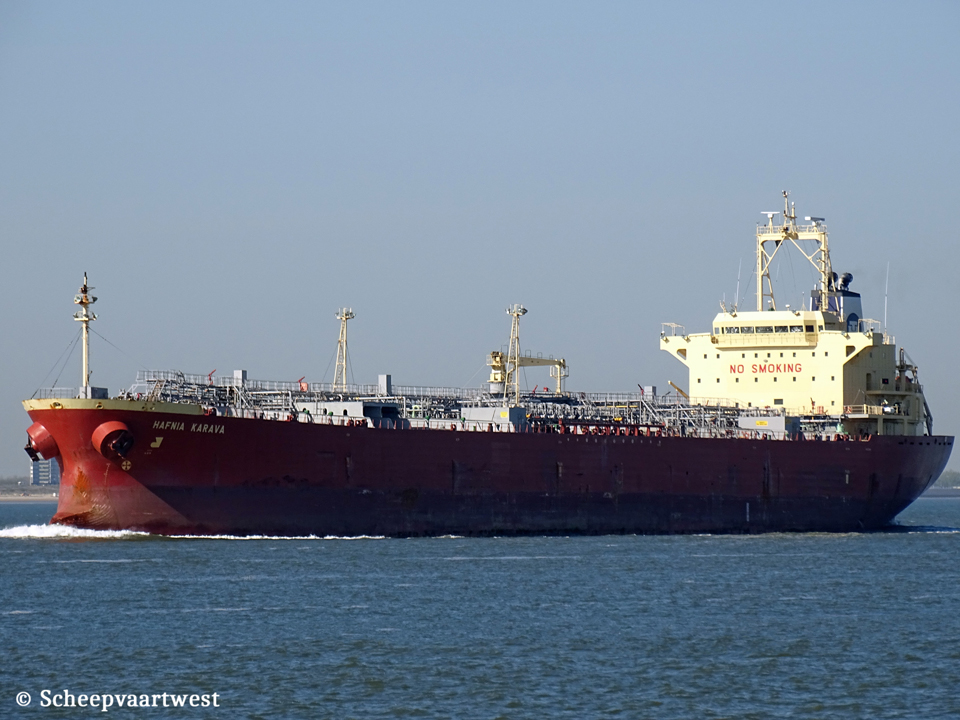

HAFNIA KARAVA |
|
Type |
Oil & chemical tanker |
|
IMO-number |
9360427 |
|
Call sign |
9V3231 |
|
Flag |
Republic of Singapore |
|
Port of registry |
Singapore City |
|
Previous flags |
2007 - 2014 Cyprus, Limassol - Call sign: C4RZ2 |
|
GRT |
22.521 t |
|
DWT |
39.988 t |
|
NRT |
11.314 t |
|
Length |
181,78 m overall |
|
Breadth |
27,42 m moulded |
|
Draught |
Summer: 11,96 m |
|
Moulded L x B x D |
173,00 x 27,42 x 16,90 m |
|
Registered L x B x D |
173,81 x 27,42 x 16,90 m |
|
Freeboard |
Summer: 4.963 mm |
|
Depth |
16,90 m moulded |
|
Speed |
Max: 15,5 knots |
|
Built |
2007 |
|
Keel laid |
13/09/2006 |
|
Launch date |
20/11/2006 |
|
Delivery date |
29/03/2007 |
|
Builder |
Saiki Heavy Industries Co., Ltd. Saiki Japan |
|
Yard number |
1158 |
|
Hull material |
Ordinary strength steel |
|
Hull type |
Double hull |
|
Bulkheads |
Water tight: 4 Oil tight: 12 |
|
Continuous decks |
1 |
|
Main engine |
1x Mitsubishi 6UEC 52LS - 2 stroke single acting 6 cylinder 520 x 1.850 mm combustion engine Mcr 7.980 kW / 10.849 hp at 120,0 rpm Manufacturer: Akasaka Diesels Limited |
|
Propeller shaft |
1x Oil lubrication shaft without monitoring device Diameter: 498 mm |
|
Propellers |
1 |
|
Boilers |
1x Auxiliary boiler (vertical oil fired) - 8,0 bar Evaporation: 16,20 t/h 1x Exhaust gas boiler - 7,0 bar Evaporation:1,06 t/h Builder: Osaka Boiler Mfg.Co., Ltd. |
|
Generators |
3x Main diesel generatorsets each 659 kW Builder: Nishishiba Electric Co., Ltd. |
|
Bow thruster |
1x 650 kW |
|
Number of cargo tanks |
12 + 2 slop tanks |
|
Cargo tank capacity 98% |
Seg#1: 5.727,24 m³ (1p,1s) Seg#2: 7.079,92 m³ (2p,2s) Seg#3: 7.177,17 m³ (3p.3s) Seg#4: 7.171,51 m³ (4p.4s) Seg#5: 7.190,19 m³ (5p,5s) Seg#6: 6.615.79 m³ (6p,6s) Total: 40.961,82 m³ excluding slop tanks |
|
Slop tanks capacity 98% |
1.259,51 m³ |
|
Number of pumps |
12x Centrifugal cargo pumps each 500 m³/h 2x Centrifugal cargo pumps each 200 m³/h 1x Centrifugal cargo pumps each 100 m³/h 2x Centrifugal ballast pumps each 600 m³/h |
|
Tank capacities |
Diesel oil: 187,64 m³ Fresh water: 335,55 m³ Fuel: 1.254,82 m³ Lube oil: 134,73 m³ Tank ballast 16.270,97 m³ |
|
Lifting equipment |
1x Hose handling crane - SWL 10,0 t Manufacturer: Mitsubishi Heavy Ind. Ltd. 1x Hose handling crane - RWL 3,0 t Manufacturer: Fujiki Co.,Ltd. 1x Provision crane - SWL 2,5 t Manufacturer: Mansei Industry Co.,Ltd. |
|
Crew size |
23 |
|
Commercial manager |
Hafnia Handy Pool Management Aps. Helleruphus Strandvejen 102 E 2900 Hellerup Denmark |
|
ISM manager |
Donnelly Tanker Managment Ltd Hartmann House, 32, Miltonos Street 3050 Limassol Cyprus |
|
Registered owner |
Hafnia Tanker Shipholding Singapore Pte Ltd. 159 Telokayerstreet Singapore 068614 Republic of Singapore |
|
Renamed |
2014 Anael Liberia, Monrovia - Call sign: 5LES2 Owner: Merville Ventures Inc. Manager: Sea Hawk Maritime S.A. |
|
Latest data adjustment |
16 November 2023 |
