| Westerschelde 05 May 2016 |
 |
|
| Westerschelde 05/05/16 | |
|
Name |

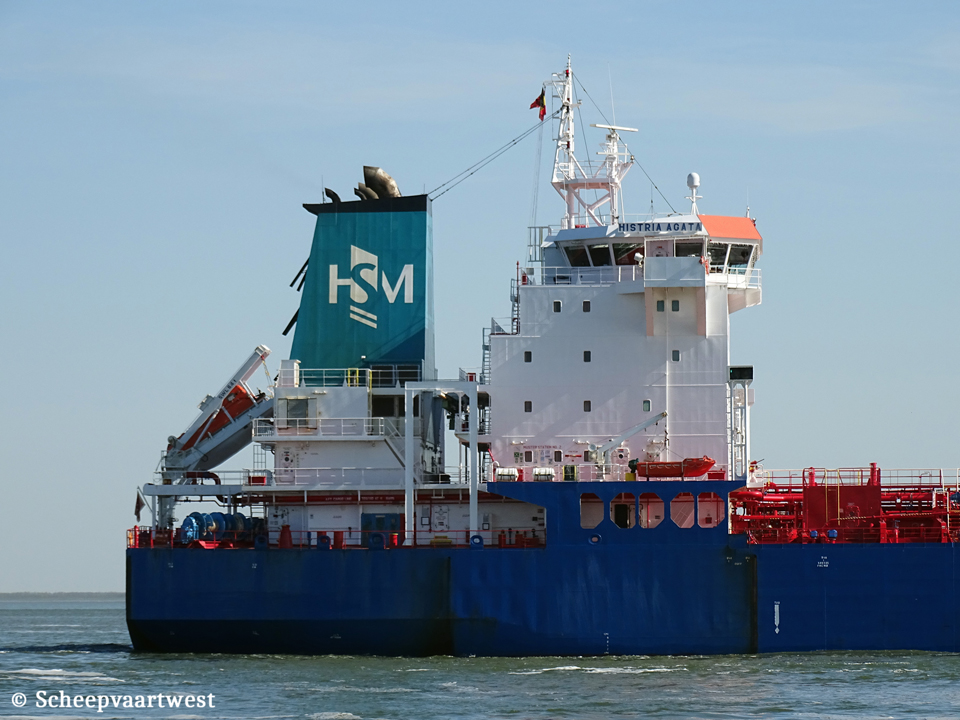

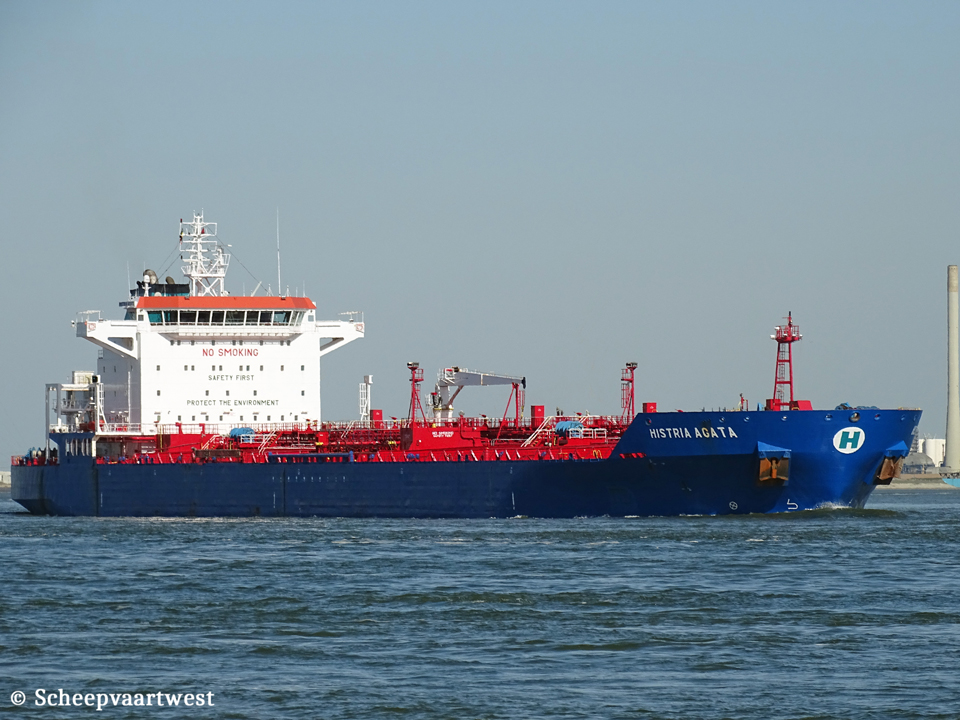

HISTRIA AGATA |
|
Type |
Oil & Chemical tanker |
|
IMO-number |
9357559 |
|
Call sign |
9HSB8 |
|
Flag |
Malta |
|
Port of registry |
Valletta |
|
GT |
25.804 t Suez: 26.357,40 t |
|
DWT |
40.439,6 t |
|
NT |
11.369 t Suez: 25.314,09 t Panama: 21.516 t |
|
Displacement |
Summer: 49.610 mt Winter: 47.279 t |
|
Length |
179,96 m overall 172,00 m between perpendiculars |
|
Breadth |
32,20 m extreme |
|
Draught |
Summer: 10,92 m Winter: 10,69 m |
|
Keel to mast end |
44,30 m |
|
Air draft |
Summer deadweight: 33,37 m Normal ballast: 37,10 m Lightship: 41,70 m |
|
Freeboard |
Summer: 5.592 mm Winter: 5.820 mm |
|
Depth |
16,50 m moulded |
|
Speed |
Ballast: Max: 15,0 knots / Economic 12,5 knots Laden: Max: 14,0 knots / Economic 12,0 knots |
|
Built |
2007 |
|
Keel laid |
30/12/2005 |
|
Launch date |
22/11/2006 |
|
Date of completion |
19/01/2007 |
|
Builder |
Santierul Naval Constanta S.A. Romania |
|
Yard number |
572 |
|
Hull material |
Steel |
|
Hull type |
Double hull - Double bottom |
|
Bulkheads |
10 |
|
Continuous decks |
1 |
|
Main engine |
1x MAN-B&W 6S50MC-C - 6 cylinder combustion engine 8.230 kW at 127,0 rpm |
|
Propellers |
1x Fixed propeller |
|
Boilers |
1x Auxiliary boiler, oil/gas fired 1x Auxiliary boiler, composite |
|
Generators |
3x Wärtsilä main diesel generatorsets each 880 kW |
|
Emergency generator |
1x Scania D9-95M diesel generatorset 200 kW |
|
Bow thruster |
1x 1.155 bhp |
|
Number of cargo tanks |
10 |
|
Cargo tank capacity |
Seg#1: 7.106,6 m³ (1P, 1S) Seg#2: 9.866,1 m³ (2P, 2S) Seg#3: 10.110,8 m³ (3P, 3S) Seg#4: 10.109,8 m³ (4P, 4S) Seg#5: 9.627,3 m³ (5P, 5S) Total liquid: 46.820,60 m³ |
|
Number of slop tanks |
2 |
|
Slop tank capacity |
Slop 6P: 395,9 m³ Slop 6S: 585,7 m³ Total: 981,60 m³ |
|
Number of pumps |
10x Framo centrifugal cargo pumps each 500 m³/h 2x Framo centrifugal cargo pumps each 200 m³/h 1x Framo centrifugal cargo pump each 150 m³/h 1x Framo centrifugal cargo pump each 80 m³/h 2x Framo centrifugal ballast pumps each 600 m³/h |
|
Manifolds |
Bow to centre manifold: 88,94 m Stern to centre manifold: 90,02 m Distance between cargo manifold centres: 2.000 mm Distance ships rail to manifold: 4.600 mm Distance manifold to ships side: 4.600 mm Top of rail to centre of manifold: 800 mm Distance main deck to centre of manifold: 1.900 mm Spill tank grating to centre of manifold: 900 mm |
|
Tank capacities |
Ballast: 17.806,5 m³ Fuel oil: 1.079,8 m³ Diesel oil: 487,7 m³ Gas oil: 424,0 m³ |
|
Anchor equipment |
Length: 660,00 m Diameter: 73 mm |
|
Lifting equipment |
1x Crane - SWL 10,0 t |
|
Crew size |
22 |
|
ISM & commercial manager |
Histria Shipmanagement Srl Oborului Street 24 900162 Constanta Romania |
|
Registered owner |
Aster Shipping Co., Ltd. 198 Old Bakery Street Valletta Malta |
|
Latest data adjustment |
16 November 2023 |
