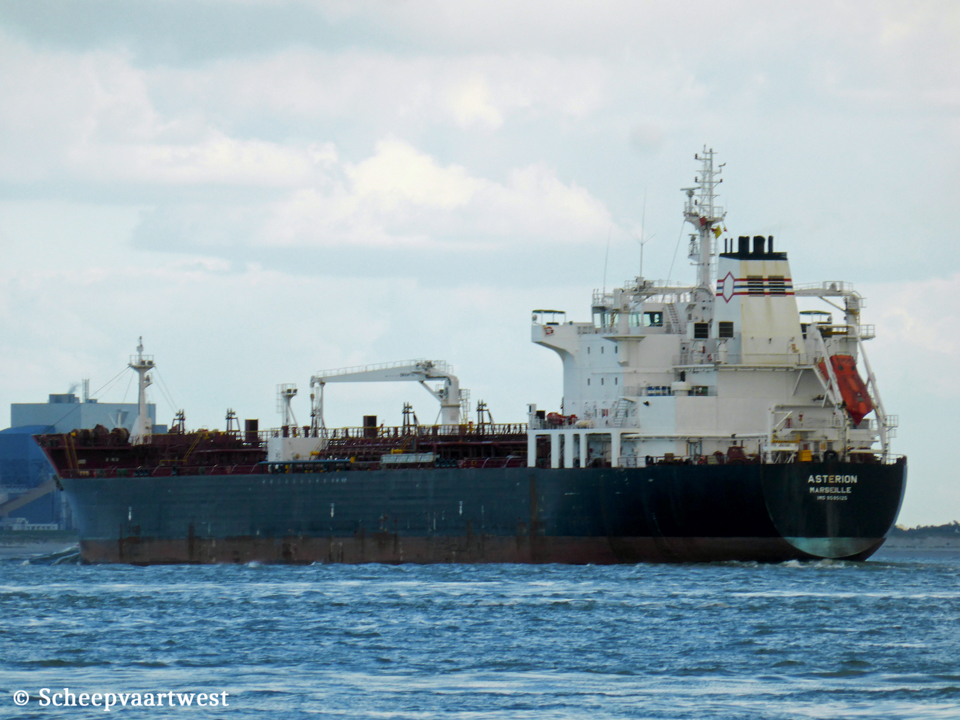

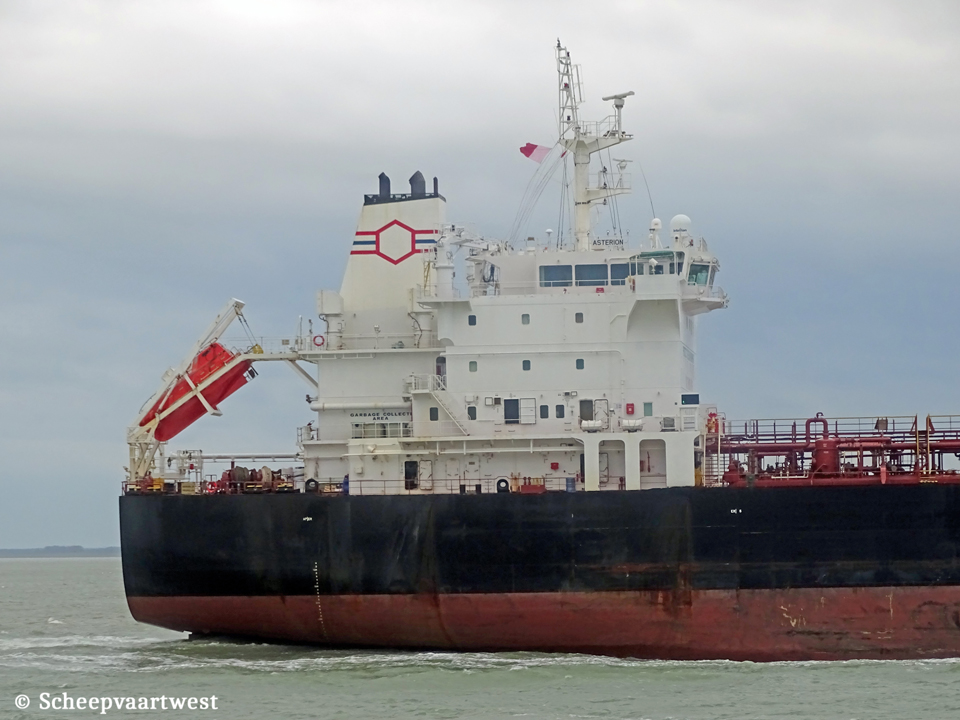

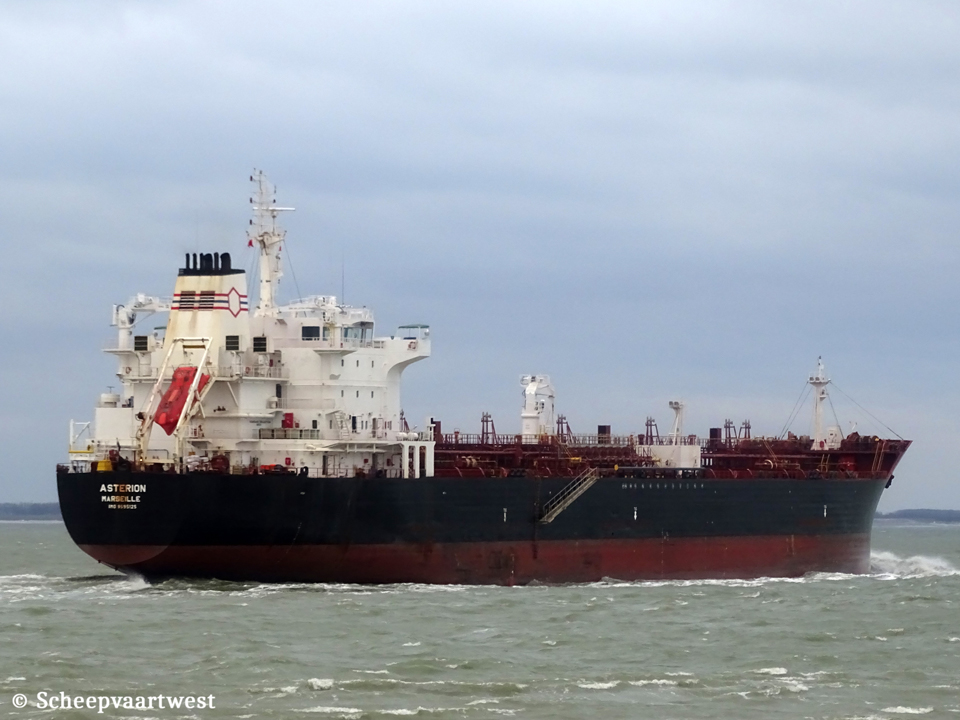

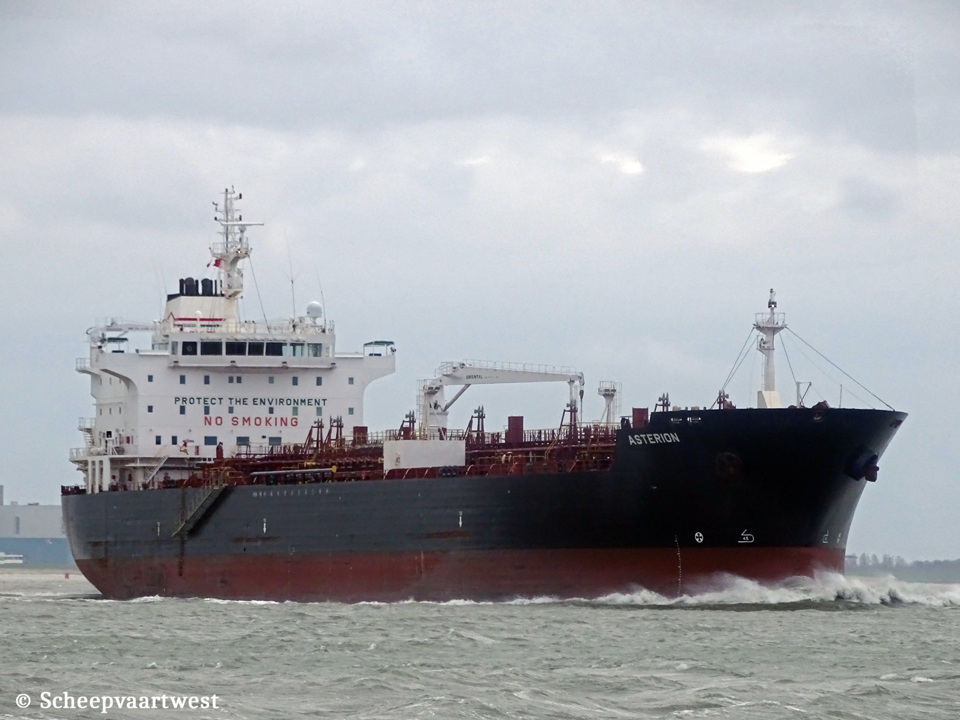

| Westerschelde 26 September 2015 |
|
Name |
ASTERION |
|
Type |
Chemical and oil product tanker |
|
IMO-number |
9595125 |
|
Call sign |
FICK |
|
Flag |
France |
|
Port of registry |
Marseille |
|
Previous flags |
2011- 2012 G.D. Luxembourg - Call sign: LXQP |
|
GT |
23.248 t |
|
DWT |
Summer: 37.583 t Winter: 36.606 t |
|
NT |
9.919 t |
|
Length |
184,00 m overall 176,00 m between perpendiculars |
|
Breadth |
27,40 m moulded |
|
Draught |
Summer: 11,51 m Winter: 11,27 m |
|
Freeboard |
Summer: 5.714 mm Winter: 5.954 mm |
|
Depth |
17,20 m moulded |
|
Speed |
Max: 15,5 knots |
|
Built |
2011 |
|
Keel laid |
18/02/2011 |
|
Date of completion |
22/06/2011 |
|
Builder |
Hyundai Mipo Dockyard Co., Ltd. Ulsan South Korea |
|
Yard number |
2313 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Watertight compartments |
9 |
|
Continuous decks |
1 |
|
Main engine |
1x Hyundai/B&W-Man 6S46MC-C8 - 2 stroke 6 cylinder 460 x 1.932 mm combustion engine 7.860 kW/ 10.679 hp at 129,0 rpm Builder: Hyundai Heavy Ind. Co., Ltd. - Engine & Mach. Div., Ulsan - South Korea |
|
Propellers |
1x Mono-block fixed pitch propeller Builder: Hyundai Heavy Industries Co., Ltd. |
|
Boilers |
1x CHO 110,00 m² / 9,0 bar 1x CHR 36,00 m² / 12,0 bar |
|
Generators |
3x Main diesel generatorsets each 925 kVA - 740 kW - 1.060 hp / 450 Volt 60 Hz |
|
Emergency generator |
1x Diesel generatorset 188 kVA - 150 kW - 245 hp |
|
Bow thruster |
1x Kawasaki 900 kW |
|
Number of tanks |
12 + 2 slop tanks (Double valve segregation: 7 Groups) |
|
Cargo tank capacity 98% |
41.864 m³ |
|
Slop tank capacity |
1.050 m³ |
|
Number of pumps |
10x Framo Deepwell cargo pumps each 500 m³/h 2x Framo Deepwell cargo pumps each at 300 m³/h 2x Framo Deepwell cargo pumps each at 200 m³/h 2x Ballast pumps each 750 m³/h |
|
Tank capacities |
Ballast: 17.953 m³ Fuel:1.331,9 m³ |
|
Anchor equipment |
Length: 605,00 m Diameter: 66 mm |
|
Lifting equipment |
1x Hose handling crane - SWL 10,0 t 2x Provision cranes - SWL 2,0 t each 1x Engine room crane - SWL 2,0 t |
|
Crew size |
25 |
|
Manager |
Socatra 9 All. de Tourny 33000 Bordeaux France |
|
Registered owner |
Sansha Shipping S.A. |
|
Latest data adjustment |
23 January 2024 |
