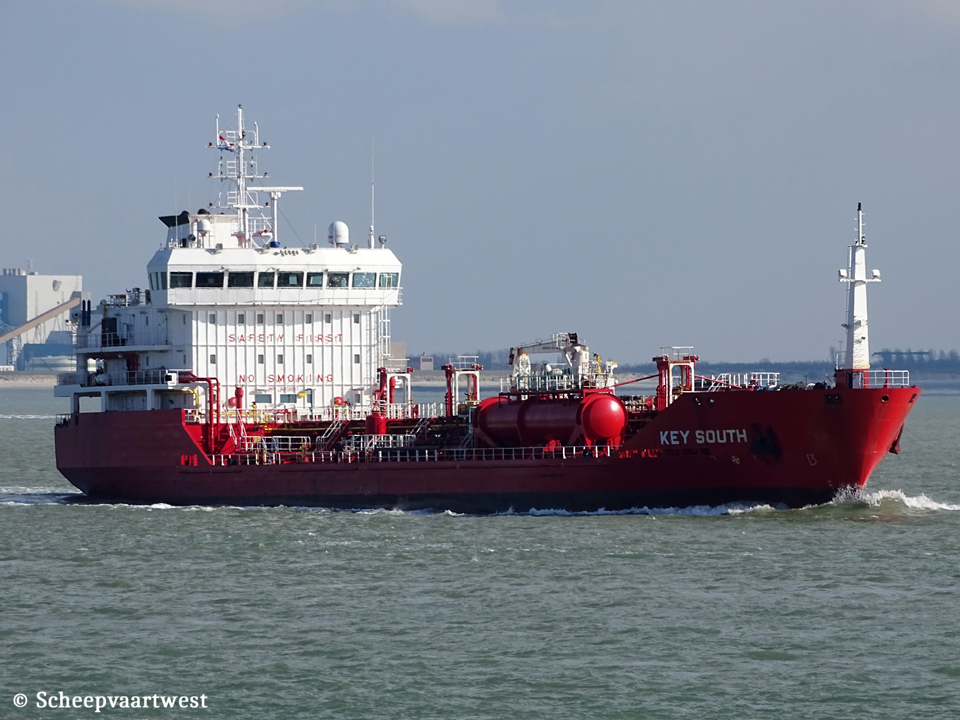

| Westerschelde 26 February 2018 |
|
Name |
KEY SOUTH |
|
Previous names |
2010 - 2016 Ekin-S |
|
Type |
Tanker for oil and chemicals |
|
IMO-number |
9479802 |
|
Call sign |
9HA2267 |
|
Flag |
Malta |
|
Port of registry |
Valletta |
|
Previous flags |
2010 - 2016 Turkey, Istanbul - Call sign: TCMW3 |
|
GT |
4.287 t |
|
DWT |
6.411,9 t |
|
NT |
1.990 t |
|
Length |
109,00 m overall 102,30 m between perpendiculars |
|
Breadth |
16,80 m moulded |
|
Draught |
Summer: 6,85 m |
|
Freeboard |
1.661 mm |
|
Speed |
14,5 knots |
|
Built |
2010 |
|
Keel laid |
30/10/2008 |
|
Date of completion |
01/02/2010 |
|
Builder |
Istanbul Tersanesi Tuzla Turkey |
|
Yard number |
019 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 6M32C - 6 cylinder 320 x 480 mm combustion engine 2.999 kW / 4.075 Hp at 600 rpm Builder: Caterpillar Motoren GmbH & Co. KG - Germany |
|
Propellers |
1x Controllable pitch propeller |
|
Boilers |
1x CHR 36,00 m² / 10,0 bar 2x CHO 40,70 m² / 10,0 bar |
|
Generators |
3x Main diesel generatorsets each 500 kVA - 400 kW - 595 hp |
|
Emergency generator |
1x Diesel generatorset 200 kVA - 160 kW - 257 hp |
|
Number of tanks |
10 + 2 slop tanks |
|
Cargo tanks capacity 98% |
Tank 1 P: 485,05 m³ Tank 1 S: 483,49 m³ Tank 2 P: 742,13 m³ Tank 2 S: 740,56 m³ Tank 3 P: 753,58 m³ Tank 3 S: 752,02 m³ Tank 4 p: 753,53 m³ Tank 4 S: 751,97 m³ Tank 5 P: 709,51 m³ Tank 5 S: 711,08 m³ Slop p: 77,59 m³ Slop S: 77,59 m³ Total: 7.038,07 m³ o,cl. Slop tanks |
|
Tank capacities |
Fuel: 380,83 m³ |
|
Commercial manager |
Sea tank Chartering AS Skuteviksboder 22 NO-5035 Bergen Norway |
|
ISM managers |
V.Ships UK Limited |
|
Owner |
Freyja AS Gate 1 Nr. 98 6701 Maaloy Norway |
|
Previous names & owners |
2010 - 2016 Ekin-S - Istanbul Denizcilik Ve Gemi Insa San.Tic. A.S. |
|
Latest data adjustment |
10 March 2024 |
