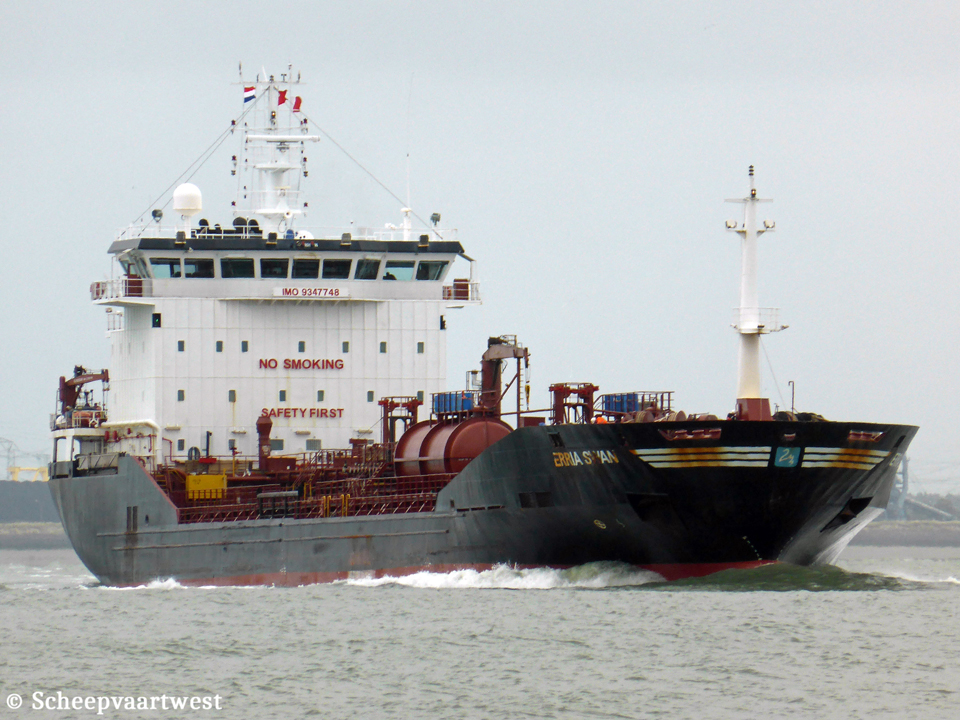

| Westerschelde 06 September 2015 |
|
Name |
ERRIA SWAN |
|
Previous names |
2006 - 2007 Alaattin Bey 2007 - 2012 Erria Helen |
|
Type |
Oil & chemical tanker |
|
IMO-number |
9347748 |
|
Call sign |
OWDI2 |
|
Flag |
Denmark |
|
Port of registry |
Middelfart |
|
Previous flags |
Malta, Valletta |
|
GT |
7.232 t |
|
DWT |
11.336 t |
|
NT |
3.643 t |
|
Light displacement |
3.989 t |
|
Length |
129,75 m overall 123,40 m between perpendiculars |
|
Breadth |
19,60 m |
|
Draught |
Summer: 8,00 m |
|
Keel to mast end |
34,00 m |
|
Depth |
10,40 m |
|
Speed |
13,5 knots |
|
Built |
2006 |
|
Date of completion |
19/04/2006 |
|
Builder |
Istanbul Tersanesi Komutanligi (Istanbul Naval Shipyard) Istanbul Turkey |
|
Yard number |
11 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Watertight compartments |
11 |
|
Continuous decks |
1 |
|
Main engine |
1x MAN-B&W 9L32/40 - 4 stroke 9 cylinder 320 x 400 mm combustion engine 4.500 kW / 6.118 hp at 750 rpm Builder: MAN B&W Diesel AG, Augsburg - Germany |
|
Propellers |
1x Controllable pitch propeller - aft at 152,0 rpm |
|
Boilers |
2x CHO Garioni 59,00 m² / 10,0 bar 1x CHR Garioni 41,40 m² / 10,0 bar |
|
Generators |
2x Main diesel generatorsets each 625 kVA - 500 kW - 280 hp 1x Main diesel generatorset 625 kVA - 500 kW - 723 hp |
|
Emergency generator |
1x Diesel generatorset 206 kVA - 165 kW - 245 hp |
|
Bow thruster |
1x 394 kW |
|
Number of tanks |
14 + 2 slop tanks |
|
Cargo tank capacity |
12.650 m³ |
|
Number of pumps |
14x Cargo pumps each 300 m³/h 1x Cargo pump 70 m³/h 2x Cargo pump each 35 m³/h |
|
Tank capacities |
Fuel: 535,5 m³ |
|
ISM & commercial manager |
Uni-Vessels ApS Turbinevej 10 5500 Middelfart Denmark |
|
Registered owner |
Erria Swan Aps Care of Uni-Tankers A/S Turbinevej 10 5500 Middelfart Denmark |
|
Latest data adjustment |
09 April 2024 |
