Name |

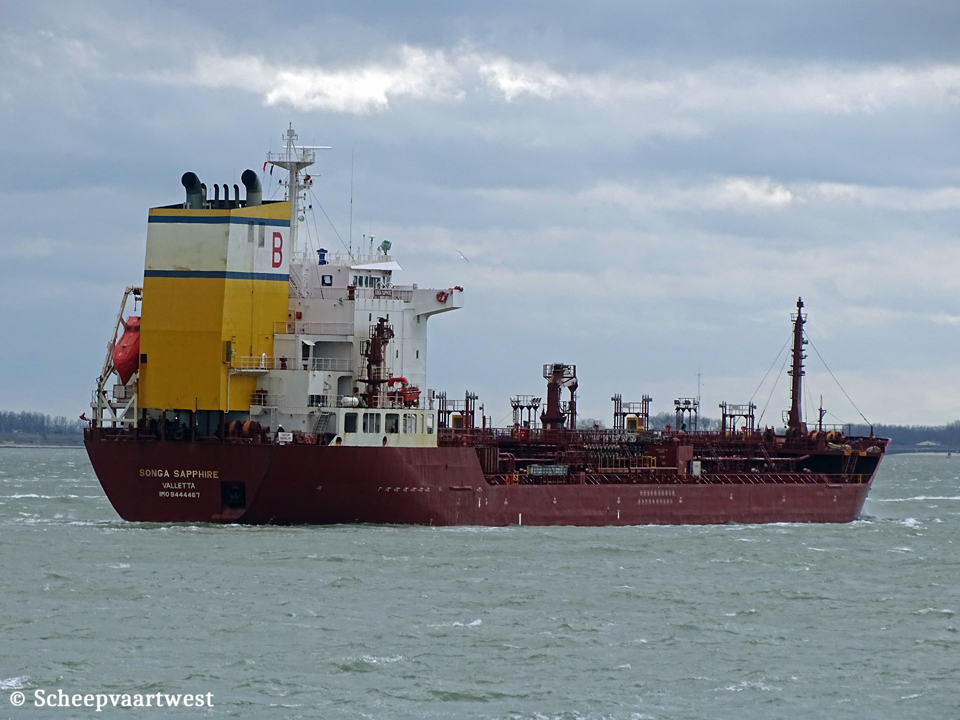

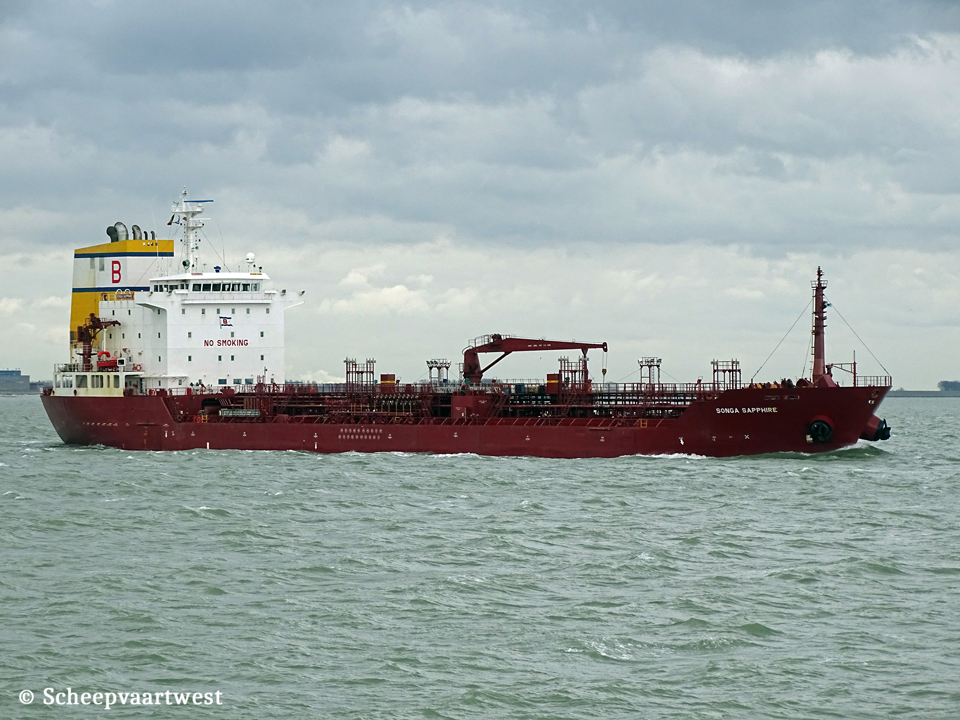

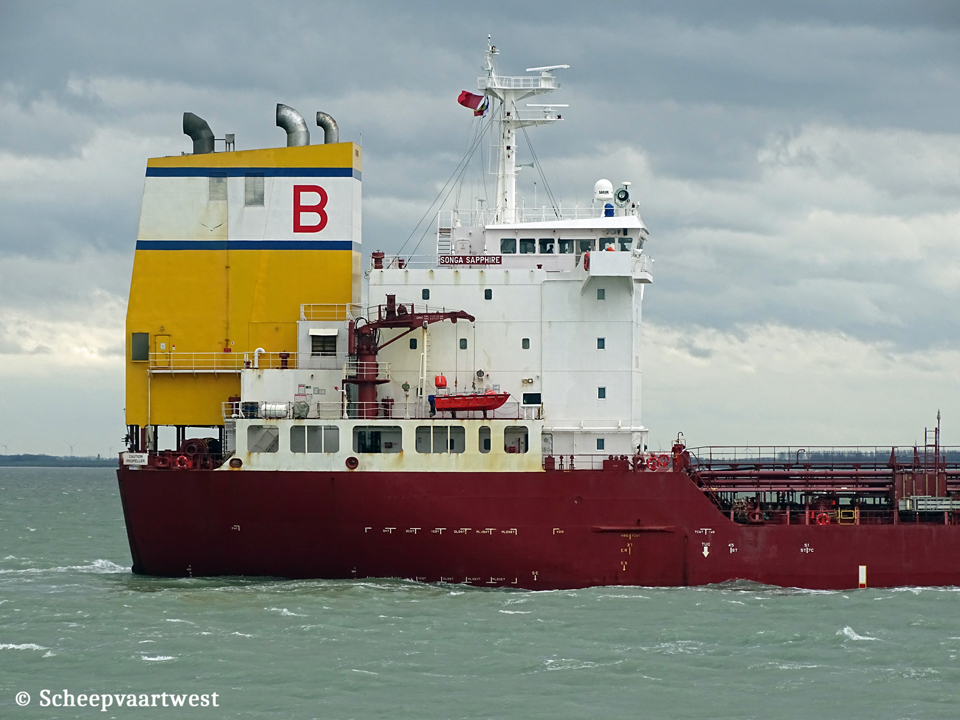

SONGA SAPPHIRE |
|
Type |
Crude oil tanker |
|
IMO-number |
9444467 |
|
Call sign |
9HA4873 |
|
Flag |
Malta |
|
Port of registry |
Valletta |
|
GT |
11.472 t |
|
DWT |
17.596,47 t |
|
NT |
5.265 t |
|
Light ship |
5.606 t |
|
Length |
144,00 m overall |
|
Breadth |
22,60 m |
|
Draught |
Summer: 9,21 m |
|
Reg. dimensions L x B x D |
136,37 x 22,60 x 12,50 m |
|
Rule dimensions L x B x D |
136,00 x 22,60 x 12,50 m |
|
Keel to mast end |
40,07 m |
|
Freeboard |
Summer: 2.312 mm |
|
Depth |
12,50 m |
|
Speed |
14,0 knots |
|
Built |
2008 |
|
Keel laid |
28/01/2008 |
|
Launch date |
03/04/2008 |
|
Date of completion |
09/06/2008 |
|
Builder |
Samho Shipbuilding Co. Ltd. Tongyeong South Korea |
|
Yard number |
SH-1202 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Watertight bulkheads |
Transverse: 13 |
|
Continuous decks |
1 |
|
Main engine |
1x MAN-B&W 8S35MC - 2 stroke single acting 8 cylinder 350 x 1.400 mm combustion engine 5.920 kW / 8.048 hp at 173,0 rpm Build: 01/03/2008 Manufacturer: STX engine Co., Ltd. |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Auxiliary water tube boiler - 9,0 kg/cm² Heating surface: 184,2 m² 1x Economizer EGE - 13,0 kg/cm² Heating surface: 218,7 m² Build: 01/12/2007 Manufacturer: Miura Boiler Co., Matsuyama - Japan |
|
Generators |
3x Main diesel generatorsets each 937 kW / 450 Volt |
|
Bow thruster |
1x 493 kW |
|
Number of tanks |
14 + 2 slop tanks |
|
Cargo tank capacity |
Liquid: 18.998 m³ |
|
Number of pumps |
8x Cargo pumps each 300 m³/h 6x Cargo pumps each 200 m³/h |
|
Tank capacities |
Fuel oil: 935,2 m³ Fresh water: 469,1 m³ Water ballast: 7.681,0 m³ |
|
ISM & commercial manager |
Songa Shipmanagement Ltd. |
|
Registered owner |
UM Shipping S.A. & Ujigami Kaiun Co., Ltd. |
|
Latest data adjustment |
03 May 2024 |
