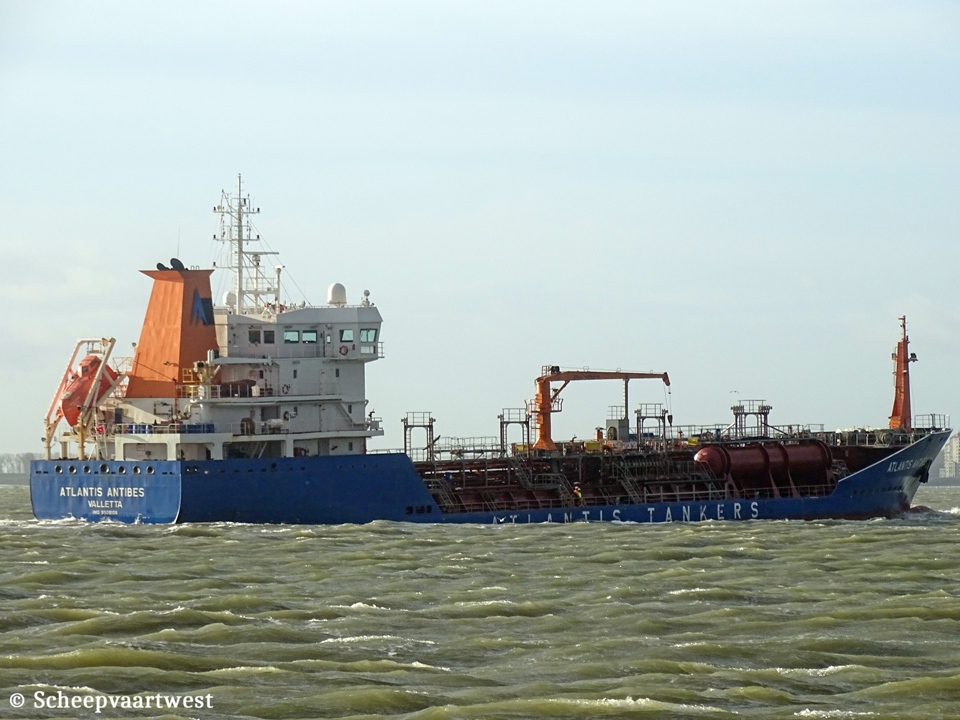

| Westerschelde 10 Janaury 2016 |
|
Name |
ATLANTIS ANTIBES |
|
Type |
Chemical & Oil product tanker |
|
IMO-number |
9508108 |
|
Call sign |
9HYJ9 |
|
Flag |
Malta |
|
Port of registry |
Valletta |
|
GT |
4.028 t |
|
DWT |
5.659 t |
|
NT |
1.822 t |
|
Light ship |
2.427 t |
|
Length |
105,50 m overall 99,35 m between perpendiculars |
|
Breadth |
16,80 m |
|
Draught |
Summer: 6,29 m |
|
Keel to mast end |
32,90 m |
|
Freeboard |
1.120 mm |
|
Depth |
7,40 m |
|
Speed |
14,0 knots |
|
Built |
2009 |
|
Date of completion |
09/07/2009 |
|
Builder |
Yildirim Gemi Insaa San. A.S. Istanbul Turkey |
|
Yard number |
116 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 8M25 - 4 stroke 8 cylinder 255 x 400 mm combustion engine 2.640 kW / 3.587 hp at 720 rpm Builder: Caterpillar Motoren GmbH & Co. KG - Germany |
|
Propellers |
1x Controllable pitch propeller |
|
Boilers |
2x CHO 63,00 m² / 10,0 bar 1x CHR 82,70 m² / 10,0 bar |
|
Generators |
3x Main diesel generatorsets each 462 kVA - 370 kW - 530 hp |
|
Emergency generator |
1x Diesel generatorset 174 kVA - 139 kW - 247 hp |
|
Bow thruster |
1x 350 kW |
|
Segregation |
10x Segregation with double valves |
|
Number of tank |
10 + 2 slop tanks |
|
Cargo tank capacity |
6.278 m³ |
|
Number of pumps |
10x Caro pumps each 200 m³/h |
|
Tank capacities |
Fuel: 420,57 m³ |
|
Manager |
Armona Denizcilik Muallim Naci Caddesi 47, Ortakoy Mah Besiktas, 34347 Istanbul Turkey |
|
Registered owner |
Antibes Shipping Limited Care of Armona Denizcilik AS Muallim Naci Caddesi 47, Ortakoy Mah Besiktas, 34347 Istanbul Turkey |
|
Latest data adjustment |
27 June 2024 |
