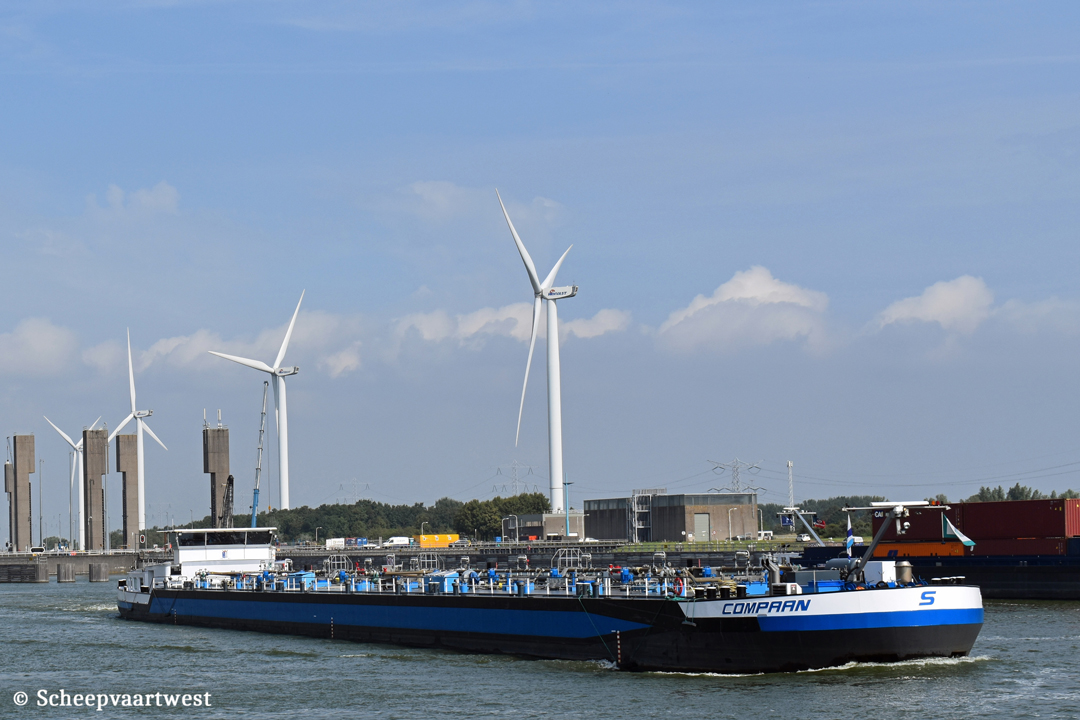

| Kreekraksluis 29 August 2024 The Netherlands |
|
Name |
COMPAAN |
|
Type |
Inland waterways tanker |
|
ENI-number |
02332826 |
|
Call sign |
PB5347 |
|
Flag |
The Netherlands |
|
Port of registry |
Nigtevecht |
|
Tonnage |
3.606 t |
|
Length |
110,00 m overall 106,25 m between perpendiculars |
|
Breadth |
11,45 m extreme |
|
Draught |
4,10 m |
|
Depth |
5,42 m moulded |
|
Built |
2010 |
|
Date of completion |
18/06/2010 |
|
Builder casco |
Nantong Changqingsha Shipyard China Yard number: SIIC 2007-09 |
|
Builder completion |
Veka Werkendam The Netherlands |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Continuous decks |
1 |
|
Main engine |
1x Caterpillar 512 (C) DI-TA electronic combustion engine 1/350 kW / 1.836 hp at 1.600 rpm |
|
Gear box |
1x Masson Marine MM Q7350 - Reduction 5,031:1 |
|
Propellers |
1x 5 blades propeller diameter 1.750 mm |
|
Generators |
|
|
Bow thruster |
1x Cummins 510 hp Verhaar Omega-Jet 375 kW at 1.780 rpm |
|
Cargo tank capacity |
3.768 m³ |
|
Number of pumps |
10 x Marflex MDPD-80 cargo pumps each 100 m³/h |
|
Owner |
Vecht Tankvaart BV (R. Sijbesma) Dorpsstraat 16 1393 NH Nigtevecht The Netherlands |
|
Latest data adjustment |
01 September 2024 |
