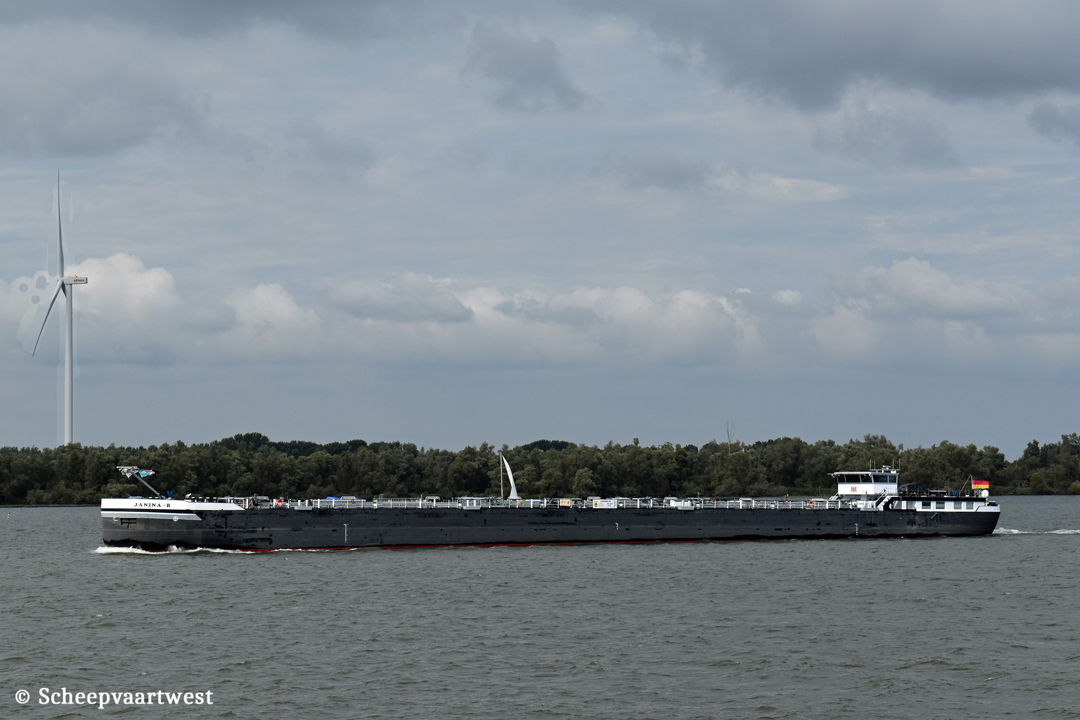

| Hollands Diep 29 August 2024 The Netherlands |
|
Name |
JANINA R |
|
Type |
Inland Waterways tanker |
|
ENI-number |
04812830 |
|
Call sign |
DH2535 |
|
Flag |
Germany |
|
Port of registry |
Wertheim |
|
Tonnage |
2.630 t |
|
Length |
109,99 m overall 107,93 m between perpendiculars |
|
Breadth |
11,45 m extreme |
|
Draught |
Max: 3,07 m |
|
Depth |
4,56 m moulded |
|
Built |
2017 |
|
Keel laid |
06/03/2017 |
|
Date of completion |
08/09/2017 |
|
Builder |
GS Yard Waterhuizen The Netherlands |
|
Yard number |
179 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Continuous decks |
1 |
|
Main engine |
2x Volvo Penta D16C-D combustion engine total 1.102 kW / 1.498 hp |
|
Gearbox |
2x Reintjes WAF 364 - Reduction 5,435:1. |
|
Propellers |
2x 5 blades diameter 1.550 mm with Optima nuzzle diameter 1.566 mm |
|
Bow thruster |
1x 535 hp Electro-motor - Verhaar Omega-Jet 393 kW at 1.870 rpm Diameter: 1.200 mm |
|
Number of tanks |
8 |
|
Cargo tank capacity |
100%: 3.035,0 m³ 97%: 2.943,9 m³ |
|
Number of pumps |
2x Cargo pumps each 720 m³/h |
|
Lifting equipment |
1x Car crane - SWL 2.000 kg |
|
Owner |
Janina-R Schifffahrtsbetriebe (N. Ribbens) Forrest-E.-Peden-Ring 2A 97877 Wertheim Germany |
|
Latest data adjustment |
01 September 2024 |
