| Antwerpen 29 August 2024 |
|

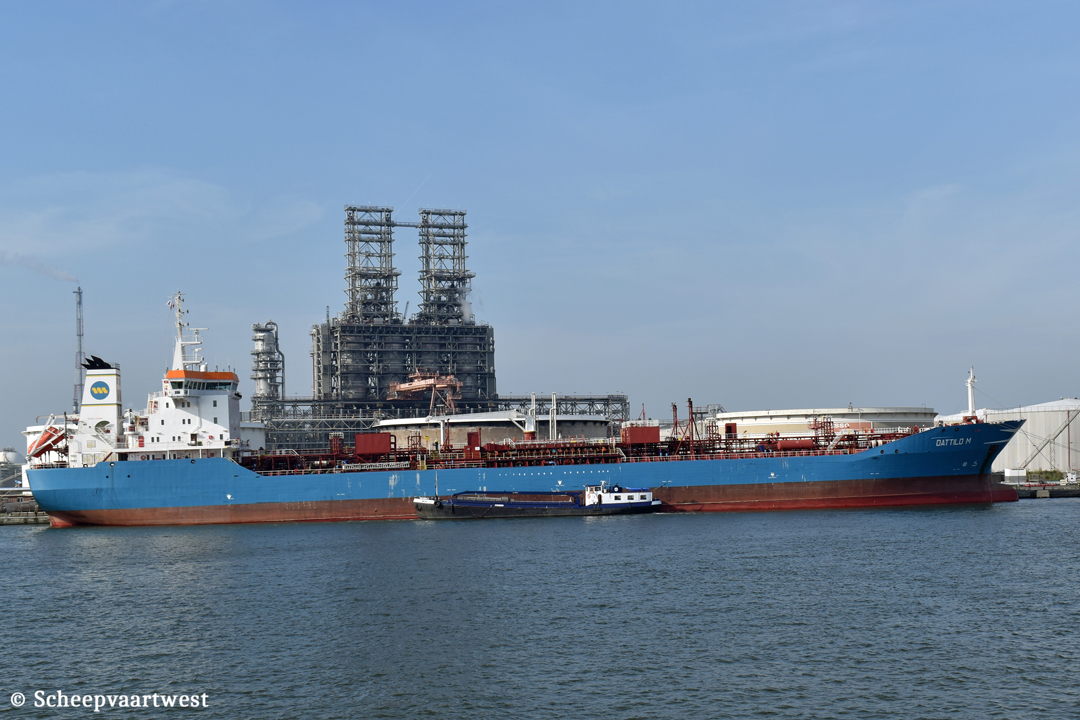

Name |
DATTILO M |
|
Type |
Chemical/Oil products tanker |
|
IMO-number |
9333474 |
|
Call sign |
IBXJ |
|
Flag |
Italy |
|
Port of registry |
Catania |
|
GT |
13.671 t |
|
DWT |
21.600 t |
|
NT |
6.655 t |
|
Displacement |
25.244 t |
|
Light ship |
6.657 t |
|
Length |
161,12 m overall 149,80 m between perpendiculars |
|
Breadth |
23,00 m moulded |
|
Draught |
Summer: 9,60 m |
|
Depth |
13,41 m moulded |
|
Speed |
Max: 15,0 knots |
|
Build |
2006 |
|
Keel laid |
21/12/2004 |
|
Date of completion |
07/03/2006 |
|
Builder |
Factorias Vulcano S.A. Vigi Spain |
|
Yard number |
490 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x MaK 9M43 - 9 cylinder combustion engine Mcr 8.100 kW at 500 rpm |
|
Gearbox |
1x Renk HSUL-1200 - reduction: 4,13:1 |
|
Propellers |
1x Kamewa controllable pitch propeller - aft at 121,0 rpm Diameter: 5.400 mm |
|
Boilers |
2x Vulcano Sadeca each 3.800 kW 1x Vulcano Sadeca 870 kW |
|
Shaft generator |
1 AVK -1.350 kW |
|
Generators |
3x Yanmar 6N21AL-EV main diesel engine each 970 kW connected with AVK generatorsets each 900 kW |
|
Emergency & harbour gen. |
1x Caterpillar Cat 3408 diesel engine 410 kW connected with Leroy sommer generators 370 kW |
|
Bow thruster |
1x 1.650 kW |
|
Number of tanks |
14 + 2 slop tanks |
|
Cargo tank capacity 100% |
Liquid: 25.174,8 m³ |
|
Slop tank capacity |
561 m³ |
|
Cargo segregation |
7 + 1 |
|
Number of pumps |
14x Deepwell electrical powered cargo pumps each 300 m³/h 2x Slop pumps each 150 m³/h 2x Ballast pumps each 500 m³/h |
|
Max. discharging rate |
2.400 m³/h |
|
Tank capacities |
HFO: 663 m³ Diesel il: 178 m³ Lub oil: 49 m³ Fresh water: 429 m³ Ballast water: 9.781 m³ |
|
Anchor equipment |
1x Cargo hose handling - SWL 10,0 t at 17,00 m |
|
Crew |
19 |
|
Manager |
Augusta Due S.r.l Viale Gorizia, 16 00198 Roma RM Italy |
|
Registered owner |
Augusta Due S.r.l Roma Italy |
|
Latest data adjustment |
07 September 2024 |
