| Westerschelde 01 July 2017 |
|
Name |

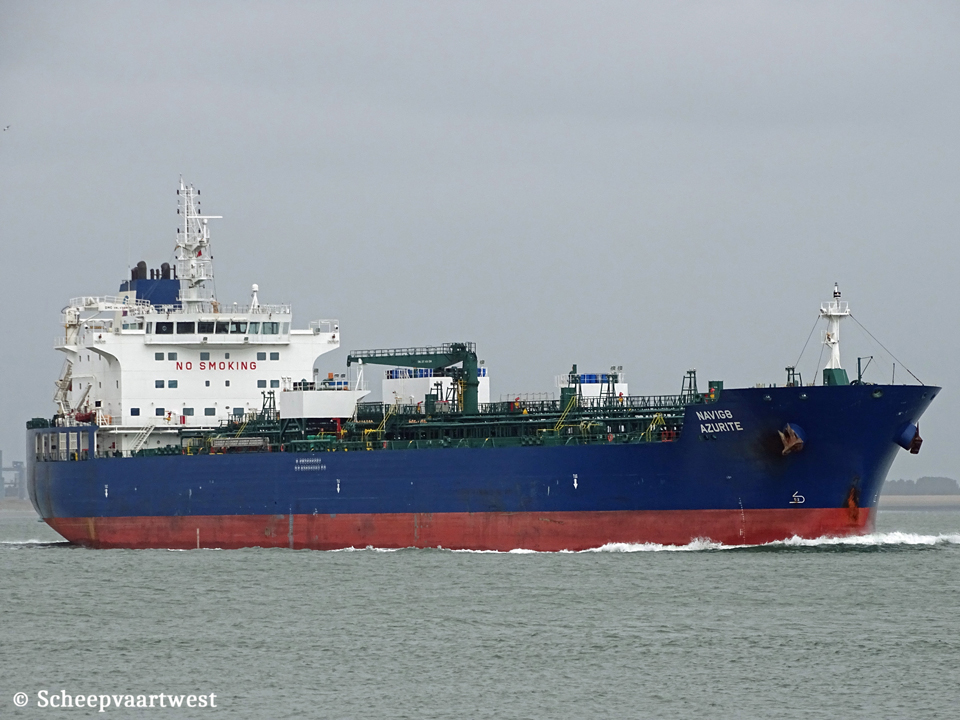

NAVIG8 AZURITE |
|
Type |
Oil and chemical carrier |
|
IMO-number |
9727560 |
|
Call sign |
V7GY2 |
|
Flag |
Marshall Islands |
|
Port of registry |
Majuro |
|
GT |
23.676 t Suez: 24.999,05 t |
|
DWT |
38.506 t |
|
NT |
10.252 t Suez: 21.523,31 t Panama: 19.799 t |
|
Displacement |
47.506 t |
|
Length |
184,06 m overall 176,00 m between perpendiculars |
|
Breadth |
27,40 m moulded |
|
Draught |
Summer: 11,52 m |
|
Freeboard |
5.514 mm |
|
Depth |
17,20 m moulded |
|
Speed |
Max: 14,5 knots |
|
Built |
2015 |
|
Keel laid |
12/03/2015 |
|
Launch date |
08/05/2015 |
|
Date of completion |
24/08/2015 |
|
Builder |
Hyundai Mipo Dockyard Co. Ltd. 100 Bangeojinsunhwan-Doro Dong-Gu Ulsan South Korea |
|
Yard number |
2544 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x MAN-B&W 6S50ME-B9.3 - 6 cylinder 500 x 2.214 mm combustion engine Mcr 7.290 kW at 99,3 rpm Manufacturer: HHI Engine & Machinery Div. |
|
Propellers |
1x Fixed pitch propeller Manufacturer: HHI Engine & Machinery Div. |
|
Boilers |
1x Fired boiler - 9MPa 1x Fired exhaust gas boiler - 9MPa Manufacturer: Kangrim Heavy Industries Co., Ltd. |
|
Generators |
1x Main diesel generatorsets 900 kW 2x Main diesel generatorsets each 1.100 kW Manufacturer: HHI Electro Electric System |
|
Cargo tank capacity |
Liquid: 42.996,70 m³ |
|
Tank capacities |
Lub oil: 92,80 m³ Fresh water: 675,30 m³ Fuel oil: 944,30 m³ Diesel oil: 338,70 m³ Hydraulic oil: 17,50 m³ Ballast: 14.874,30 m³ |
|
Lifting equipment |
1x Engine room crane - SWL 4,0 t Manufacturer: Oriental Precision Machinery Co., Ltd. 1x Hose handling crane - SWL 10,0 t 1x Provision crane - SWL 4,0 t Manufacturer: Dongnam Marine Crane Co., Ltd. |
|
Crew |
25 |
|
Manager |
OSM Ship Management AS |
|
Owner |
Navig8 Chemical Asia Pte. Ltd. 25-01, Centennial Tower, 3, Temasek Avenue Singapore Republic of Singapore |
|
Renamed |
08/03/2023 Hafnia Azurite Republic of Singapore, Singapore City - Call sign: 9V8432 Registered owner: Sea 21 Leasing Co., Limited, Hellerup - Denmark Manager: Hafnia Management AS, Hellerup - Denmark |
|
Latest data adjustment |
27 August 2024 |
