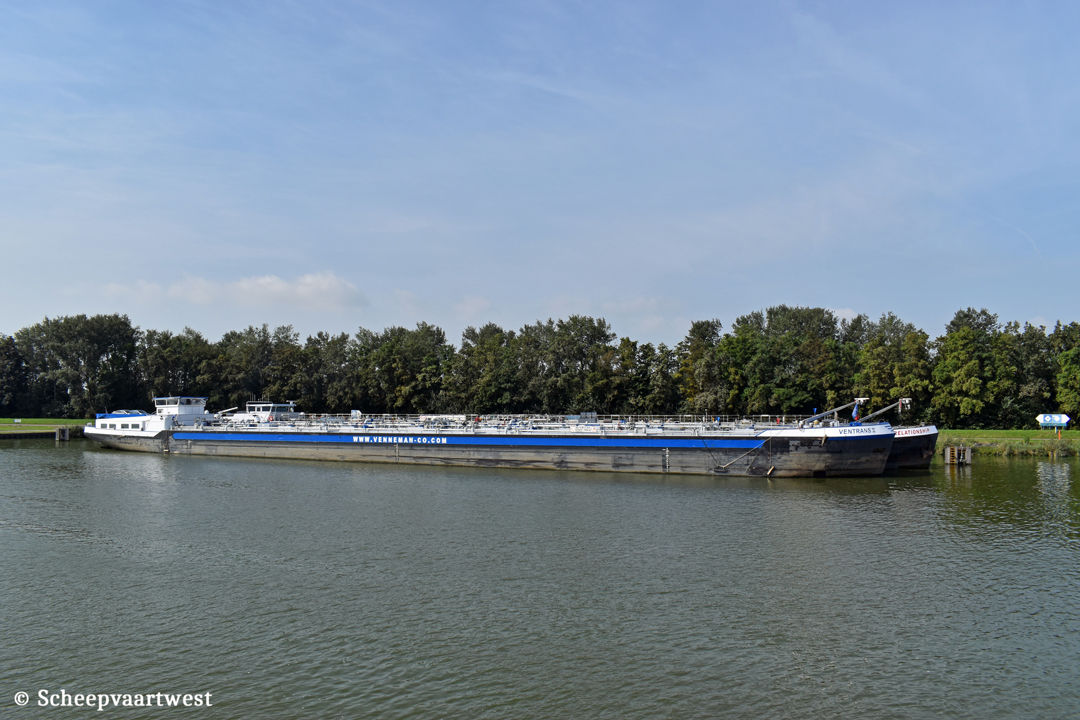

| Schelde-Rijkanaal 29 August 2024 Tne Netherlands |
|
Name |
VENTRANS II |
|
Type |
Chemical tanker, Inland waterways |
|
ENI-number |
02333127 |
|
Call sign |
OT4711 |
|
Flag |
Belgium |
|
Port of registry |
Antwerpen |
|
Tonnage |
2.558 t |
|
Length |
109,70 m overall 107,75 m between perpendiculars |
|
Breadth |
11,40 m extreme |
|
Draught |
Max: 3,25 m |
|
Depth |
4,72 m |
|
Build |
2009 |
|
Keel laid |
05/12/2008 |
|
Date of completion |
17/12/2009 |
|
Builder completion |
Begej Shipyard Zrenjanin Serbia |
|
Yard number |
283 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Continuous decks |
1 |
|
Main engine |
1x Mitsubishi S16R-C2MPTK combustion engine 1.250 kW / 1.700 hp at 1.600 rpm |
|
Gearbox |
1x Masson Marine MM W 7350 - reduction: 5,031:1 |
|
Propellers |
1x 5 blades - diameter 1.750 mm |
|
Generators |
1x Caterpillar C18 ACERT diesel generatorset 525 kA 1x Perkins 4.4 TW2GM diesel generatorset 107 kVA 1x Perkins 4.4 TWGM diesel generatorset 85 kVA |
|
Bow thruster |
535 hp Electro-motor - Verhaar Omega-Jet type 31120-4k - 393 kW |
|
Number of pumps |
2x Bornemann EPS500 cargo pumps each 500 m³/h powered by 2 electro-motors each 230 kW 2x Ballast pumps EPS300 each 300 m³/h powered by electro-motors each 34 kW |
|
Number of tanks |
8 |
|
Cargo tank capacity |
3.040 m³ |
|
Registered owner |
Venneman en Co., BVBA Vosseschijnstraat Kaai 140 2030 Antwerpen 2030 Belgium |
|
Latest data adjustment |
09 September 2024 |
