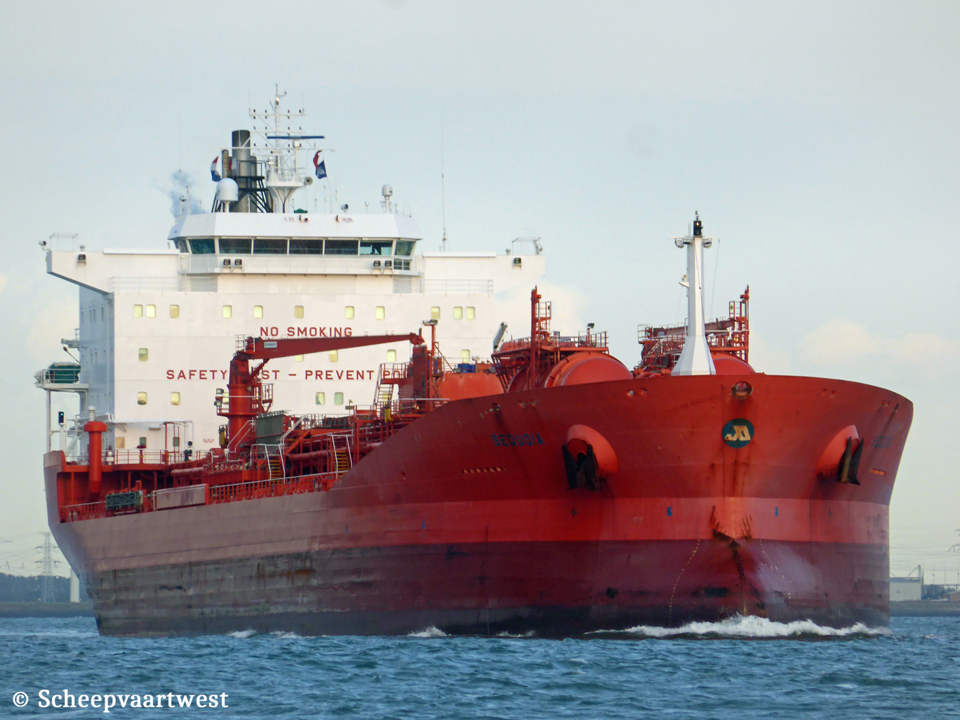

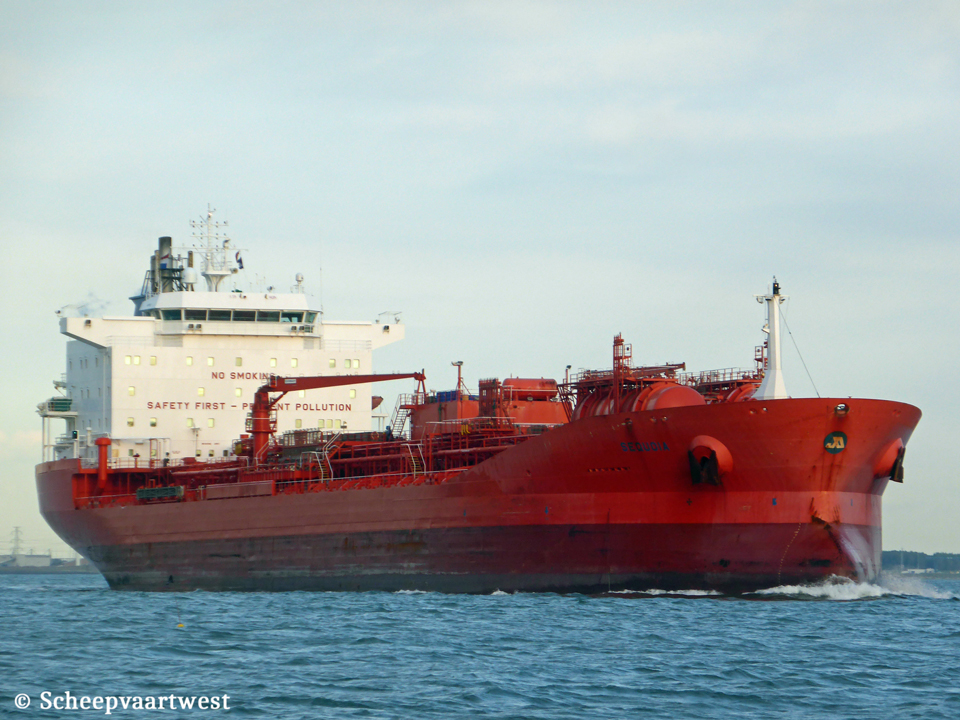

| Westerschelde 17 September 2015 |
 |
|
| Westerschelde 17/09/15 | |
|
Name |
SEQUOIA |
|
Previous names |
2003 - 11/2010 Jo Sequoia 11/2010 - 06/2016 Sequoia 06/2016 - 06/2014 Jo Sequoia 06/2016 - 02/017 Sequoia |
|
Type |
Tanker for chemicals & oil products |
|
IMO-number |
9235062 |
|
Call sign |
LAVB5 |
|
Flag |
Norway |
|
Port of registry |
Bergen |
|
GT |
23.129 t |
|
DWT |
Summer: 37.620 t |
|
NT |
11.931 t |
|
Light displacement |
10.877 t |
|
Length |
183,10 m overall 176,90 m between perpendiculars |
|
Breadth |
32,25 m extreme |
|
Draught |
10,72 m |
|
Keel to mast end |
42,80 m |
|
Depth |
14,00 m |
|
Speed |
15,0 knots |
|
Built |
2003 |
|
Keel laid |
20/09/2001 |
|
Launch date |
18/11/2002 |
|
Date of completion |
06/02/2003 |
|
Builder |
Kleven Florø AS (STX Norway Florø Norway |
|
Yard number |
141 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Bulkheads |
Transverse: 7 Longitudinal: 3 |
|
Main engine |
1x MAN-B&W/Hitachi 7S50MC-C - 2 stroke 7 cylinder 500 x 2.000 mm combustion engine 10.415 kW / 14.160 hp at 127,0 rpm |
|
Propellers |
1x Controllable pitch propeller |
|
Boilers |
2x Auxiliary boiler, oil/gas fired type AQ-9 1x Auxiliary boiler, exhaust gas heated type AV-6N Manufacturer: Aalborg Industries A/S |
|
Shaft generator |
1x 1.100 kW |
|
Generators |
2x MAN-B&W 6L28/32H main diesel generatorset each 1.260 kW |
|
Emergency generator |
1x Volvo Penta TAMD103A diesel generatorset 215 kW |
|
Bow thruster |
1x 885 kW |
|
Number of cargo tanks |
39 + 2 slop tanks |
|
Cargo tank capacity |
40.652 m³ |
|
Number of pumps |
5x Cargo pumps each 550 m³/h 18x Cargo pumps 320 m³/h 16x Cargo pumps 220 m³/h |
|
Tank capacities |
Ballast: 15.035 m³ |
|
Anchor equipment |
Length: 632,50 m Diameter: 70 mm |
|
Manager |
Jo Tankers AS Kokstad Norway |
|
Owner |
Hassel Skibsaksjeselskapet AS |
|
Renamed |
02/2017 Stolt Sequoia Liberia, Monrovia - Call sign: D5MX6
|
|
Latest data adjustment |
29 August 2024 |
