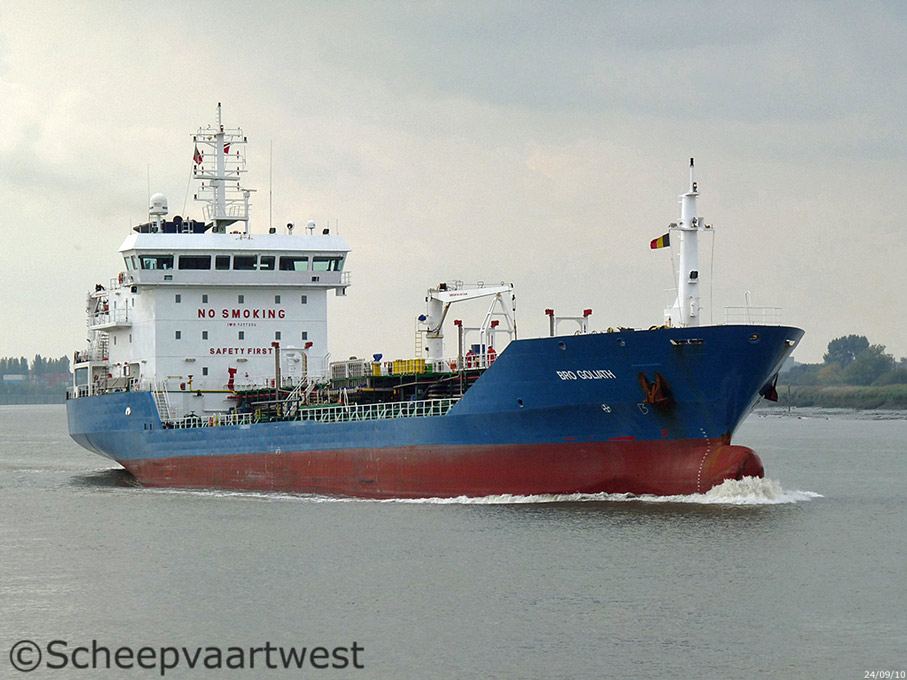

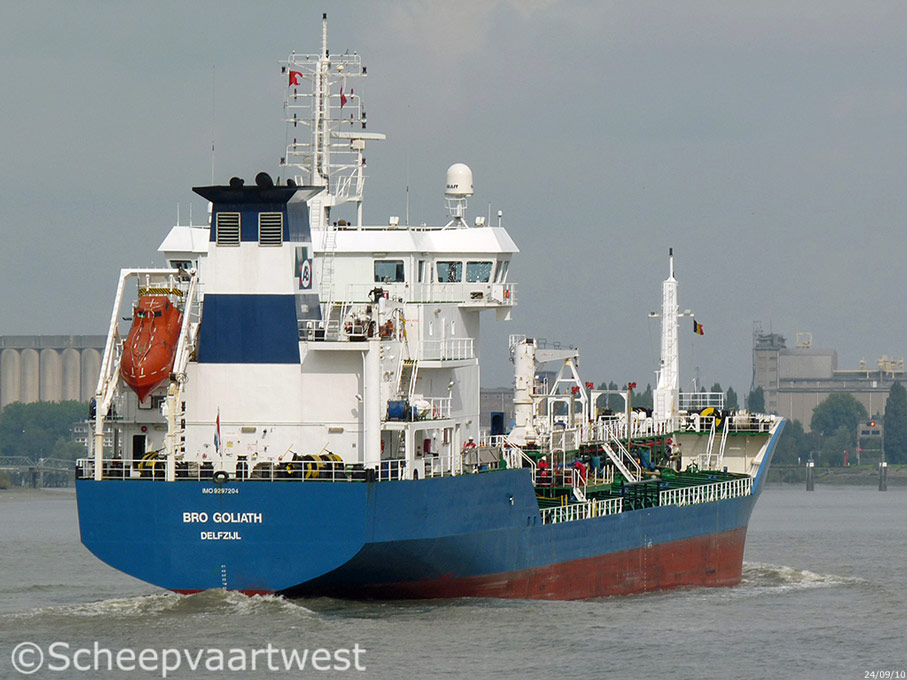

| Antwerpen 24 September 2010 |
 |
 |
|

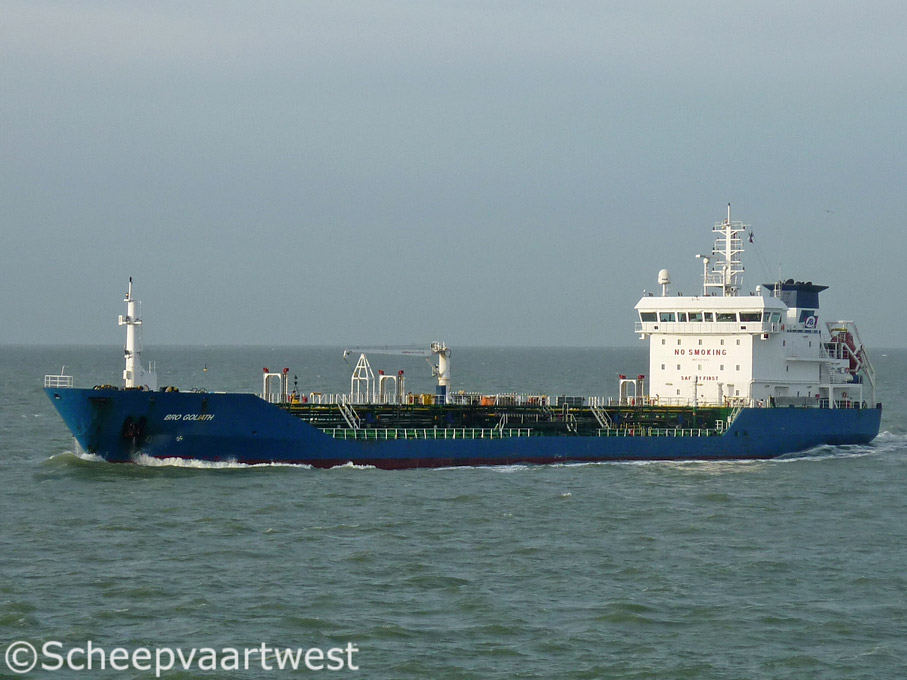

| Antwerpen 24/09/10 | Westerschelde 26/11/11 | |
|
Name |
BRO GOLIATH |
|
Previous names |
2004 - 08/2007 Mareld |
|
Type |
Tanker for oil and chemicals |
|
IMO-number |
9297204 |
|
Call sign |
PBJV |
|
Flag |
The Netherlands |
|
Port of registry |
Delfzijl |
|
Previous flag |
2004 - 2007 Norway, Oslo - Call sign: LADI6 |
|
GT |
4.814 t |
|
DWT |
7.108,4 t |
|
NT |
2.238 t |
|
Length |
119,01 m overall 110,97 m between perpendiculars 112,43 m registered |
|
Breadth |
16,90 m registered |
|
Draught |
6,77 m |
|
Freeboard |
1.659 mm |
|
Depth |
8,40 m moulded |
|
Speed |
15,0 knots |
|
Built |
2004 |
|
Date of completion |
01/11/2004 |
|
Builder |
Selah Makina Sanayi ve Ticaret Shipyard Tuzla Turkey |
|
Yard number |
38 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Double bottom, continuous from peak to peak bulkhead |
|
Watertight compartments |
13 |
|
Continuous decks |
1 |
|
Main engine |
1x MAN-B&W 8L32/40 - 4 stroke 8 cylinder 320 x 400 mm combustion engine 3.840 kW / 5.221 hp at 750 rpm Built: 2004 Builder: MAN-B&W Diesel AG, Augsburg - Germany |
|
Propelling system |
1x Controllable pitch propeller - aft at 141 rpm |
|
Boilers |
Thermal oil heater, exhaust gas heated Max. work pressure: 10,0 bar Heating surface: 61,0 m² Built: 2002 Manufacture: Aalborg industries A/S |
|
Electric installations |
Power voltage: 400 V Lighting voltage: 400 V Frequency: 50 Hz |
|
Shaft generators |
1x 1.500 kVA - 1.200 kW |
|
Generators |
3x Main diesel generatorsets each 625 kVA - 500 kW - 723 hp |
|
Emergency generator |
1x Diesel generatorset 124 kVA - 99 kW - 150 hp |
|
Number of cargo tanks: |
14 + 2 slop tanks |
|
Total capacity of tanks |
Liquid: 8.071,91 m³ |
|
Mooring equipment |
Number of ropes on drums fwd: 4 Number of ropes on drums aft: 4 |
|
Number of pumps |
12x Cargo pumps 200 m³/h each 2x Pumps 60 m³/h each |
|
Loading/ Discharge rate |
1.200 m³/h |
|
Tank capacities |
HFO: 420,2 m³ MDO: 64,3 m³ |
|
Manager |
Maersk Tankers Copenhagen Denmark |
|
Previous managers |
12/2004 - 08/2007 PB Linnea Shipping AS - Norway 08/2007 - 03/2010 Marin Ship Management B.V., Farmsum - The Netherlands |
|
Owner |
Broström Tankers AB Sweden |
|
Registered owner |
Bro Go B.V.Hogelansterweg 14 NL-9936 BH Farmsum The Netherlands |
|
Previous names & owner |
12/2004 - 08/2007 Mareld - Vadero Shipping Limited -Broström Tankers AB - Sweden |
|
Renamed |
12/2012 Thun Goliath The Netherlands, Delfzijl - Call sign: PBJV Owner: Thun Tankers B.V., 9936 BH Farmsum - The Netherlands ISM manager: Marin Ship Management B.V., 9936 BH Farmsum - The Netherlands Commercial manager: Erik Thun AB, SE-531 32 Lidkoping - Sweden 03/2022 Mensa Define Malta, Valletta - Call sign: 9HA5639 Owner: Densa Tanker Ship Management, Istanbul - Turkey Manager: Densa Tanker Ship Management, Istanbul - Turkey |
|
Latest data adjustment |
09 October 2024 |
