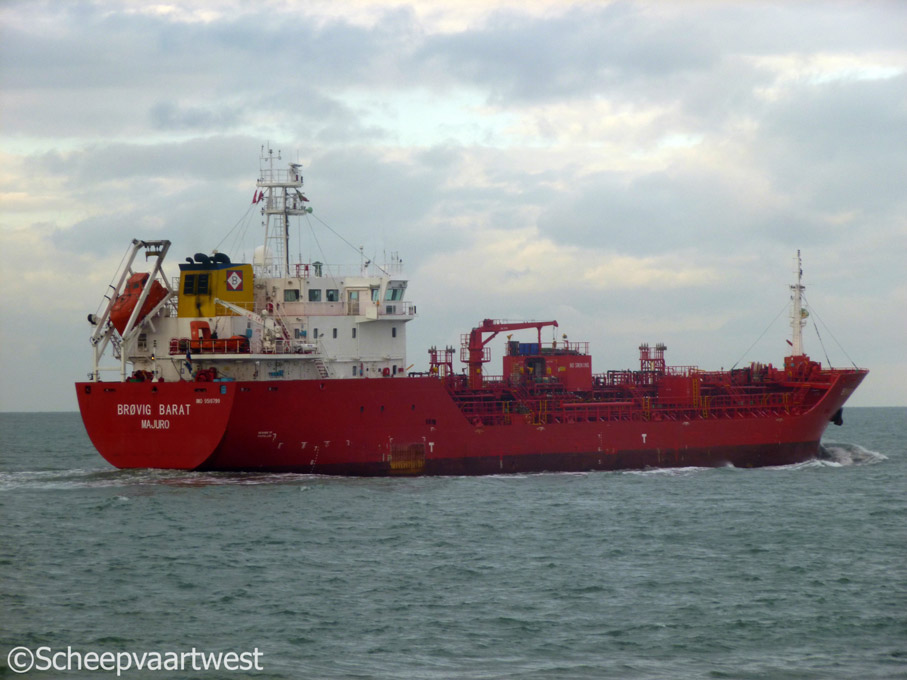

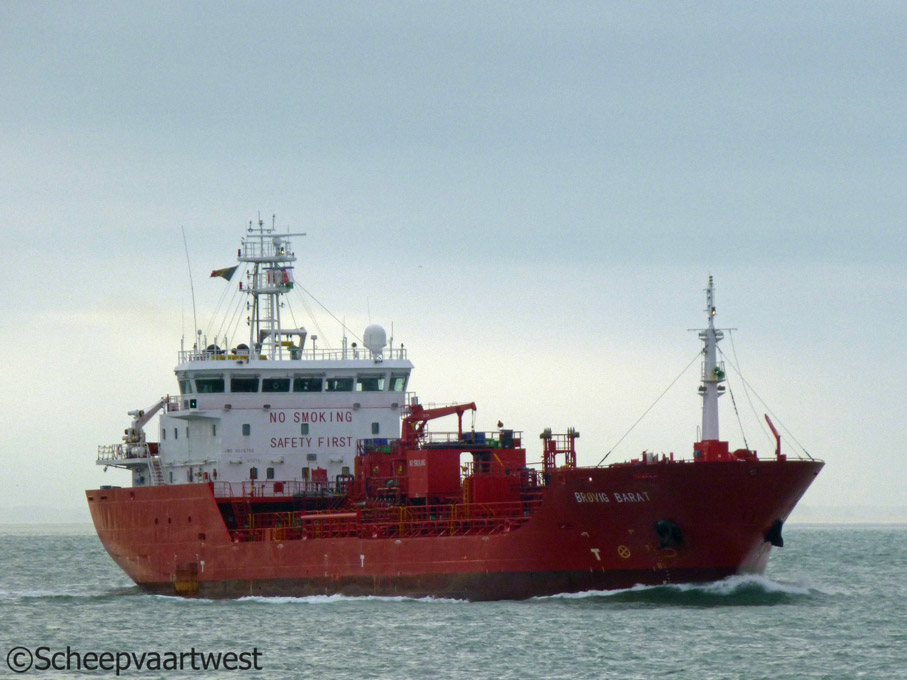

| Westerschelde 28 September 2012 |
 |
| Westerschelde 28/09/12 |
|
Name |
BRØVIG BARAT |
|
Type |
Tanker for chemicals and oil products |
|
IMO-number |
9518799 |
|
Call sign |
V7VT5 |
|
Flag |
Marshall Islands |
|
Port of registry |
Majuro |
|
GT |
3.327 |
|
DWT |
4.461 t |
|
NT |
1.358 |
|
Length |
90,90 m over all 84,67 m between perpendiculars |
|
Breadth |
15,60 m |
|
Draught |
6,01 m |
|
Keel to top of mast |
28,00 m |
|
Freeboard |
2.010 mm |
|
Depth |
8,00 m moulded |
|
Speed |
12,8 knots |
|
Built |
2011 |
|
Keel laid |
18/08/2009 |
|
Launch date |
11/06/2010 |
|
Date of completion |
23/02/2011 |
|
Builder |
CSIC Chuandong Shipyard Chuandong China |
|
Yard number |
HT0119 |
|
Hull material |
Steel |
|
Main engine |
1x MaK 8M25 - 4 stroke 8 cylinder 255 x 400 mm combustion engine 2.640 kW / 3.587 hp at 750 rpm Builder Caterpillar Motoren GmbH & Co. KG, Kiel - Germany |
|
Main engine driven gen. |
1x 500 kVA - 400 kW |
|
Propellers |
1x Controllable pitch propeller - aft at 202 rpm |
|
Boilers |
1x CHO LSK5-0.7 - 100,00 m² / 7,00 bar 1x CHR GFL80-0.7 - 80,00 m² / 7,00 bar |
|
Shaft generator |
1x AEM SE 315 LL4 - 500 kVA at 1.800 rpm |
|
Generators |
3x MWM TBD604BL6 diesel generatorsets each 375 kVA - 300 kW - 489 hp at 1.200 rpm |
|
Emergency generator |
1x Diesel generatorset 200 kVA - 160 kW - 188 hp |
|
Bow thruster |
1x Schottel Framo hydraulic - 250 kW |
|
Number of cargo tanks |
8 + 2 slop tanks |
|
Cargo tank capacity 98% |
Tank 1 P: 303,918 m³ Tank 1 S: 303,918 m³ Tank 2 P: 607,453 m³ Tank 2 S: 611,412 m³ Tank 3 P: 631,757 m³ Tank 3 S: 635,373 m³ Tank 4 P: 612,226 m³ Tank 4 S: 608,600 m Total: 4314,657 m |
|
Number of slop tanks 98% |
2 Slop P: 273,342 m³ Slop S: 269,725 m³ Total: 543,067 m³ |
|
Cargo pumps |
10x Framo deep well cargo pumps each 200 m³/h 2x Framo deep well cargo pumps each 120 m³/h 2x Framo ballast pumps each 175 m³/h 1x 1x Framo Portable cargo pump 70 m³/h |
|
Load / unloading max. |
800 m³/h (4 pumps) |
|
Tank cleaning pump |
1x Framo - 50 m³/h at 7,0 bar |
|
Tank capacities |
Fuel oil:313,08 m³ Ballast: 2.076,17 m³ Diesel oil: 53,93 m³ Fresh water: 65,26 m³ Lub oil: 15,39 m³ |
|
Anchor equipment |
Length: 467,50 m Diameter: 38 mm |
|
Lifting equipment |
1x Hose crane midship - SWL 2,0 t @ 11,00 m |
|
Registered owner |
Brøvigtank AS Kronprinsesse Märthas Plass 1 N-0160 Oslo Norway |
|
Renamed |
2013 Stolt Greenshank Flag: United kingdom, Cradriff - Call sign: 2GFD9 Manager: Stolt Tankers B.V., Rotterdam - The Netherlands Owner: Stolt Greenshank BV |
|
Latest data adjustment |
26 November 2024 |
