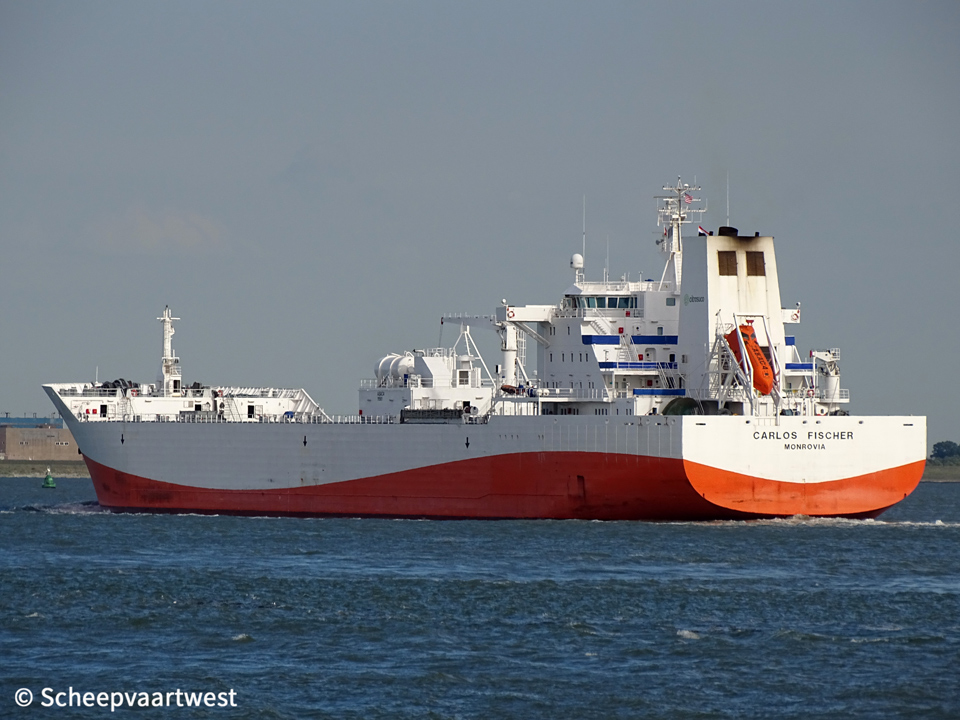

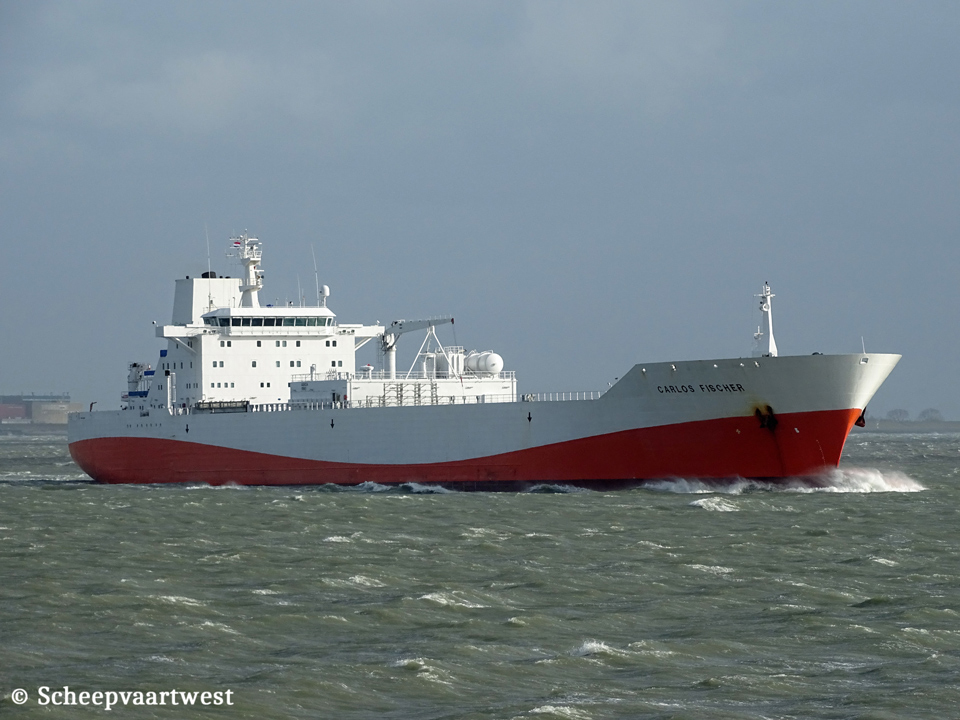

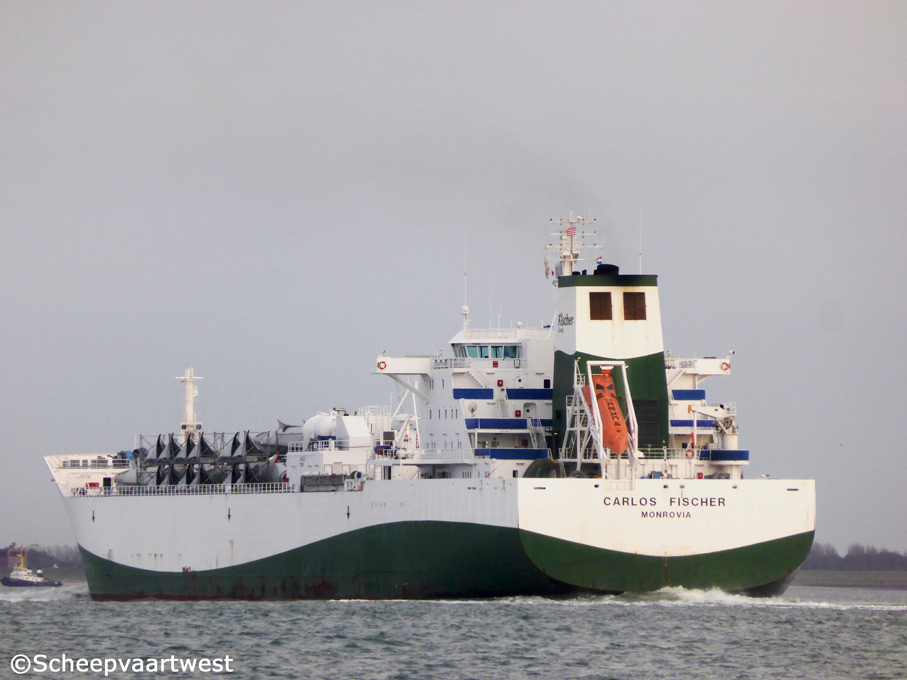

Westerschelde 9 February 2019 |
 |
 |
 |
 |
 |
 |
|||||

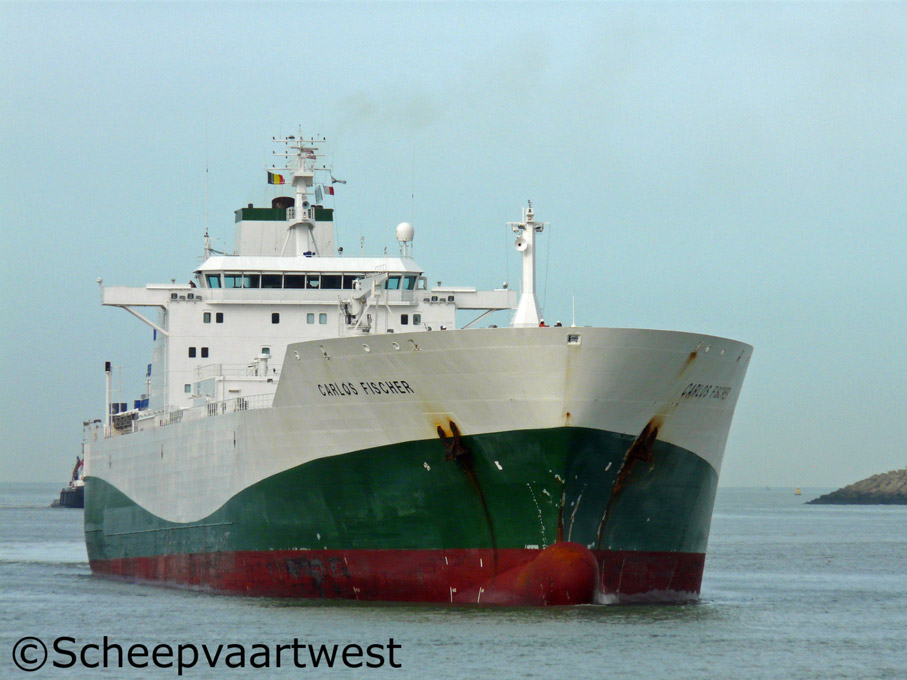

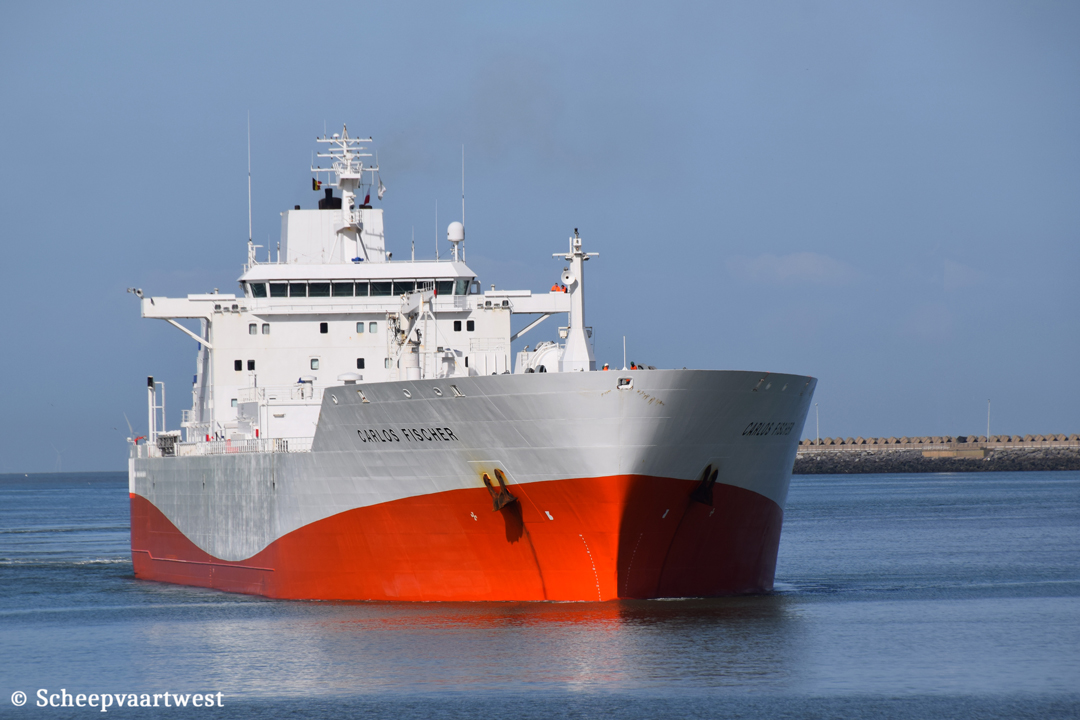

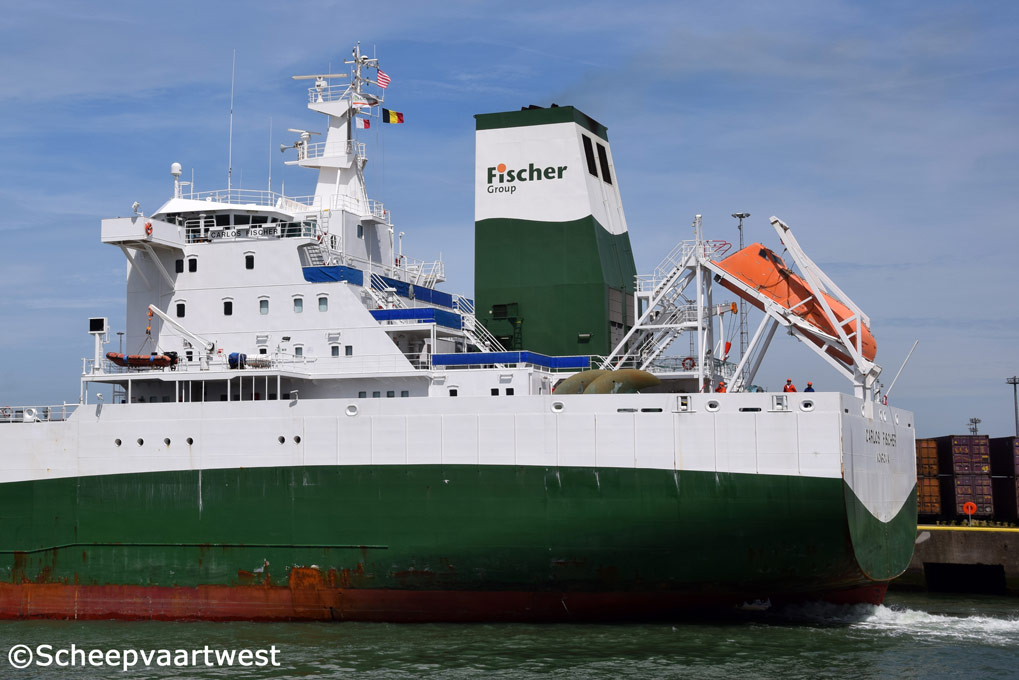

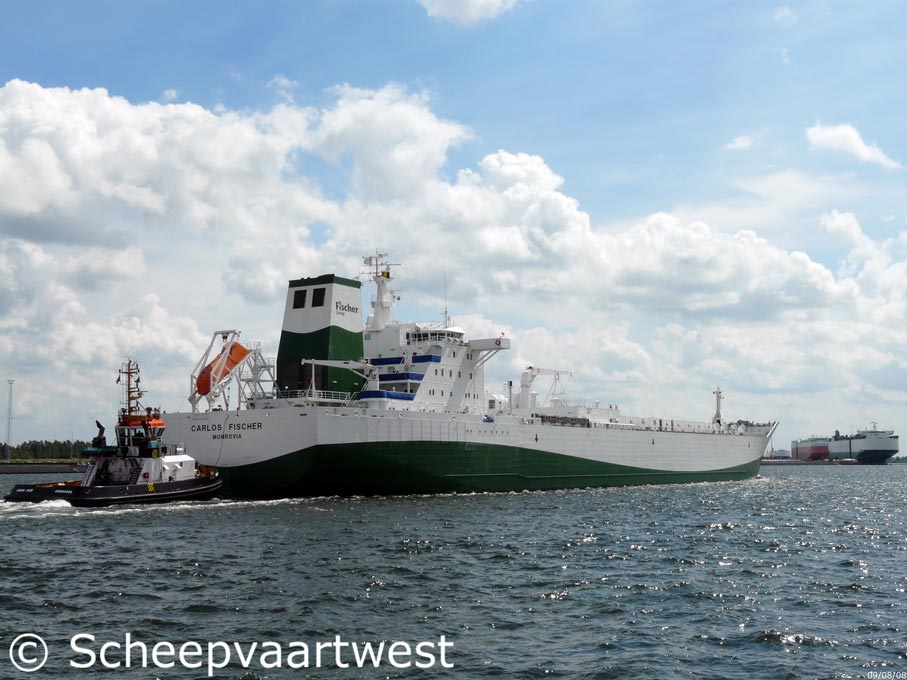

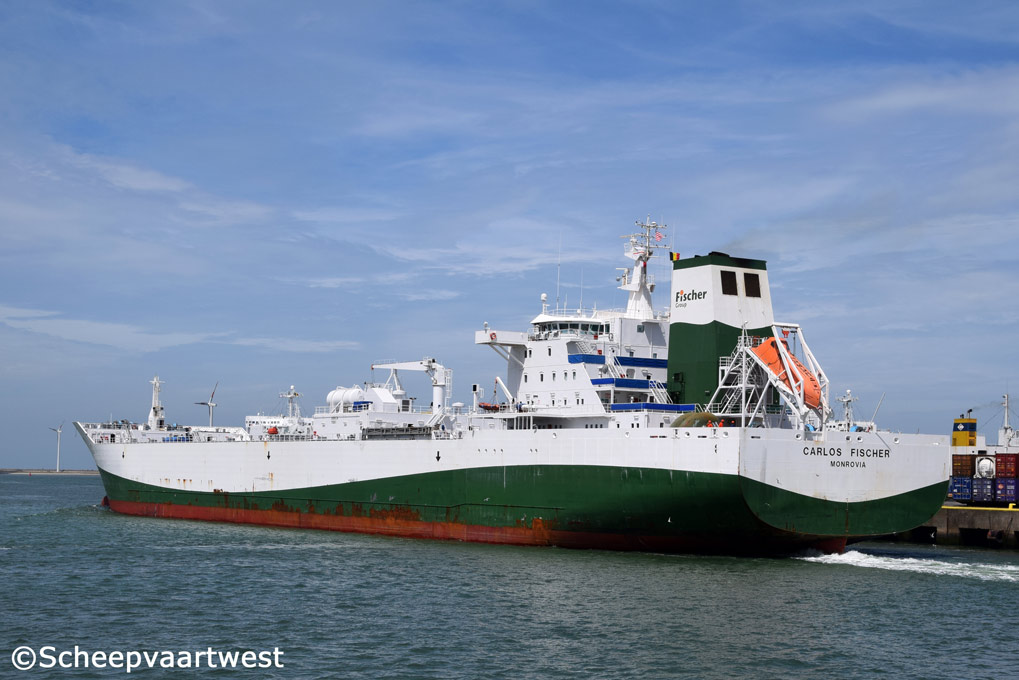

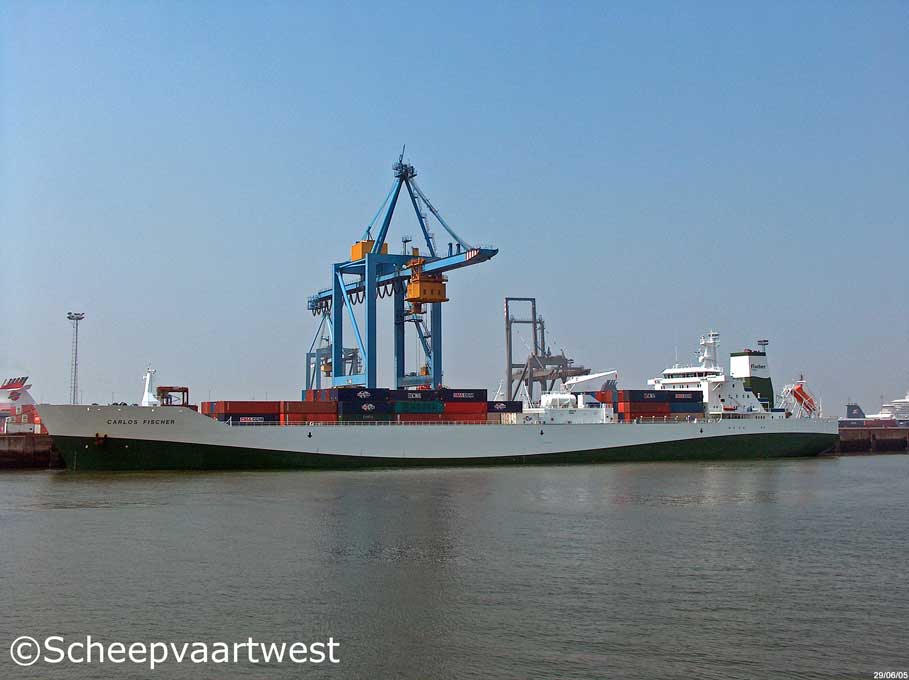

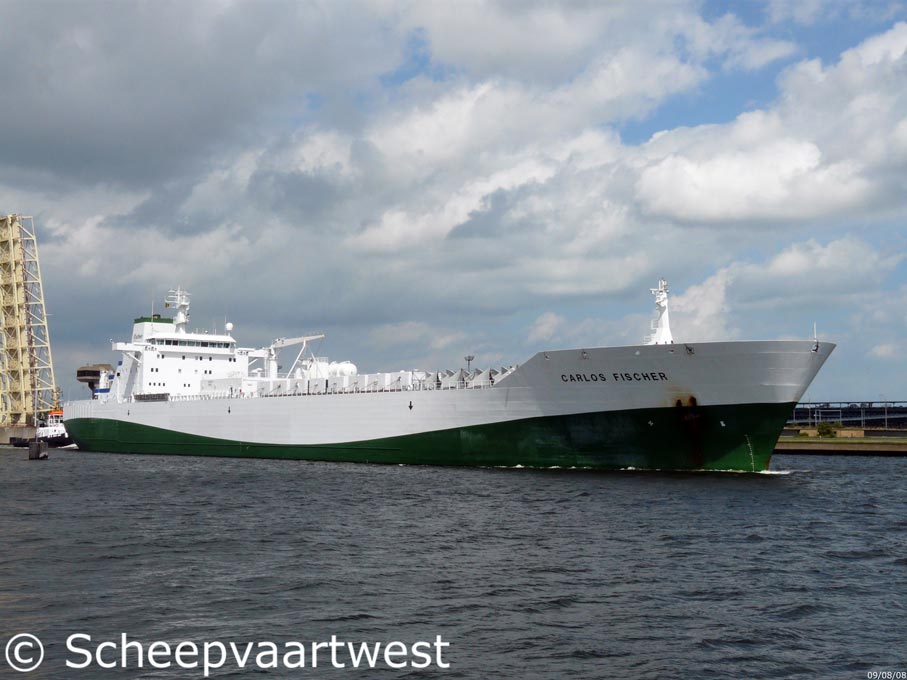

| Zeebrugge 29/06/15 | Zeebrugge 29/06/15 | Zeebrugge 09/08/08 | Zeebrugge 09/08/08 | Zeebrugge 29/06/05 | Westerschelde 26/10/14 | |||||
 |
 |
 |
 |
 |
||||

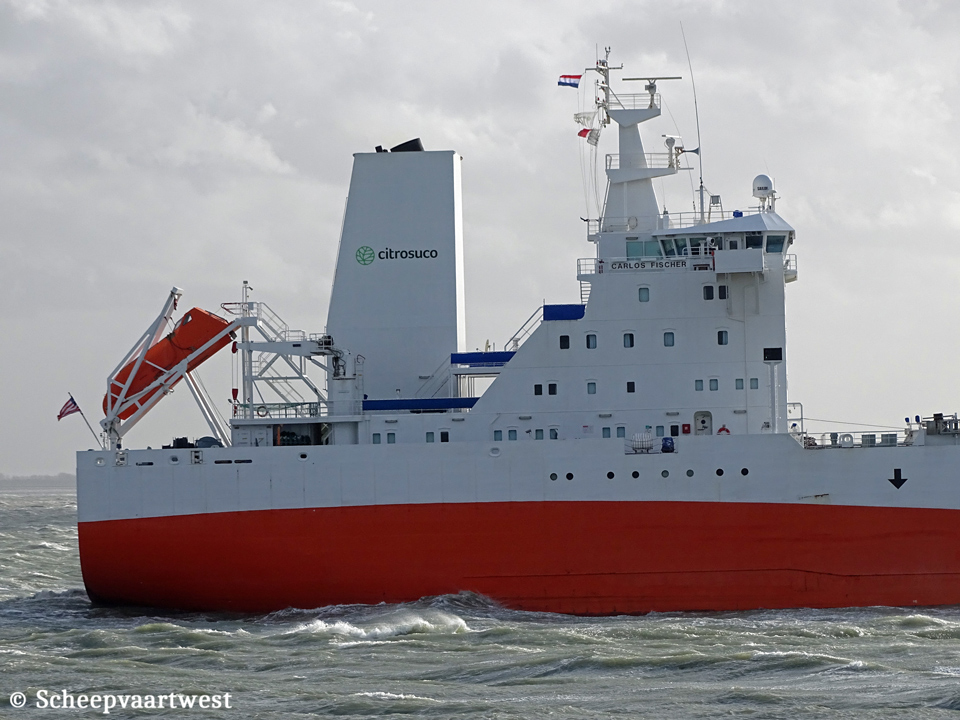

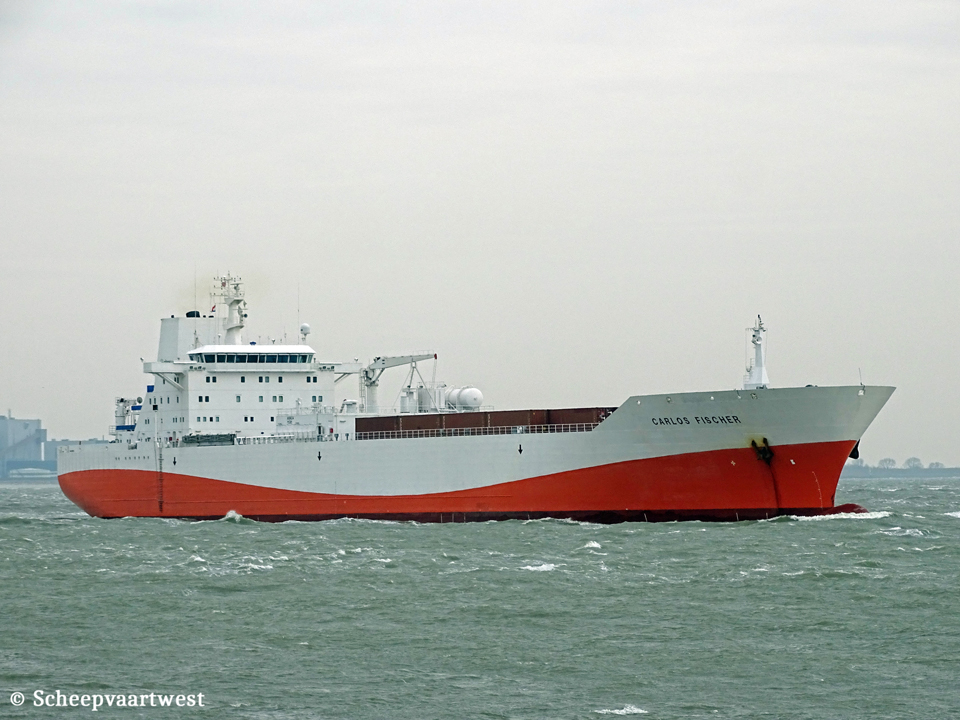

| Zeebrugge 14/02/11 | Westerschelde 09/02/19 | Westerschelde 02/09/19 | Zeebrugge 03/10/22 | Westerschelde 01/03/18 | ||||
|
Name |
CARLOS FISCHER |
|
Type |
Fruit juice tanker - Refrigerated cargo carriage – Equipped for carriage of containers |
|
IMO-number |
9230995 |
|
Call sign |
A8AC4 |
|
Flag |
Liberia |
|
Port of registration |
Monrovia |
|
Previous flags |
2002 - 2002 Republic of Panama |
|
GT |
33.005 t |
|
DWT |
43.067 t |
|
NT |
9.902 t |
|
Number of 20ft containers |
569 |
|
Reefer capacity |
70 |
|
Length |
204,88 m overall 194,25 m between perpendiculars 197,35 m registered |
|
Breadth |
32,20 m over all |
|
Draught |
Summer: 11,40 m Operating: 9,50 m |
|
Keel to mast end |
45,00 m |
|
Forecastle |
21,36 m |
|
Freeboard |
7.814 mm |
|
Depth |
19,20 m moulded |
|
Speed |
20,8 knots |
|
Built |
2002 |
|
Keel |
15/01/2001 |
|
Launch date |
04/05/2001 |
|
Date of completion |
16/04/2002 |
|
Builder casco |
Daewoo Mangalia Heavy Industries Mangalia Romania Yard number: 5001 |
|
Builder completed |
Kleven Florø (fruit juice tanker) N- 6065 Ulsteinvik Norway Yard number 147 |
|
Hull material |
Shipbuilding steel (higher tensile) |
|
Hull type |
Double hull Double bottom, continuous from peak to peak bulkhead |
|
Watertight bulkheads |
6 |
|
Continuous decks |
1 |
|
Main engine |
1x Wärtsilä Sulzer 7RTA84C - 2 stroke single acting 7 cylinder 840 x 2.400 mm combustion engine output 28.350 kW / 38.570 bhp at 102,0 rpm Year of manufacture: 2001 Builder: Wärtsilä Italia S.p.A. Bagnoli della Rosandra, 334 34018 San Dorligo della Valle (Trieste) Italy |
|
Propeller |
1x Kamewa Ulstein controllable pitch propeller - aft Diameter: 7,50 m |
|
Boilers |
1x Steam boiler, oil fired - 9,0 bar Heating surface: 14,8 m² 1x Steam boiler, exhaust gas heated - 9,0 bar Heating surface: 221,0 m² Year of manufacture: 2001 Manufacturer: Aalborg Industries A/S Division Boiler Production Gasvaerksvej 24 9100 Aalborg Kingdom of Denmark |
|
Electric installations |
1x Plant 440/220 V - 4.854 kVA 1x Plant 440 V - 2.500 kVA 1x Plant 440 V - 238 kVA |
|
Shaft generator |
1x AAB - 2.500 kVA / 2.000 KW |
|
Generators |
3x Wärtsilä 8L20 main diesel generatorsets each 1.618 kVA |
|
Emergency generator |
1x Vilvo Penta TAMD 103 A-RC diesel generatorset 238 kVA |
|
Compressed air receivers |
2x Receivers each 3.800 litres - 30,0 bar 1x Receiver 500 litres - 30,0 bar 1x Receiver 2.000 litres - 8,0 bar 1x Receiver 1.000 litres - 8,0 bar |
|
Bow thruster |
1x Transverse thruster Kamewa Ulstein -1.500 kW, forward |
|
Refrigerating |
Temperature of insulated spaces, min.: -10°C Temperature of sea water, max.: 32°C Total capacity of holds: 29.200 m³ Number of holds: 4 Number of insulated holds: 4 Number of separate cooled holds: 4 Maker of refrigerating machinery: York Refrigation A/S Marine Division Christian X's Vej 201 Hoejbjerg Kingdom of Denmark |
|
Compressors |
3x SAB 128 HF |
|
Evaporators / Condensers |
Number of air cooler: 18 Number of brine pump: 3 Number of brine cooler: 2 Number of circulating fan: 64 Number of condenser: 3 Number of cooling Water Pump: 3 Number of liquid receiver: 1 Number of oil separator: 3 Number of refrigerating machinery room fan: 1 Refrigerant: R 717 Kind of cooling: Brine cooling |
|
Cargo tanks |
16 |
|
Juice carrying tanks |
12 |
|
Liquid cargo |
29.120 m³ |
|
Largest cargo tank |
1.820 m³ |
|
Tank temp |
-10°C |
|
Tank capacities |
Ballast: 20.200 m³ Fuel oil:4.684 m³ |
|
Anchor equipment |
3x Anchors weight each 9.300 kg Chain length: 660,00 m |
|
Communications |
GMDSS Area 3 system Sailor Inmarsat C Nera Saturn B Sperry/Sailor VHFs |
|
Lifeboat |
30 person free fall |
|
Crew |
21 |
|
Accommodation |
30 people |
|
Manager |
Citrosuco Europe N.V. Alphonse Sifferlaan 990 9000 Gent Belgium |
|
Owner |
Victoria Shipping International Corporation c/o Maritime Services Aleuropa GmbH Oberhafenstr. 1 20097 Hamburg Federal Republic of Germany |
|
Latest data adjustment |
25 October 2022 |
