| Antwerpen 31 August 2011 |
|
Name |

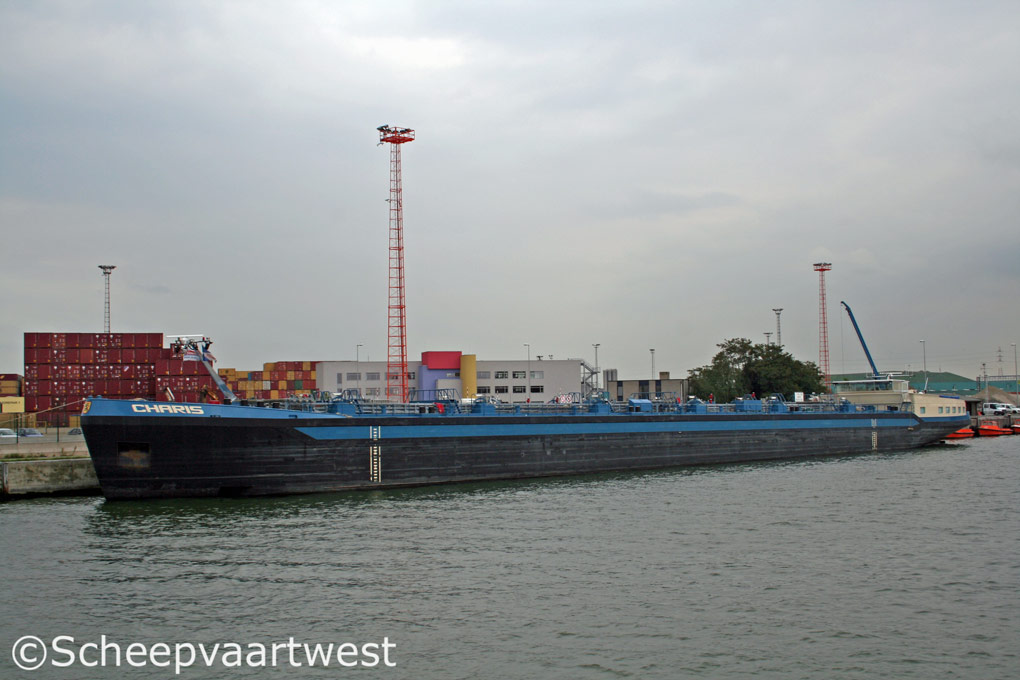

CHARIS |
|
Type |
Inland tanker |
|
ENI-number |
06004102 |
|
Call sign |
OT3647 |
|
Flag |
Belgium |
|
Port of registry |
Gent |
|
GT |
2.290 t |
|
DWT |
3.809 t |
|
Length |
109,86 m overall 106.25 m between perpendiculars |
|
Breadth |
13,50 m |
|
Draught |
3,86 m |
|
Depth |
5,32 m |
|
Built |
2005 |
|
Date of completion |
04.06.2005 |
|
Builder casco |
Astrachan Plant |
|
Builder completion |
De Schroef |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Continuous decks |
1 |
|
Main engine |
1x ABC 8 DZC diesel engine - 1.765 kW / 2.400 hp at 1.000 rpm Built: 2004 Builder: Anglo Belgian Corporation N.V. |
|
Propelling system |
1x Screw propeller solid - at 299 rpm |
|
Gearbox |
ZF Marine gearbox type ZF W18000 C with a reduction 3,005:1 |
|
Electrical installation |
Power voltage: 450 V Lighting voltage: 230 V |
|
Diesel generators |
1x Cummins KTA19 G3 engine with a Marathon 572 RSL 4030 generator - 550 kVA 1x Cummins 6BT 5.9 G6 engine with a Marathon 431 PSL 6202 generator - 110 kVA 1x Cummins 6BT 5.9 G5 engine with a Marathon 362 PSL 1606 generator - 85 kVA |
|
Bow thruster |
1x Cummins - Verhaar Omega type 31130-4k - 534 hp |
|
Number of tanks |
12 |
|
Tank capacity |
4.560 m³ |
|
Cargo handling |
6x Bornemann cargo pumps type W 7.2 ZK 75 |
|
Lifting equipment |
1x Auto Crane with a length of 12,00 m, hydraulically extendible to 17,00 m - SWL 1.500 kg |
|
Owner |
Edmond en Vera De Weirt |
