| Westerschelde 23 December 2017 |
 |
 |
 |
 |
 |
 |
|||||

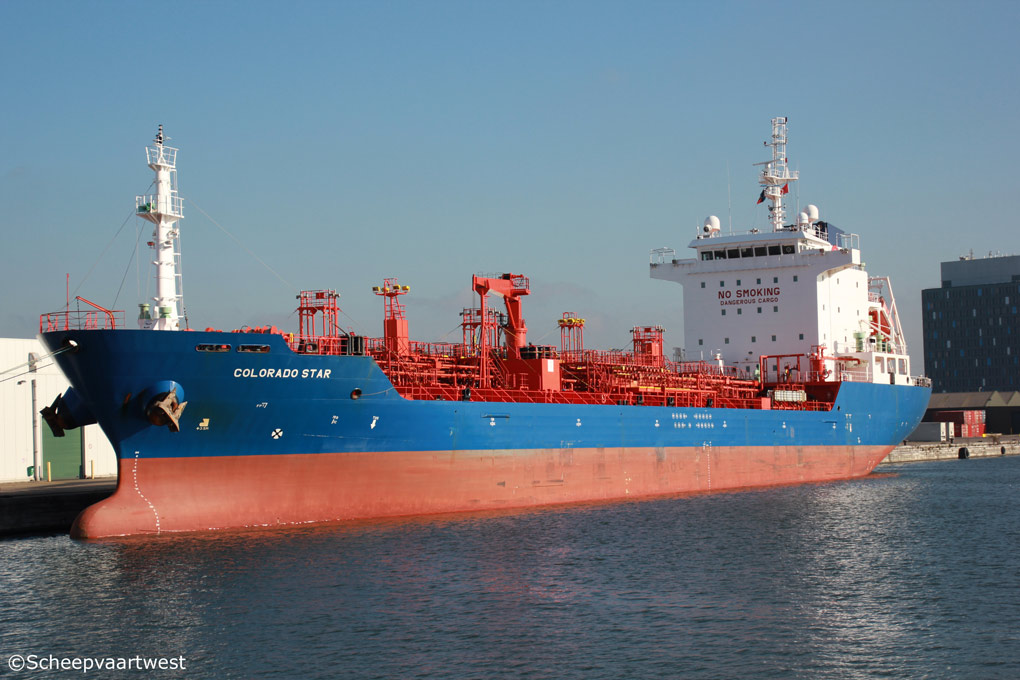

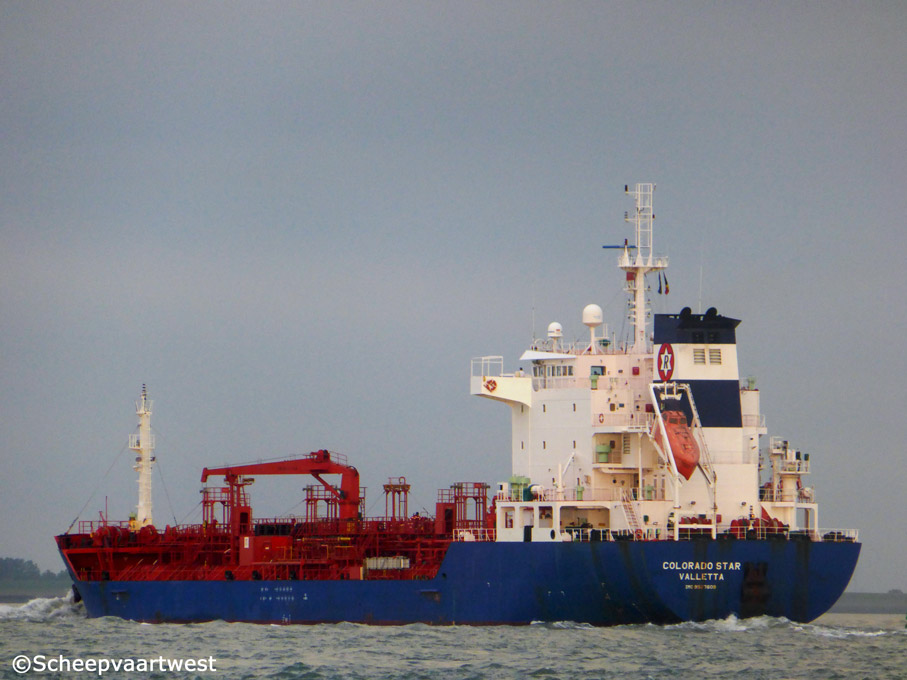

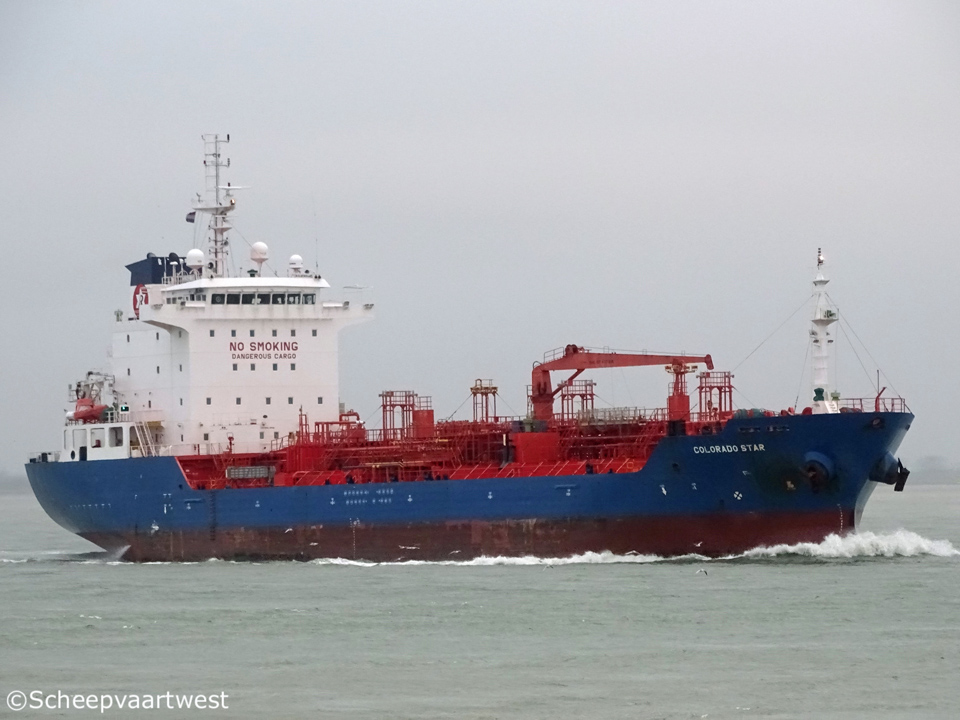

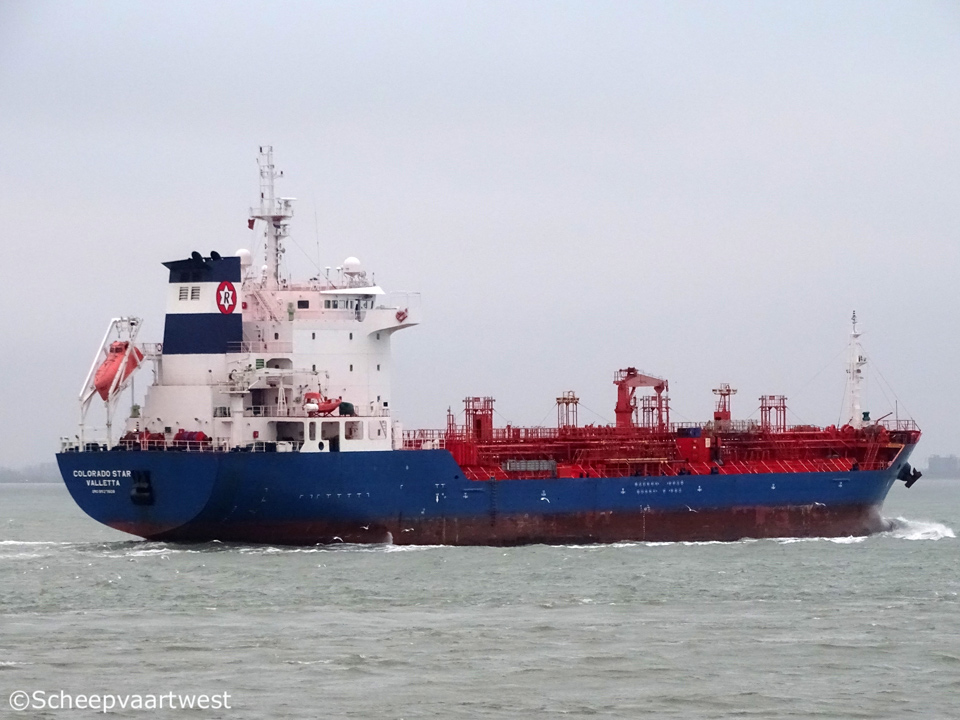

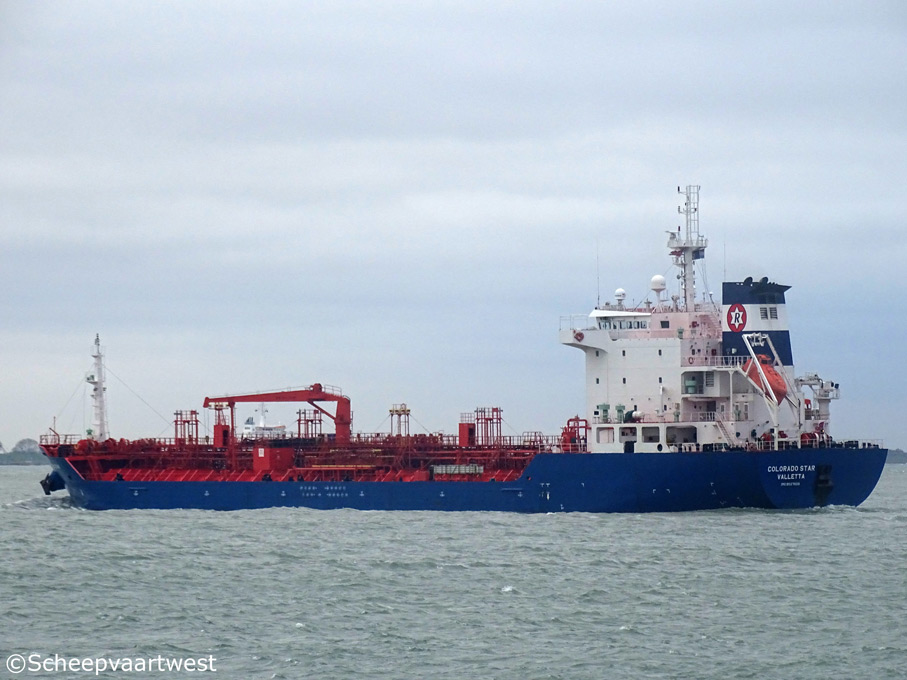

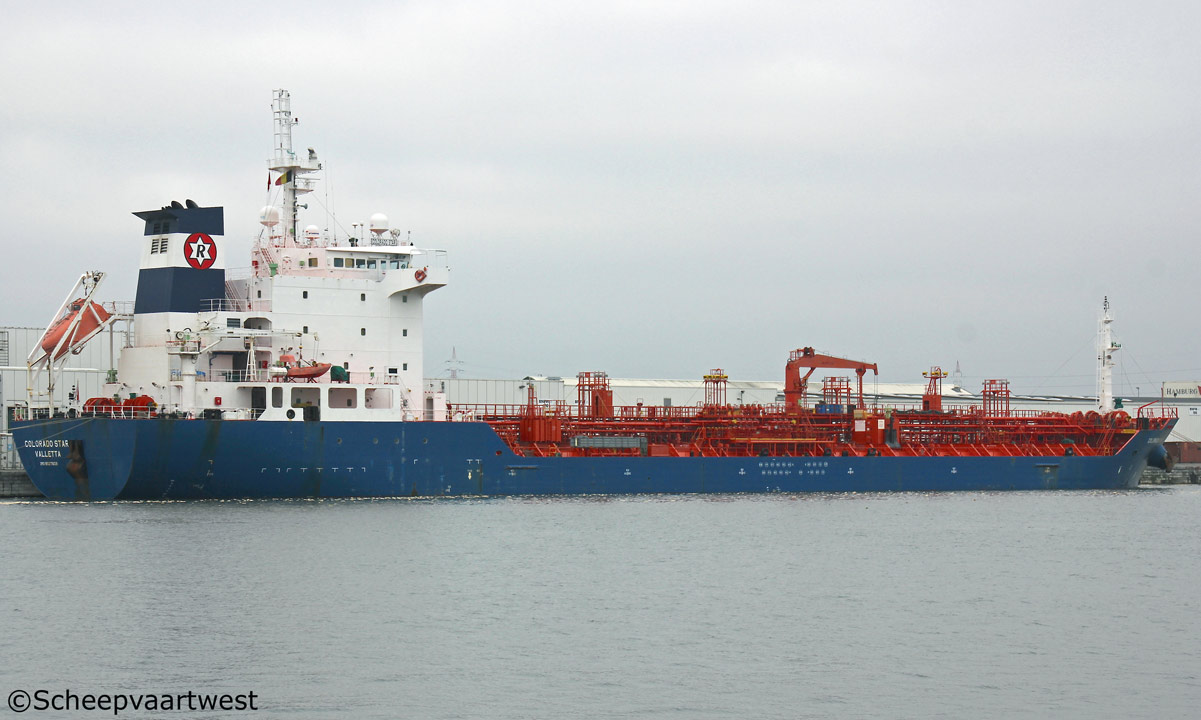

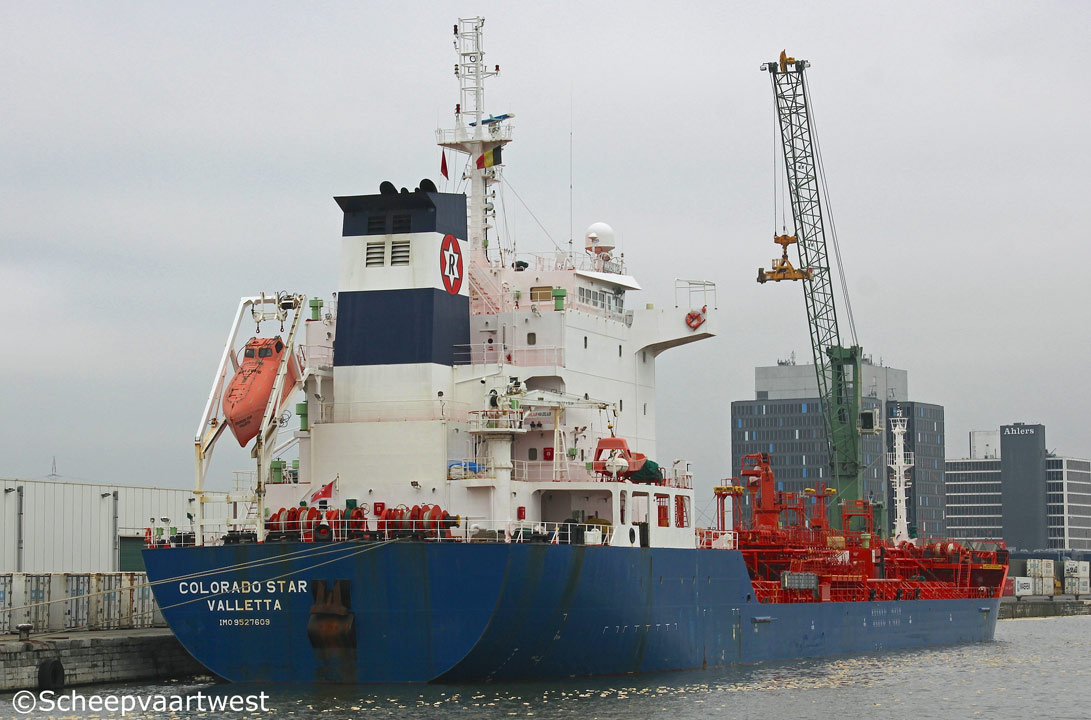

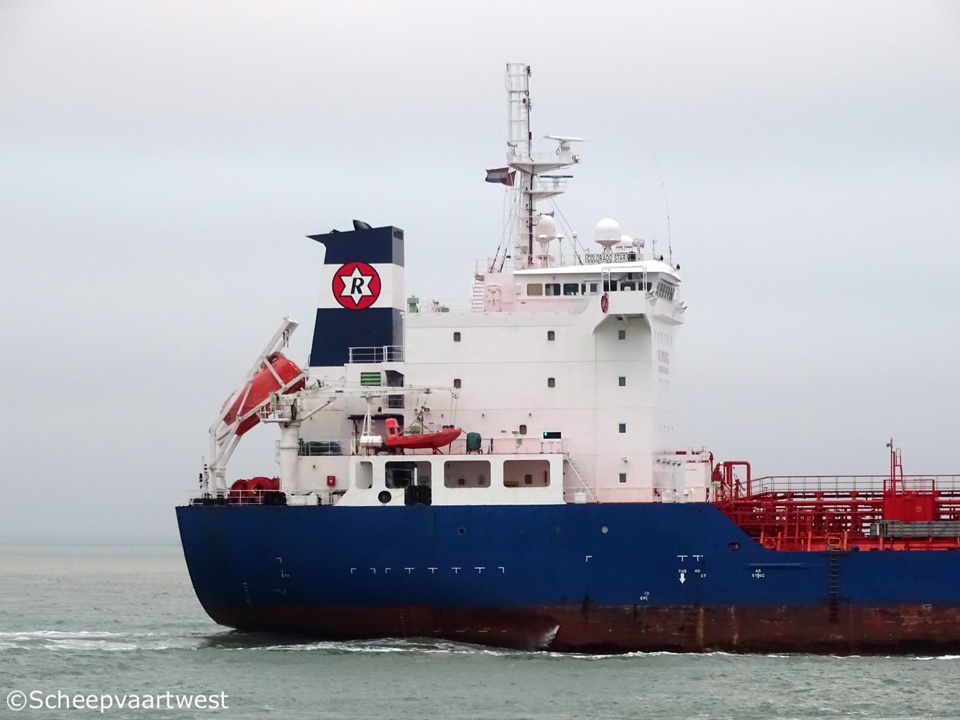

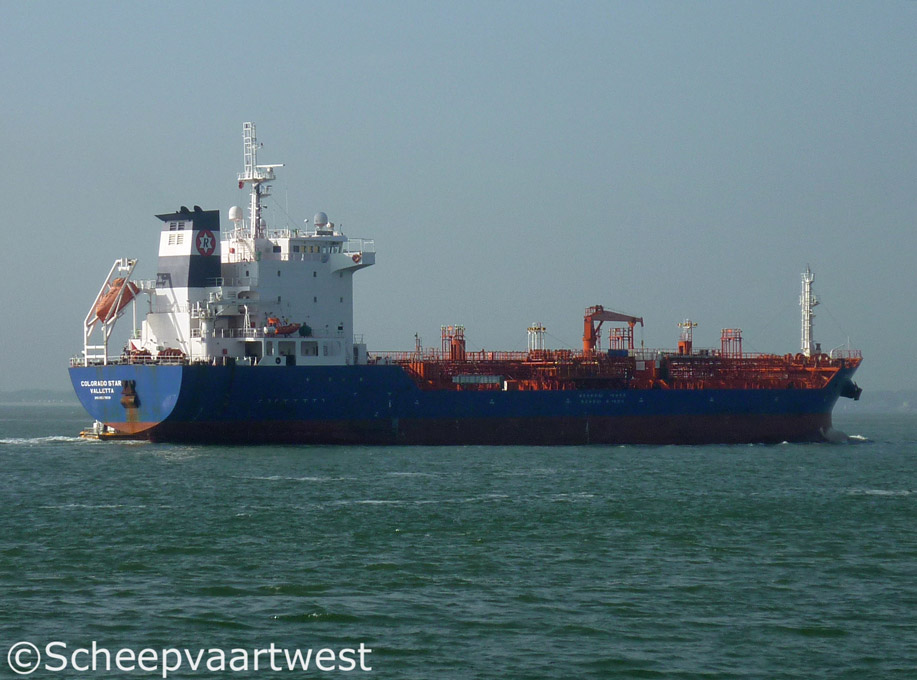

| Westerschelde 23/12/17 | Westerschelde 23/12/17 | Antwerpen 29/10/15 | Westerschelde 23/09/11 | Westerschelde 15/07/14 | Westerschelde 10/11/15 | |||||
 |
 |
 |
 |
|||||||

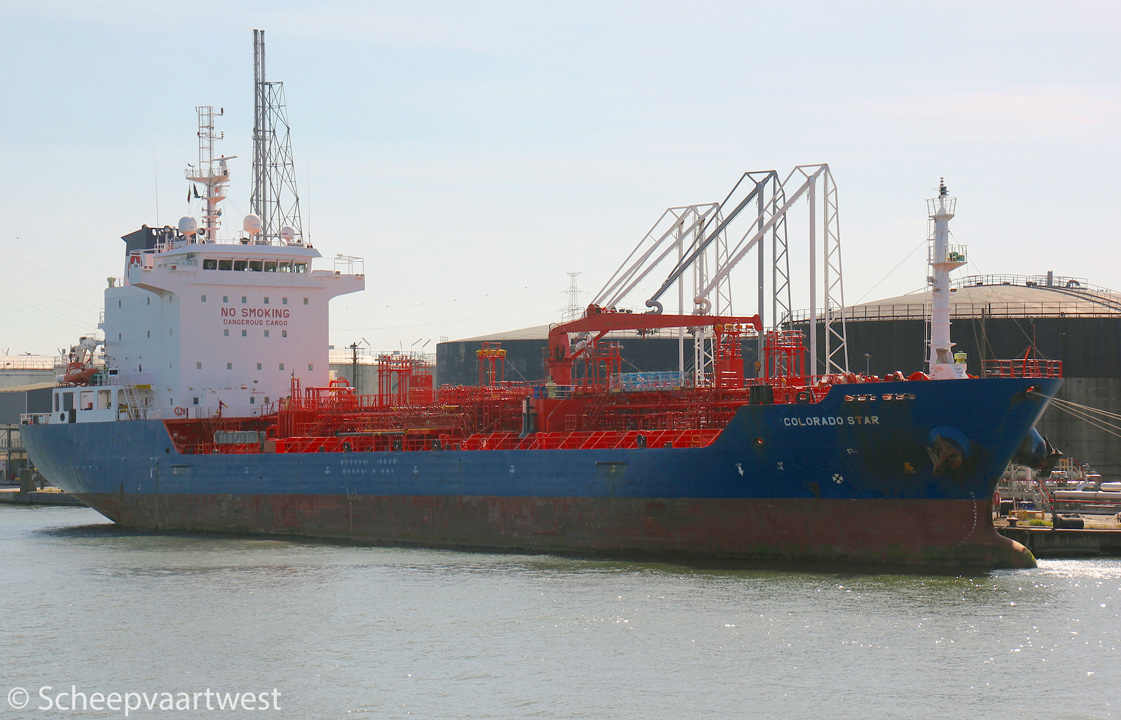

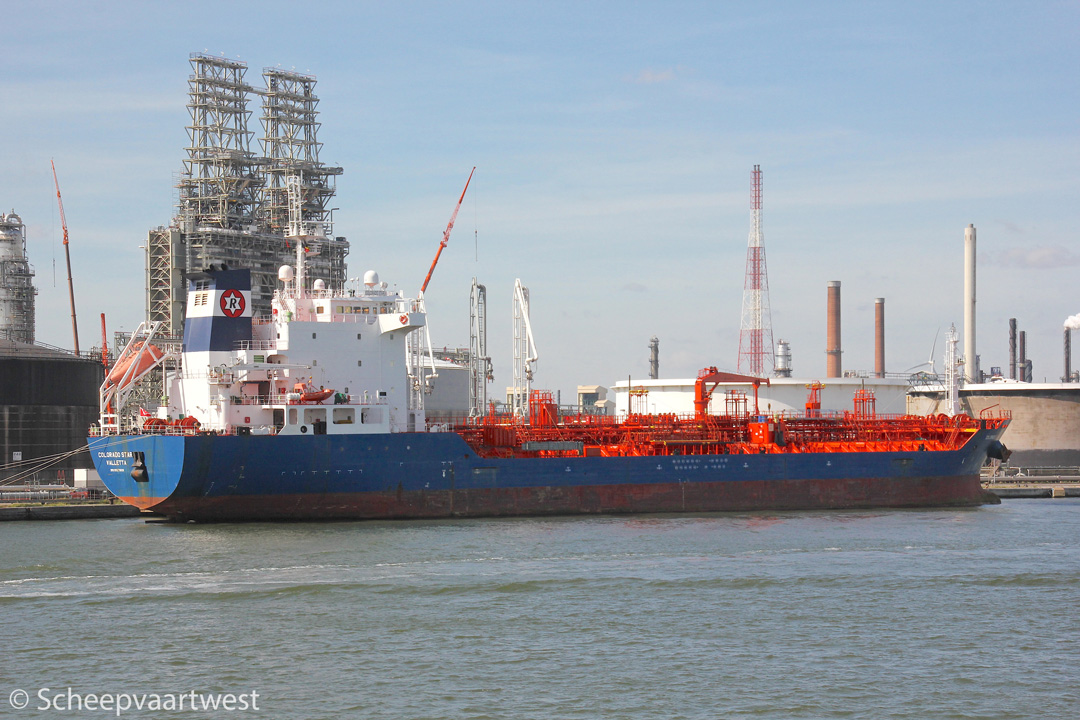

| Antwerpen 31/01/17 | Antwerpen 31/01/17 | Antwerpen 11/09/18 | Antwerpen 11/09/18 | |||||||
|
Name |
COLORADO STAR |
|
Type |
Chemical carrier, Oil carrier |
|
IMO-number |
9527609 |
|
Call sign |
9HA2189 |
|
Flag |
Republic of Malta |
|
Port of registry |
Valletta |
|
GT |
8.537 t Suez: 8.981,84 t |
|
DWT |
Summer: 13.020,60 t |
|
NT |
4.117 t Suez: 6.844,84 t Panama: 7.216 t |
|
Length |
128,60 m overall 120,40 m between perpendiculars |
|
Breadth |
20,40 m moulded |
|
Draught |
8,70 m |
|
Freeboard |
2.812 mm |
|
Depth |
11,50 m moulded |
|
Speed |
13,4 knots |
|
Built |
2010 |
|
Keel laid |
07.04.2009 |
|
Launch date |
14.10.2009 |
|
Gate of completion |
28.04.2010 |
|
Builder |
21St Century Shipbuilding Co., Ltd. |
|
Yard number |
CSN262 |
|
Hull material |
Ordinary strength steel |
|
Hull type |
Double hull |
|
Bulkheads |
Water tight: 11 Oil tight: 8 |
|
Main engine |
1x STX-MAN B&W 6S35MC-MK7 - 6 Cylinder 350 x 1.400 mm diesel engine - output 5.920 kW at 173 rpm Manufacturer: STX Engine Co.,Ltd. |
|
Number of screws |
1x Fixed propeller Manufacturer: Wärtsilä Cme Zhenjiang Propeller Co.,Ltd. |
|
Steam piping system |
1x Fired boiler - 9,0 bar Heating Surface: 78 m² Manufacturer: Aalborg Ind. Ltd. 1x Unfired exhaust gas boiler |
|
Generators |
3xDiesel generatorsets Taiyo FE547A-10 each 600 kW Manufacturer: Taiyo Electric Co.,Ltd. |
|
Bow thruster |
450 kW |
|
Number of cargo tanks |
14 |
|
Cargo oil capacity 98% |
13.916 m³ |
|
Number of segregations |
6 + 1 |
|
Number of pumps
|
12x Pumps Framo Deepwell each 300 m³/h 2x Pumps Framo Deepwell each 100 m³/h |
|
Pumping capacity |
Abt. 1.800 m³/h |
|
Number of tanks |
Ballast: 15 Cargo oil: 14 Lubricating oil: 9 Fuel oil: 9 Fresh water: 5 Diesel oil: 4 Waste water: 2 Chain: 2 Sludge: 2 Organic compound: 1 Chemical: 1 Hydraulic oil: 1 |
|
Tank capacities |
Diesel oil: 76,82 m³ / 66,06 t Freshwater: 429,90 m³ Fuel oil: 645,13 m³ / 632,23 t Hydraulic oil: 5,78 m³ / 5,21 t Lube oil: 88,37 m³ / 79,53 t Tank ballast: 5.457,84 m³ / 5.594,29 t |
|
Tank coating |
Phenolic epoxy |
|
Lifting equipment |
1x Cargo hose handling crane - SWL 10,0 t Manufacturer: A Rim Mach. & Eng. Co. 1x Stern hose and rescue boat handling crane - SWL 2,1 t Manufacturer: A Rim Mach. & Eng. Co. |
|
Manager |
Rigel Schiffahrt GmbH & Co. KG |
|
Owner |
Rigel Bereederungs GMBH & Co. KG |
|
Registered owner |
Colorado Star GmbH & Co KG |
|
Latest data adjustment |
17 February 2017 |
