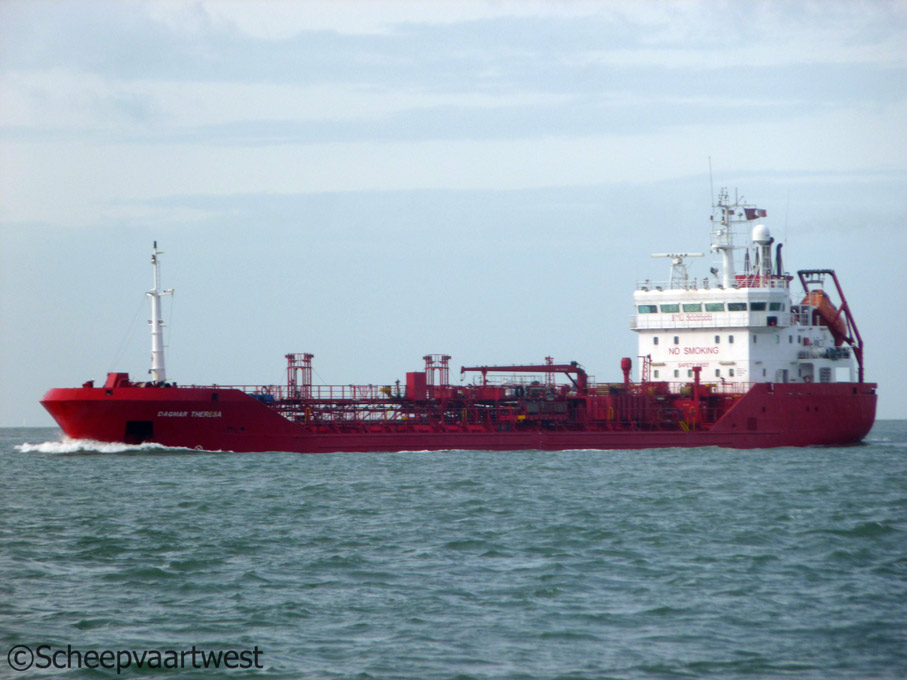

| Westerschelde 02 October 2012 |
 |
 |
|

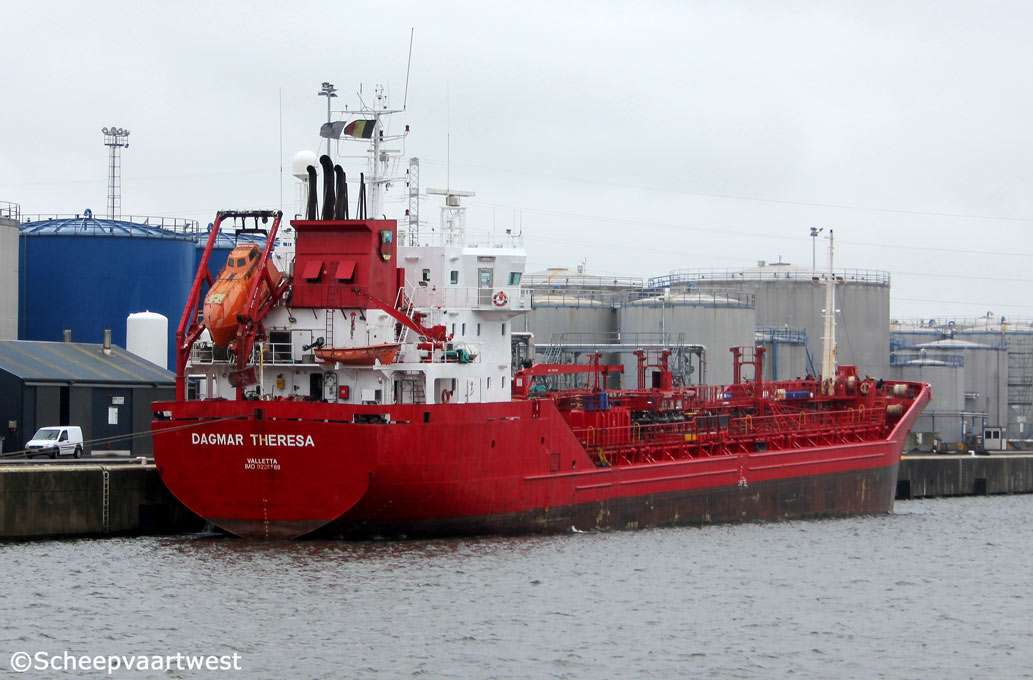

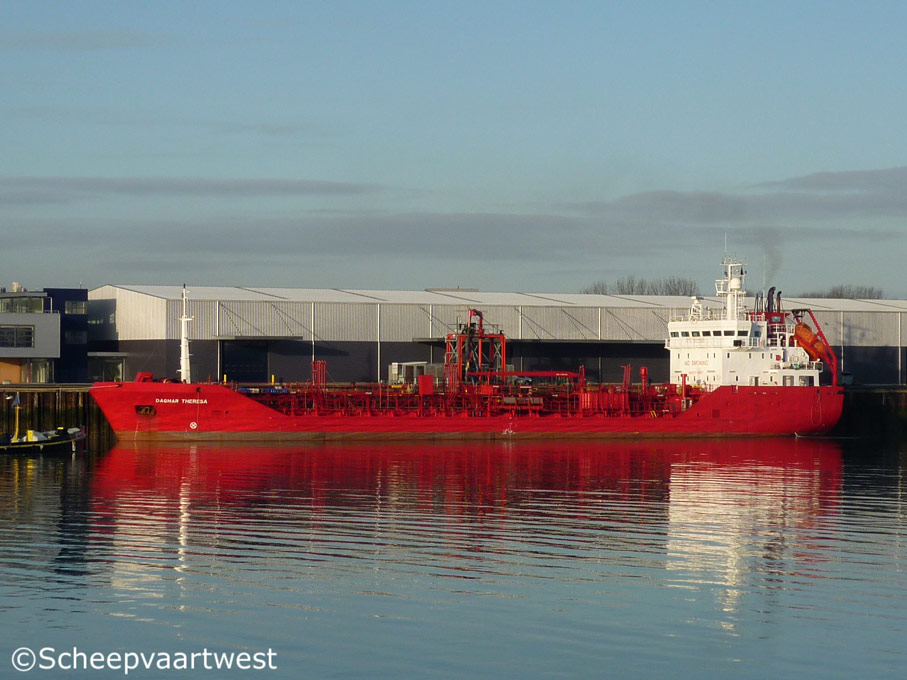

| Vlissingen 15/01/12 | Gent, Belgium 10/05/14 | |
|
Name |
DAGMAR THERESA |
|
Previous names |
2001 - 2002 Lieke Theresa |
|
Type |
Oil / chemical tanker |
|
IMO-number |
9228588 |
|
Call sign |
9HA2338 |
|
Flag |
Malta |
|
Port of registry |
Valletta |
|
GT |
2.654 t |
|
DWT |
Summer: 4.454 t |
|
NT |
1.268 t |
|
Length |
92,27 m overall 86,34 m between perpendiculars |
|
Breadth |
13,60 m |
|
Draft |
6,14 m |
|
Air draft |
21,10 m |
|
Depth |
7,65 m |
|
Speed |
12,5 knots |
|
Built |
2001 |
|
Date of completion |
28.08.2001 |
|
Builder |
RMK Marine Shipyard |
|
Yard number |
46 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x Krupp MAK M26 - 4 stroke 6 cylinder diesel engine - 1.850 kW |
|
Propellers |
1x Controllable pitch |
|
Generators |
2x Main diesel generatorsets each 260 kW |
|
Emergency generator |
1x Diesel generatorset 88 kW |
|
Bow thruster |
1x 240 kW / 336 bhp |
|
Cargo tank capacity 98% |
12x Marine Line coated cargo tanks 4.480 m³ |
|
Separate slop tank |
2x Tanks total 43 m³ |
|
Segregation |
3x grades with separate lines and pumps |
|
Cargo pumps |
3x Screw type pumps |
|
Loading rate |
1.300 t/hour |
|
Discharging rate |
1.000 t/hour |
|
Heating capacity |
About 85°C |
|
Tank cleaning system |
1x Fixed BW machines in each tank - 11m³ at 10,0 bar Two separate cleaning tanks on deck for effective cleaning with smallest possible amount of water |
|
Cargo lines |
3x 8 inch - stainless steel |
|
Vapour system |
1x 6 inch vapour return line |
|
Manifolds |
Manifold to deck: 2,10 m Manifold to platform: 1,50 m Manifold to stern: 43,90 m Manifold to bow: 48,35 m Manifold to rail: 2,90 m |
|
Tank capacities |
Fuel oil: 200 m³ Diesel oil: 80 t Ballast water: 1.627 m³ |
|
Lifting equipment |
1x Crane - SWL 1,0 t at 15,00 m |
|
Manager |
Herning Shipping AS |
|
Operator |
Herning Shipping AS |
|
Owner |
VL Shipping Holding A/S |
