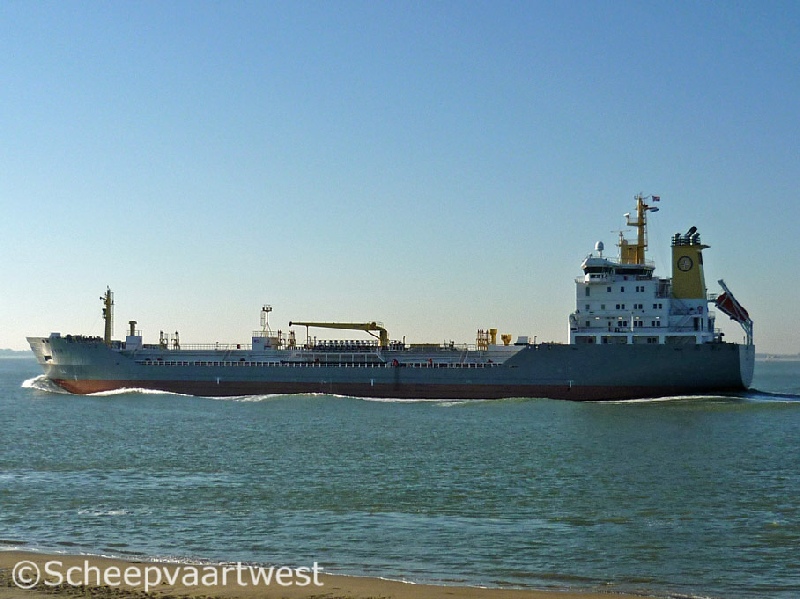

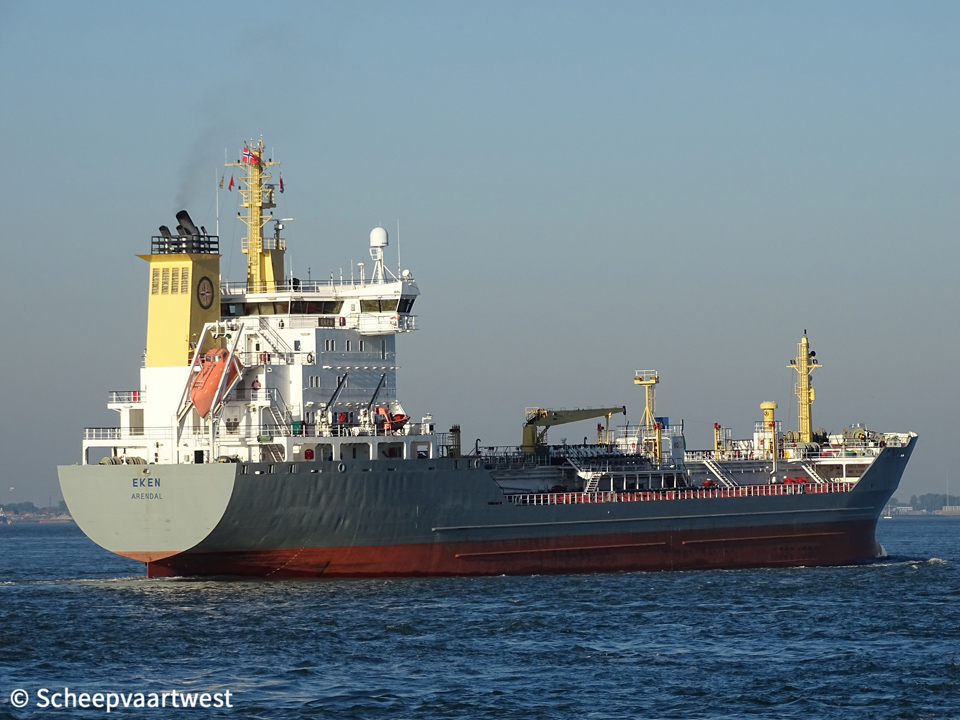

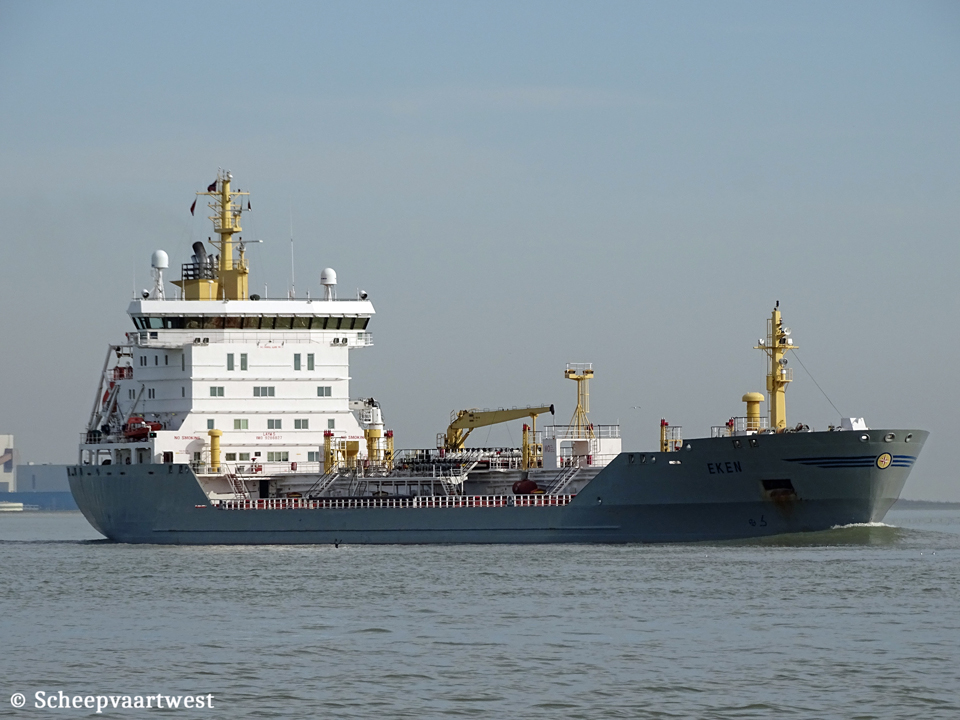

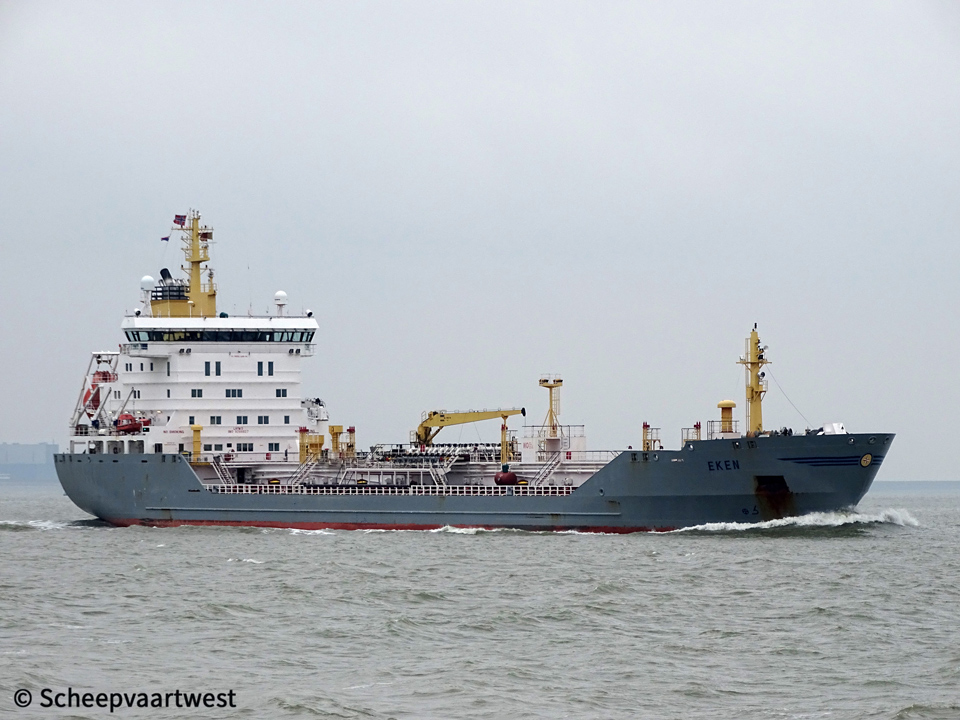

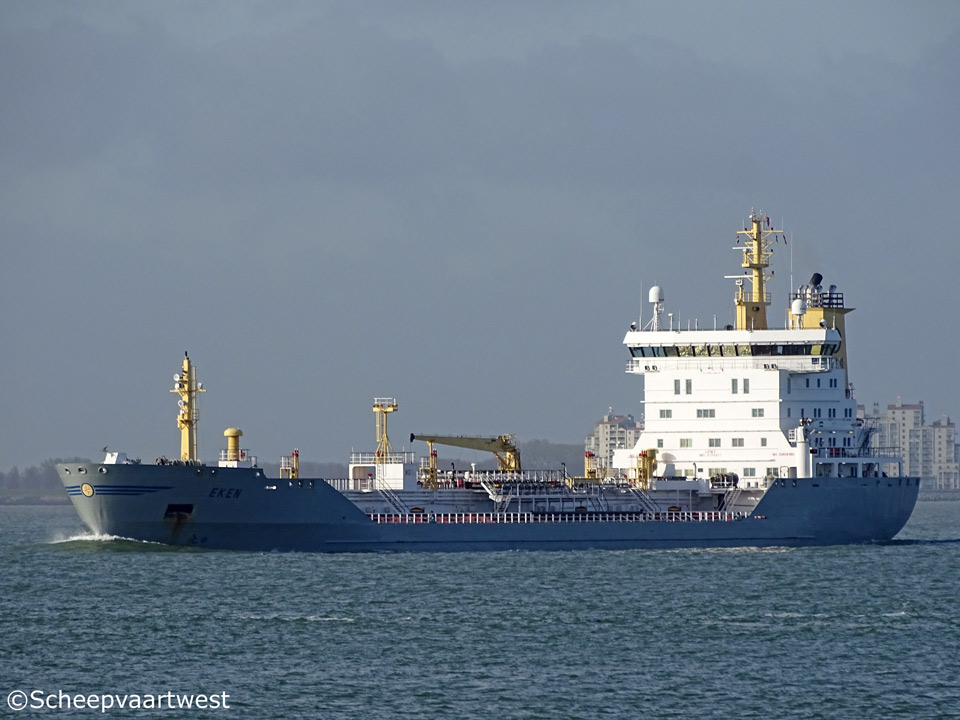

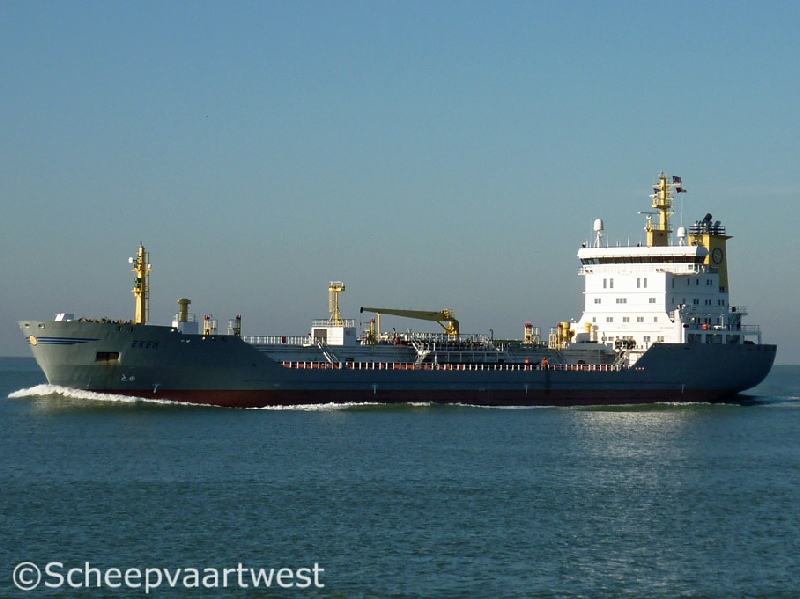

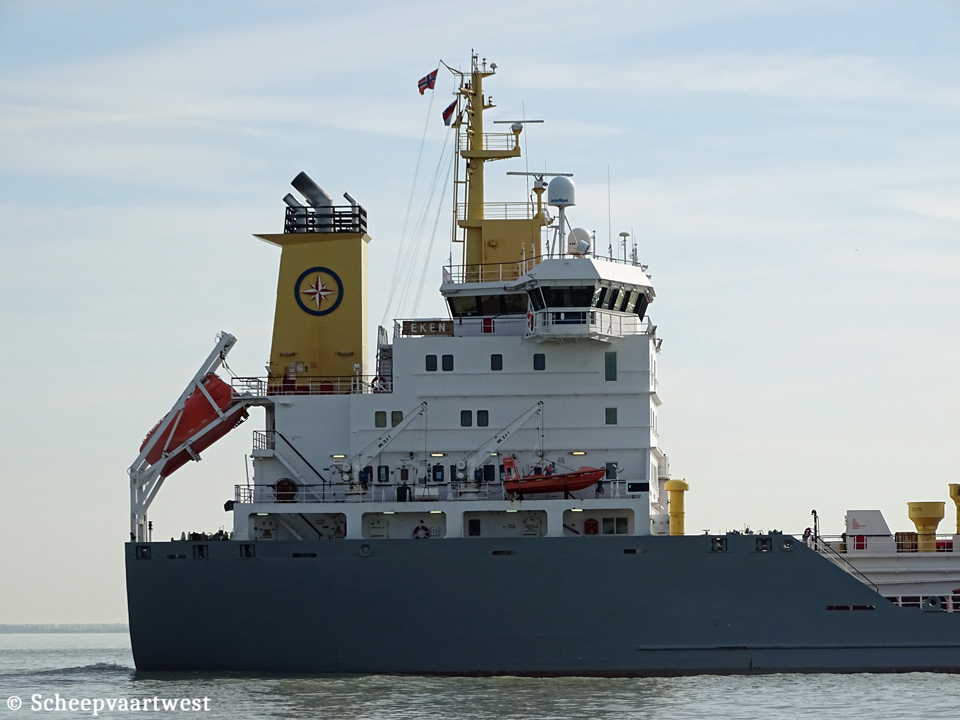

| Westerschelde 12 March 2017 |
 |
 |
 |
 |
 |
 |
|||||
| Westerschelde 12/03/171 | Westerschelde 16/10/11 | Westerschelde 16/10/11 | Westerschelde 05/04/17 | Westerschelde 26/05/17 | Westerschelde 23/03/18 | |||||
|
Name |
EKEN |
|
Type |
Chemical / Oil products tanker |
|
IMO-number |
9286827 |
|
Call sign |
LAYM5 |
|
Flag |
Norway |
|
Port of registry |
Arendal |
|
GT |
8.829 t |
|
DWT |
Summer: 13.702 t Winter: 13.270 t |
|
NT |
4.173 t |
|
Length |
134,71 m overall 127,00 between perpendiculars |
|
Breadth |
20,83 m extreme |
|
Draught |
Max: 8,60 m |
|
Depth upper deck |
11,00 m |
|
Speed |
Service loaded: 13,5 knots Service ballast: 14,5 knots |
|
Built |
2004 |
|
Keel laid |
20/04/2003 |
|
Launch date |
15/09/2003 |
|
Date of completion |
28/04/2004 |
|
Builder |
Jiangnan Shipyard (Group) Co., Ltd. Feng Chan Village, Chang Xing Town Chongmin County Shanghai China |
|
Yard number |
H2295 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Number of decks |
1 |
|
Main engine |
1x MAN 6S42MC - 6 cylinder combustion engine 5.300 kW at 120,0 rpm Builder: MAN Diesel & Turbo - Sweden |
|
Propeller |
1x Controllable pitch - aft at 120 rpm Diameter: 4,9 m |
|
Boilers |
1x Thermal oil heater, exhaust heated - 470 kW 2x Thermal oil heater, oil fired each 2.900 kW |
|
Generators |
4x Man 5L16/24 diesel generatorsets each 500 kW at 1.200 rpm - 60 Hertz Builder: MAN Diesel & Turbo - Sweden |
|
Emergency generator |
1x Volvo TAMD74 diesel generatorset |
|
Bow thruster |
1x 580 kW |
|
Number of tanks |
12 cargo tanks and 2 slop tanks, with one deepwell pump (hydraulic driven) in each tank |
|
Cargo tank capacity 98% |
14.434 m³ |
|
Number of slop tanks |
2 |
|
Slop tank capacity |
170 m³ |
|
Cargo pumps |
12x 330 m³/h each |
|
Slop tank pumps |
2x 120 m³/h at each |
|
Ballast pumps |
2x 500 m³/h at each |
|
Cargo discharge capacity |
abt. 1.980 m³/h |
|
Manifolder flanges |
8x Connection each side 2x 12” and 6x 10” |
|
Vapour return flanges |
2x 8” each side |
|
Tank capacities |
HFO: 470 m³ Diesel oil: 89 m³ Fresh water: 110 m³ Water ballast: 5.451,5 m³ |
|
Lifting equipment |
1x Deck crane - SWL 5,0 t at 18,00 m |
|
Manager |
OSM Ship Management AS Svinoddvn 12 4836 Arendal Norway |
|
Previous manager |
2004 - 2006 Ektank AB Stora Badhusgatan 18-20 40317 Gothenburg Sweden |
|
Owner |
Turus Shipping Limited First Floor, Millennium House Victoria Road Douglas Im2 4RW Isle Of Man |
|
Sister ships |
2003 Ekfors |
|
Latest data adjustment |
23 May 2020 |
