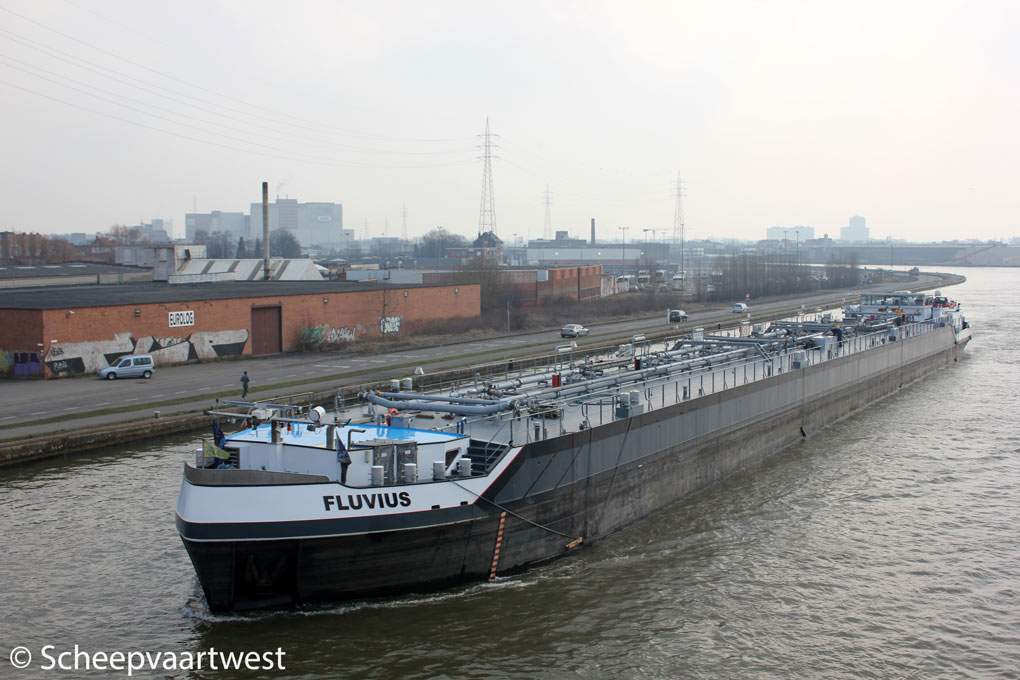

Fluvius ENI 02326743 01
Antwerpen 29 March 2013

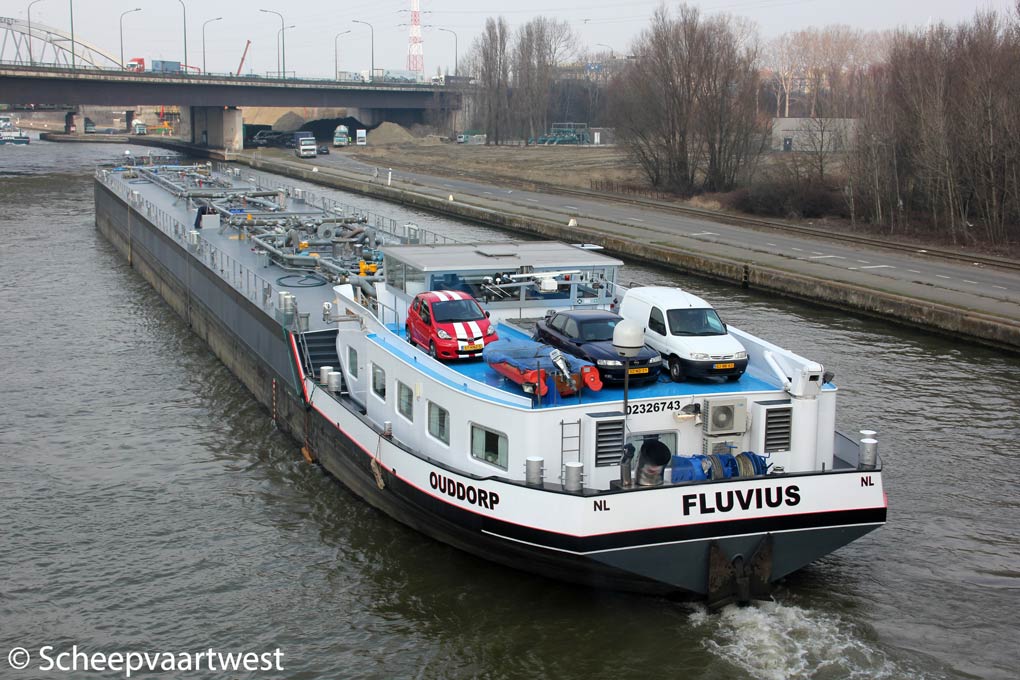

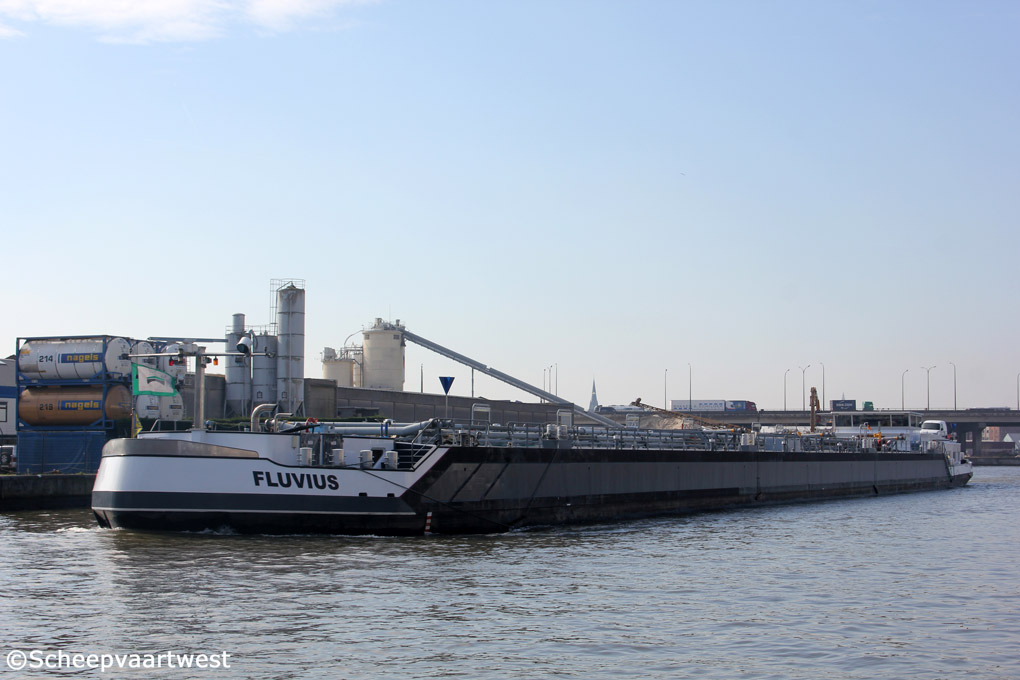

Fluvius ENI 02326743 02   Fluvius ENI 02326743 03
Antwerpen 29/03/13 Antwerpen 06/03/14


Name

FLUVIUS

Previous names

2004 - 2008 Manus

2008 Fluvius

Type

Inland tanker

ENI-number

02326743

Call sign

PH8951

Flag

The Netherlands

Port of registry

Ouddorp

Tonnage

2.657 t

Length

109,87 m

Breadth

11,04 m overall

Draught

3,35 m

Depth

5,15 m

Built

2004

Keel laid

26.02.2004

Launch date

21.05.2004

Date of completion

18.10.2004

Builder casco

Centromost Stocznia Rzeczna (Centromost River Shipyard)
Plock
Poland

Builder completion

Scheepswerf Gelria B.V
Handelsweg 75
6541 CS Nijmegen
The Netherlands

Yard number

B2/031

Hull material

Shipbuilding steel (standard)

Hull type

Double hull - Double bottom

Watertight bulkheads

13

Continuous decks

1

Main engine

1x ABC 6 MDZC-C 930 - 4 stroke 6 cylinder 256 x 310 mm diesel engine - 1.650 hp / 1.213 kW at 930 rpm

Transmission: Main propulsion acts through gear on the propellershaft

Starter type: Compressed air direct

Year of Manufacture: 2004
Manufacturer: Anglo Belgian Corporation N.V.

Wiedauwkaai 43
9000 Gent
Belgium

Propellers

1x Solid propeller, aft at 312 rpm

5 Blades Cunial propeller - with nozzle
Diameter: 1.750 mm

Gearbox

1x ZF Marine ZF W12000C - reduction 2,982:1

Electric installations

1x Plant 400/220 V - 63,5 kVA

1x Plant 400/220 V - 81,5 kVA

1x Plant 440/220 V - 625 kVA

Generators

1x Cummins KTA 19G3 diesel engine - 463 kW at 1.800 rpm coupled with Stamford generator HCM 534E - 625 kVA

1x Cummins 6BT5.9G5 diesel engine - 78 kW at 1.500 rpm coupled with Stamford UCM 274C - 81,5 kVA

1x Cummins 4BT3.9G4 diesel engine - 59 kW at 1.500 rpm coupled with Stamford generator UCM 224F - 63,5 kVA

Compressed air receivers

2x Receivers each 125 litres - 30,0 bar

Bow thruster

1x Cummins - van Tiem type 4K-1200

Tank capacity

3.326 m³

Lifting equipment

1x Hydraulic car crane - SWL 1.800 kg at 18,00 m

Owner

2008 Fluvius Shipping CV
Ouddorp
The Netherlands

Registered owner

Fluvius Shipping C.V.
Braamstove 1
3253 Ouddorp
The Netherlands

Previous names & owners

2004 Manus - Vof. Gradussen - Reijnen, Druten - The Netherlands

Last update

13.04.2013
