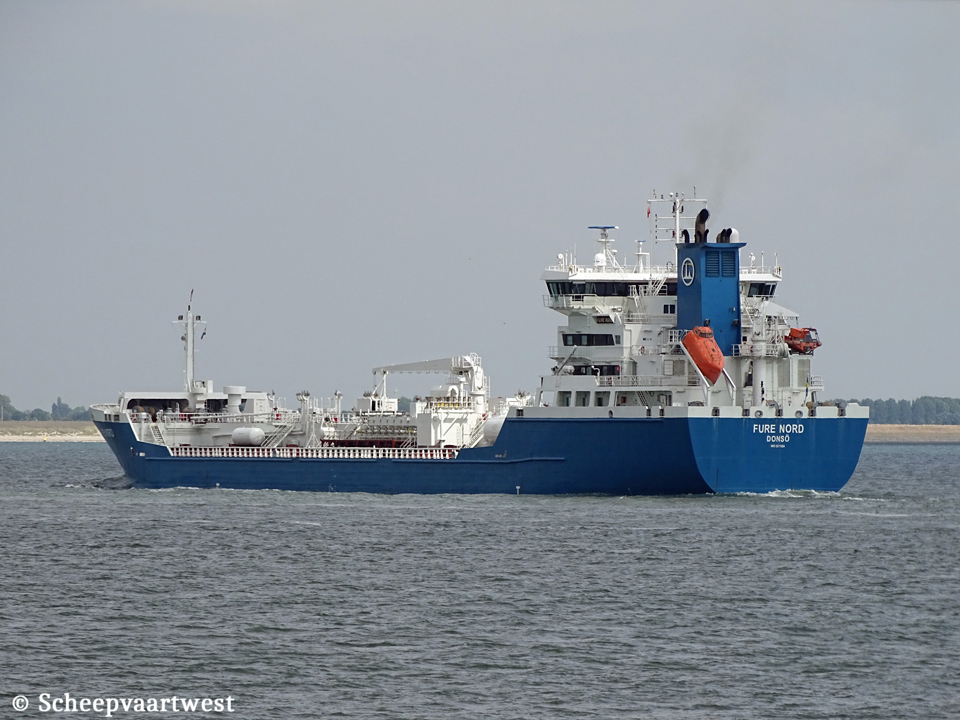

Westerschelde 27 June 2019 |
 |
 |
 |
 |
 |
 |
||||

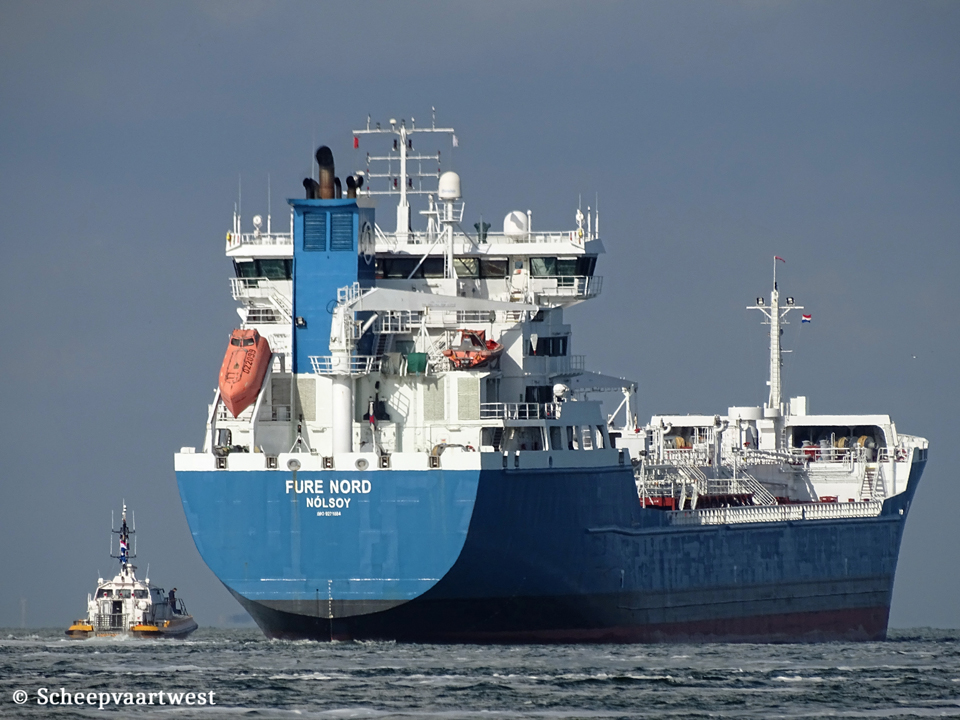

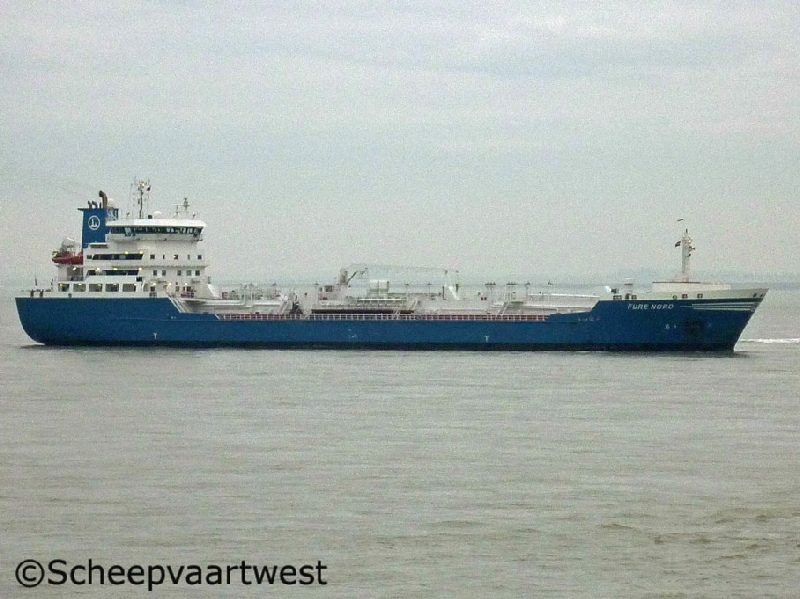

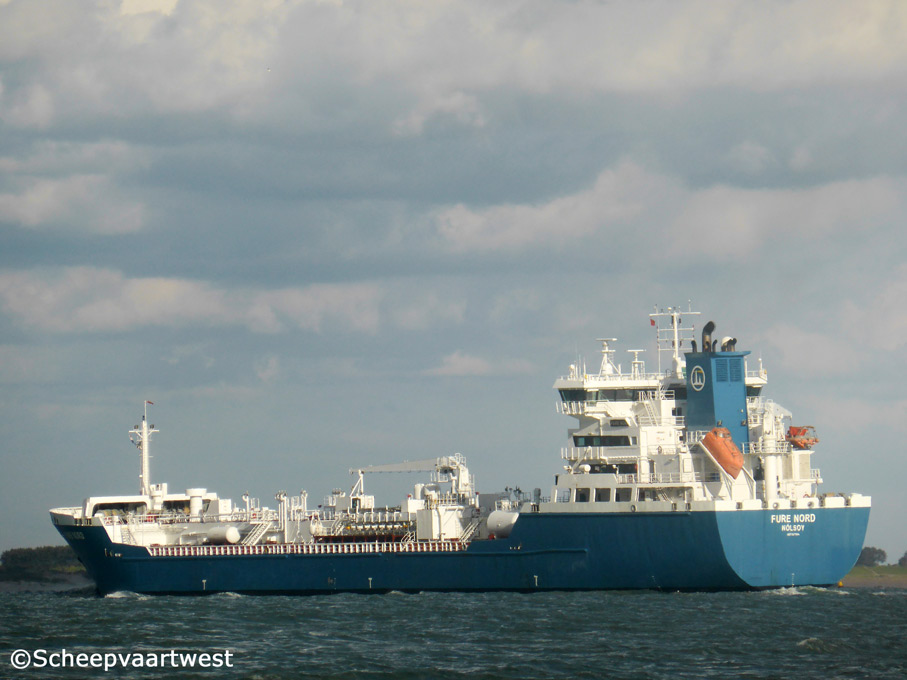

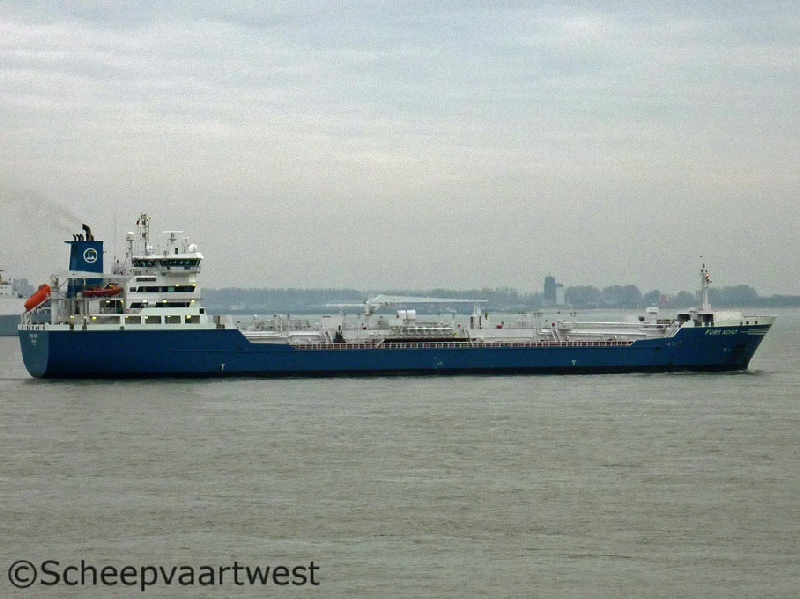

| Westerschelde 29/10/11 | Westerschelde 29/10/11 | Westerschelde 19/08/14 | Westerschelde 18/11/20 | Antwerpen 24/04/13 | Antwerpen 26/05/16 | ||||
 |
 |
 |
|||||||

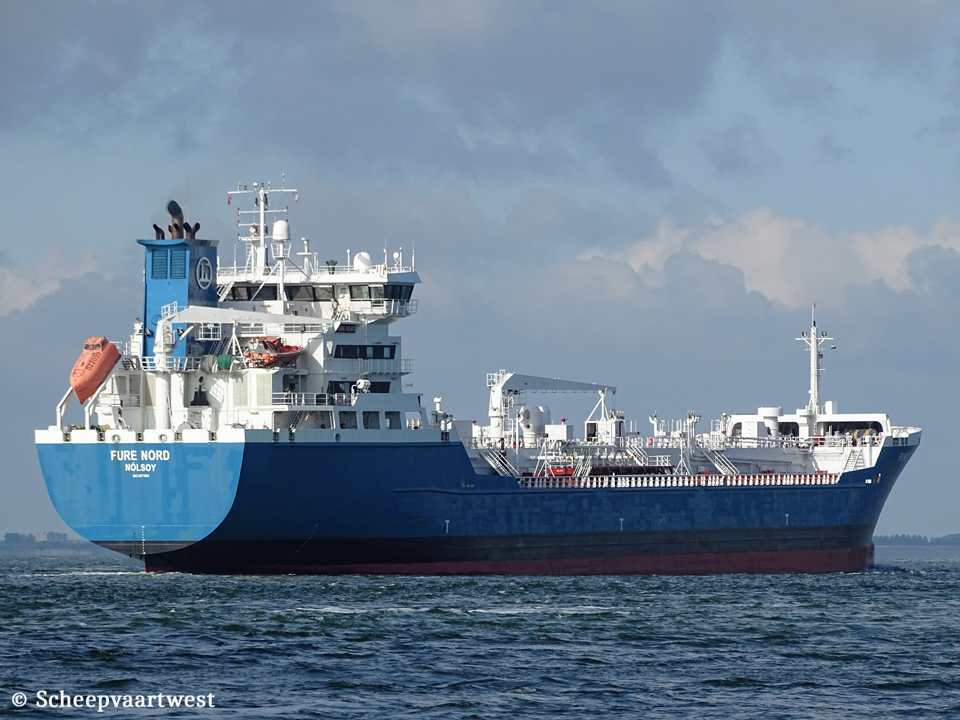

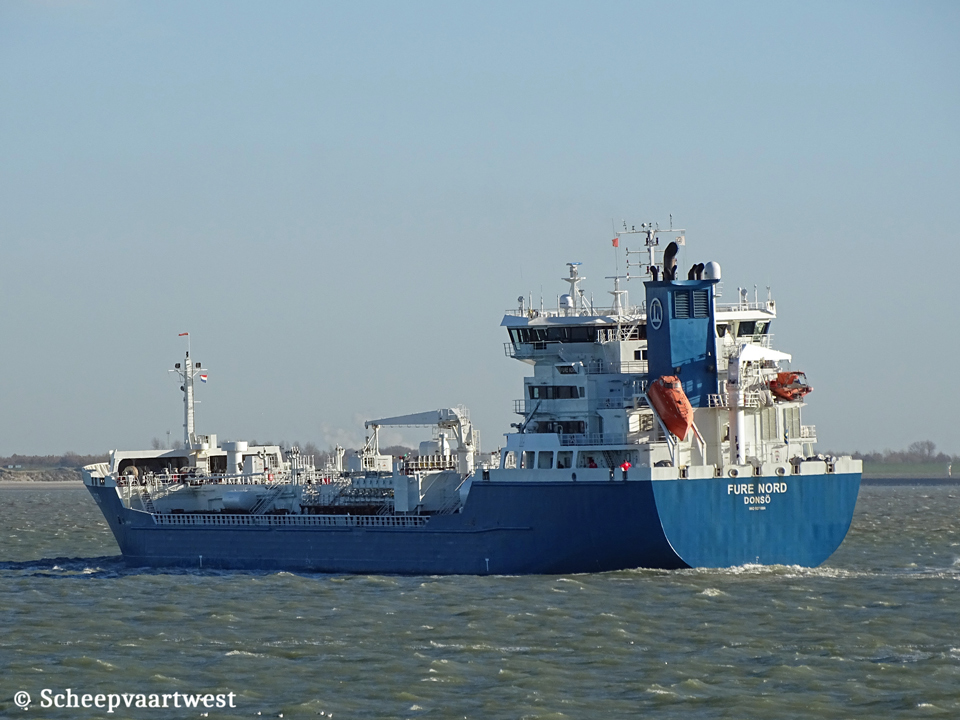

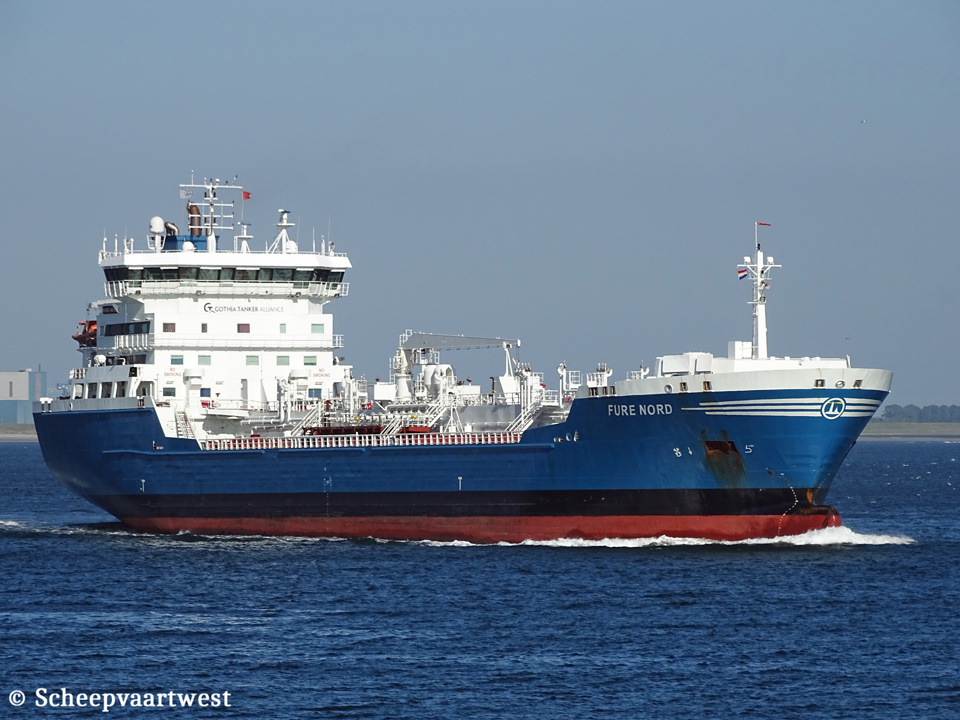

| Westerschelde 16/07/19 | Westerschelde 20/05/17 | Westerschelde 20/05/17 | |||||||
|
Name |
FURE NORD |
|
Type |
Chemical / Oil products tanker |
|
IMO-number |
9271884 |
|
Call sign |
SJKD |
|
Flag |
Sweden |
|
Port of registry |
Donsö |
|
Previous flag |
Faeroe Islands, Nòlsoy- Call sign: OZ2099 |
|
GT |
11.548 t |
|
DWT |
Summer: 17.653 t |
|
NT |
5.553 t |
|
Length |
144,00 m overall 135,75 m between perpendiculars |
|
Breadth |
21,50 m |
|
Draught |
Summer: 9,57 m |
|
Freeboard |
1.753 mm |
|
Depth |
12,50 m moulded |
|
Speed |
15,4 knots |
|
Built |
2004 |
|
Date of completion |
27/09/2004 |
|
Builder |
Edward Shipyard Co. Shanghai China |
|
Yard number |
H129 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Watertight compartments |
11 |
|
Continuous decks |
1 |
|
Main engine |
1x Caterpillar 7M46DF - 4 Stroke 7 cylinder 430 x 610 mm combustion engine 6.190 kW / 8.410 hp at 500 rpm Built: 2002 Builder: Caterpillar Motoren Rostock GmbH, Rostock - Germany |
|
Electrical propulsion gen. |
1x 1.000 kW - 440 Volt |
|
Propelling system |
1x Screw propeller controllable pitch - aft at 118 rpm |
|
Boilers |
2x CHO Gesab 121,70 m² - 10,0 bar 1x CHR 175,00 m² - 10,0 bar |
|
Electrical installation |
Power voltage: 440 V Lighting voltage: 220 V Frequency: 60 Hz |
|
Generators |
3x Main diesel generatorsets each 925 kVA - 740 kW - 1.125 hp |
|
Emergency generator |
1x Diesel generatorset 269 kVA - 215 kW - 380 hp |
|
Bow thruster |
1x 850 kW |
|
Number of tanks |
12 |
|
Total cap. of tanks 98% |
18.826,61 m³ |
|
Number of slop tanks |
2 |
|
Pumps |
12x Cargo pumps each 350 m³/h 2x Slop pumps each 125 m³/h 2x Ballast pump each 500 m³/h |
|
Discharge capacity |
2.500 m³/h |
|
Crew |
13 |
|
Tank capacities |
Heavy fuel oil: 698 m³ Diesel oil: 114 m³ Water ballast: 7.032 m³ |
|
Technical manager |
Furetank Rederi AB Donsö Sweden |
|
Registered owner |
Furetank Rederi AB Korsholmebacke 1 SE-430 82 Donsö Sweden |
|
Latest data adjustment |
30 January 2021 |
