| Rhodos, Greece 18 September 2011 |
|
Name |

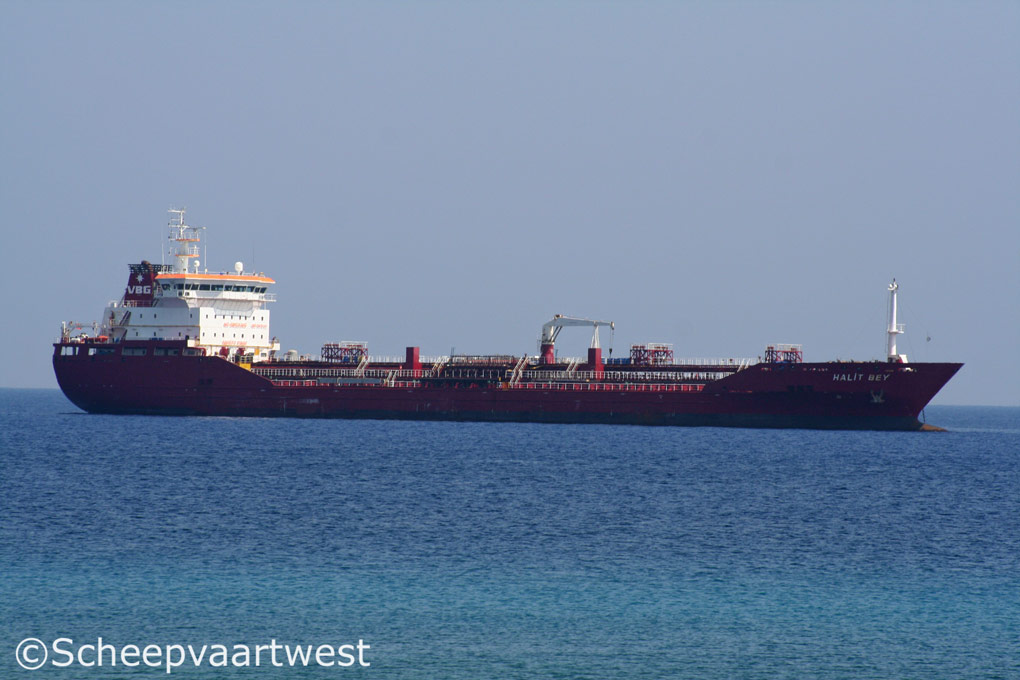

HALIT BEY |
|
Type |
Oil tanker / Chemical tanker |
|
IMO-number |
9410143 |
|
Call sign |
TCTP8 |
|
Flag |
Republic of Turkey |
|
Port of registry |
Istanbul |
|
GT |
12.619 t registered Suez: 14.084,5 t |
|
DWT |
20.000 t |
|
NT |
6.766 t registered Panama: 10.604 t Suez: 12.290,6 t |
|
Length |
161,65 m overall 151,30 m between perpendiculars |
|
Breadth |
22,40 m moulded |
|
Freeboard |
3.313 mm |
|
Depth |
12,80 m moulded |
|
Built |
2009 |
|
Keel laid |
09.02.2008 |
|
Delivery |
21.05.2009 |
|
Builder |
Turker Gemi Yapim San.VE TIC. A.S. |
|
Yard number |
11 |
|
Hull material |
Ordinary strength & High strength steel |
|
Hull type |
Double hull |
|
Bulkheads |
Non tight: 2 Water tight: 34 Gas tight: 1 Oil tight: 42 |
|
Main engine |
1x Man B&W 6L 48/60 B - 6 cylinder 480 x 600 mm diesel engine - 6.300 kW at 500 rpm Manufacturer name: MAN B&W Diesel |
|
Propeller |
1x Controllable pitch propeller |
|
Shaft generator |
1x AEM SE450L4 - 1.200 kW |
|
Generators |
1x Diesel generatorset 750 KW 1x Diesel generatorset 500 kW Manufacturer name: HHI Electro Electrics |
|
Cargo oil tanks |
22 |
|
Cargo oil capacity |
23.592,42 m³ / 36.159,16 t |
|
Number of tanks |
Ballast: 20 Fuel oil: 10 Diesel oil: 4 Waste water: 3 Sludge: 3 Chain: 2 Lubricating oil: 2 Fresh water: 2 Thermal oil: 2 Organic compound: 1 |
|
Tank capacities |
Diesel oil: 63,29 m³ / 62,02 t Fresh water: 326,74 m³ Fuel oil: 940,99 m³ / 922,17 t Lube oil: 31,35 m³ / 28,21 t Tank ballast: 8696,80 m³ / 8914,22 t |
|
Lifting equipment |
1x Gurdesan hose handling crane GD-HK 100/18 - SWL 10,0 t 1x Gurdesan rescue boat / Life raft & Hose handling crane - SWL 2,0 t |
|
Operator |
VBG Denizcilik Sanayi Ticaret A.S. |
|
Registered Owner |
VBG Denizcilik Sanayi Ticaret A.S. |
